Installing Below Deck Unit (BDU)
6.5.3 Connecting Power to ACU
Connect the power cord from the power supply to the power connector (100~240 VAC) of ACU.

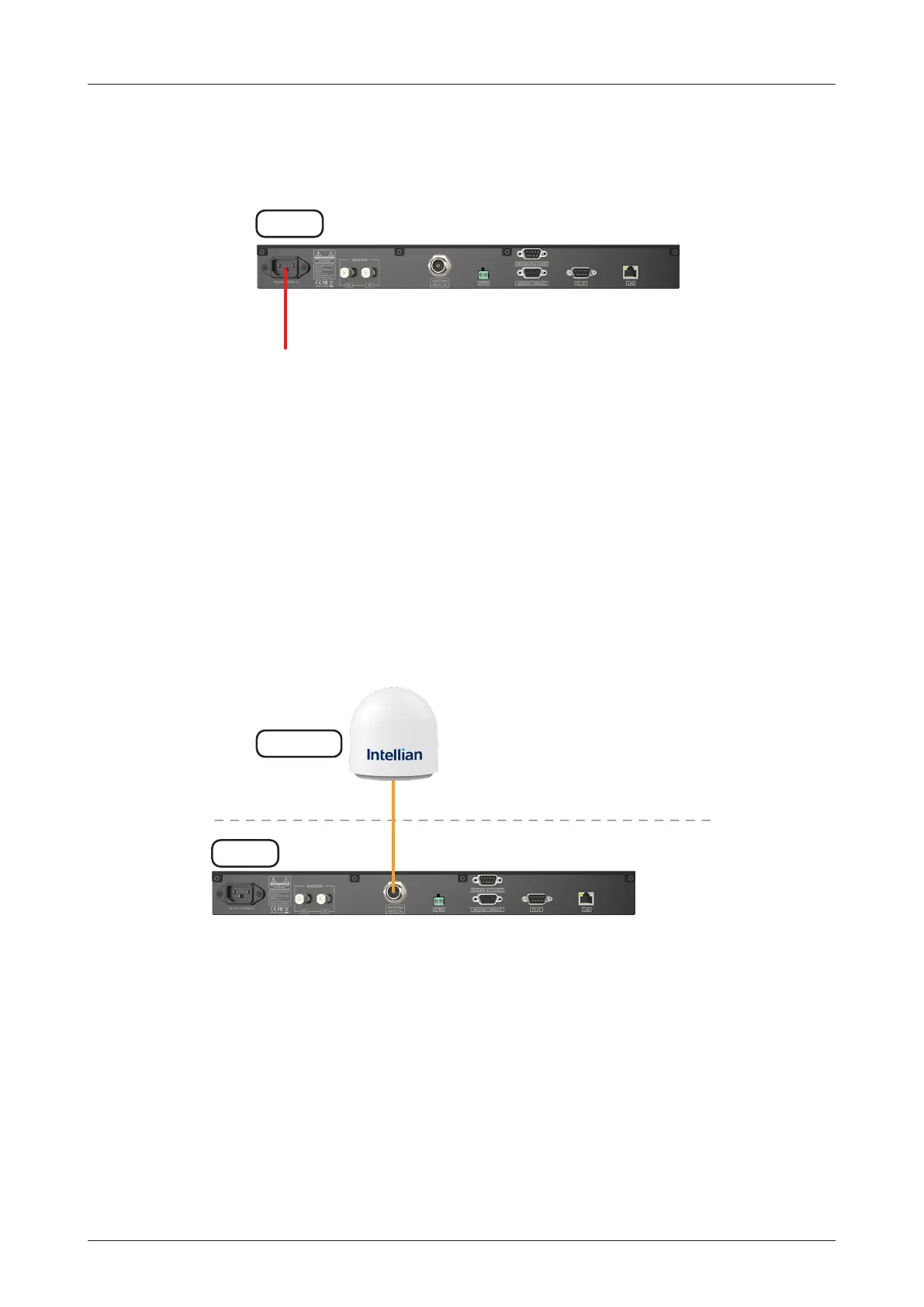

Figure 19: Connecting Power to ACU
ACU
100~240 VAC (Power Supply)
Power (100~240 VAC, 50/60 Hz, 1 A)
6.5.4 Connecting ACU to Antenna
Connect an Antenna RF cable (N to N) (customer supplied) from the ANTENNA (N) port of the ACU to the
RF (N) port of radome (antenna).
Figure 20: ACU to Antenna Cable Connection
Above Decks
Below Decks
ACU
Antenna
Antenna
RF Connector
(Tx, Rx, 48 VDC Power)
To Next Page
