v60E - Maritime VSAT Antenna System

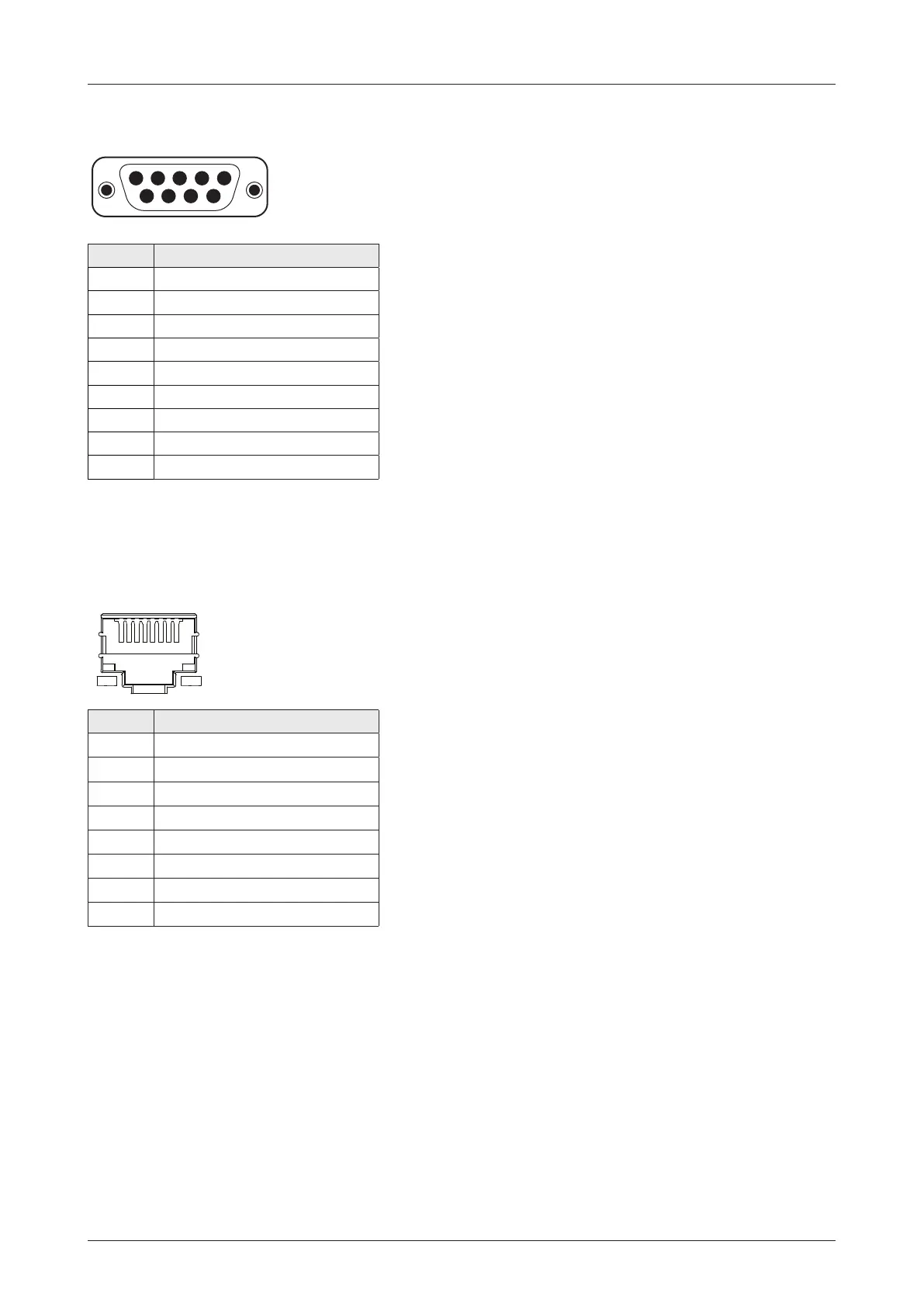

• PC Interface - RS232 Connector
D-Sub 9-Pin Male
12345
6789
54321
9876
Pin Signal
1 N/C
2 PC RX
3 PC TX
4 N/C
5 GND
6 N/C
7 IARM TO PC_ DBG_ TX
8 PC TO IARM_ DBG_ RX
9 N/C
• LAN Connector
12345678
RJ-45 Female
Pin Signal
1 TX-
2 TX+
3 RX-
4 N/C
5 N/C
6 RX+
7 N/C
8 N/C
