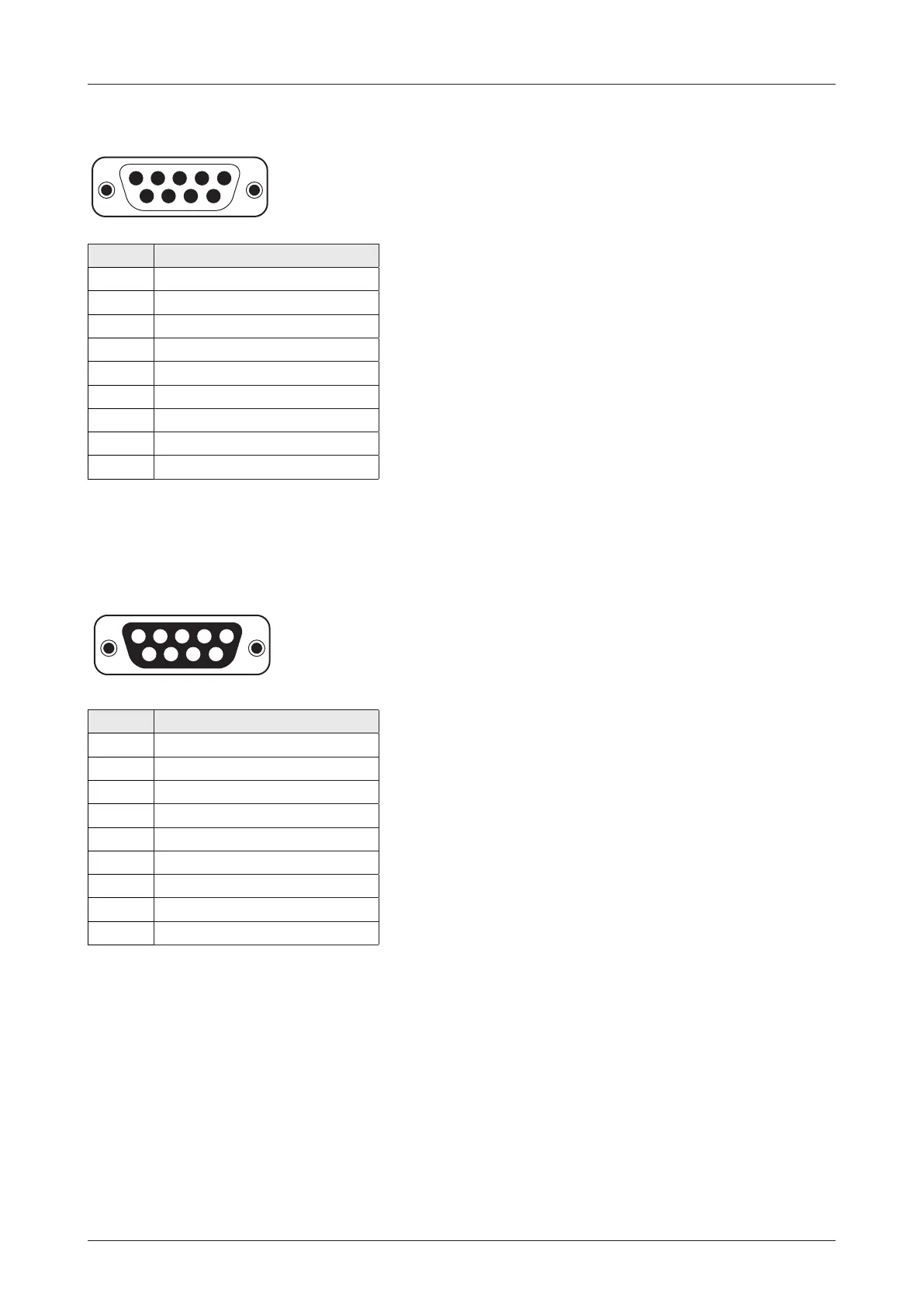

Installing Below Deck Unit (BDU)
• Modem Interface - RS232 & RS422 Connector
D-Sub 9-Pin Male
12345
6789
54321
9876
Pin Signal
1 N/C
2 MODEM TX / MAX422 RX+
3 MODEM RX / MAX422 TX+
4 N/C
5 GND
6 N/C
7 MAX422 RX-
8 MAX422 TX-
9 N/C
• Modem Interface - Console Connector
D-Sub 9-Pin Female
12345
6789
54321
9876
Pin Signal
1 GND
2 GPS_OUTA
3 MODEM_LOCK
4 MUTE 0
5 N/C
6 GPS_OUTB
7 EXM_AGC
8 MUTE 1
9 N/C
