CCU Mounting bracket clearances

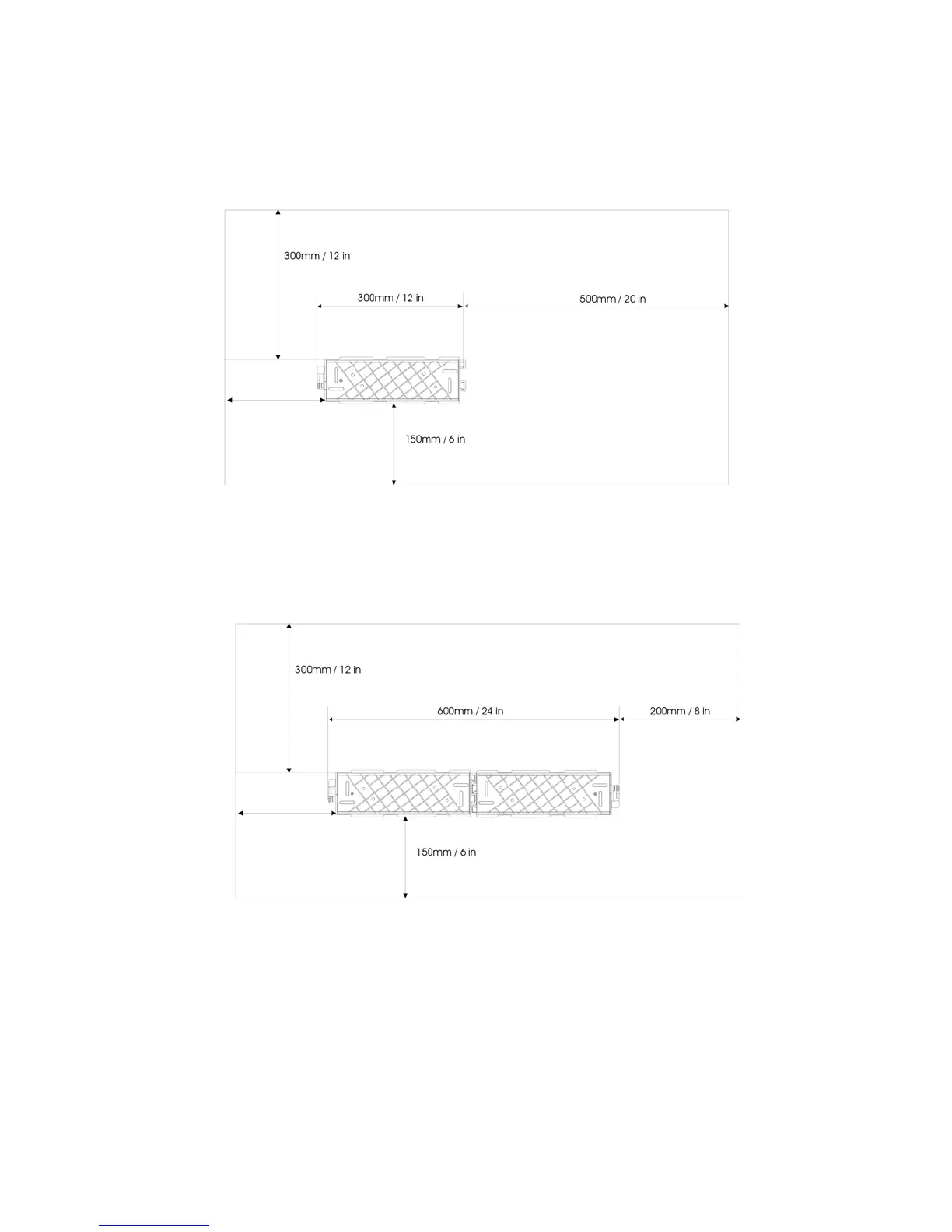

The main unit is mounted on a wall using the bracket supplied and should have top and side clearance
as shown below.
CCU Mounting Bracket
If the system is to be equipped with an Extension or Internet Router module, then two mounting
brackets need to be installed.
+
CCU Bracket + Backplane Bracket
300mm min
