3. Gently push the 008 module onto the MDF.
4. Lock the 008 module in place by turning the locking screw ¼ turn clockwise with a suitable
screwdriver.

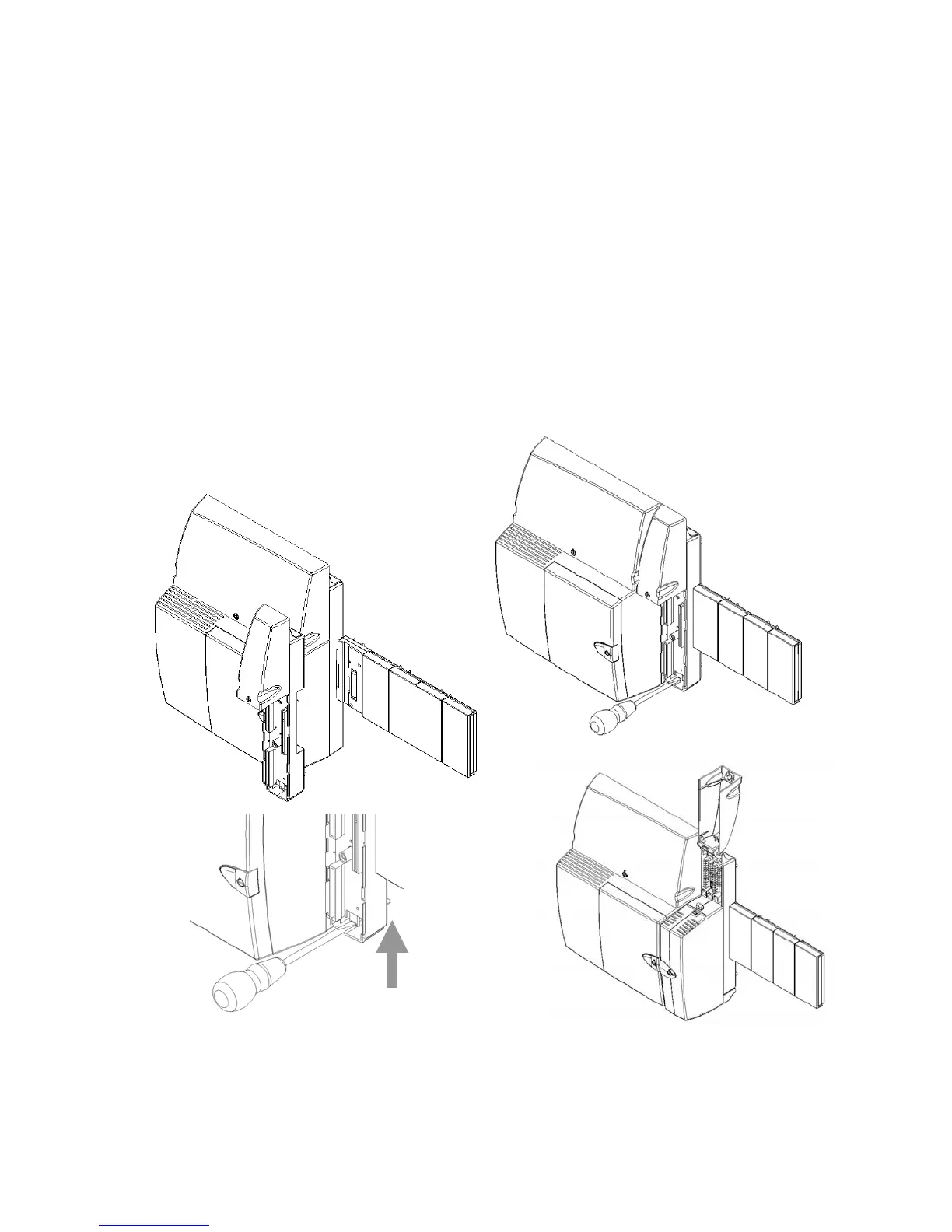

Installing an expansion module
Install the backplane as described on page 21.
Install the MDF in the first free left-hand slot on the backplane.
Lock the MDF in place by pushing the lock bar upward using a screwdriver.
Lift the MDF cover and install the module.
Push up to lock
