Inter-Tel ECX 2000 - Removing the 008 Module from the Backplane; Installing the 008 Module Onto the Backplane

EncoreCX
Installation and Maintenance Manual
23

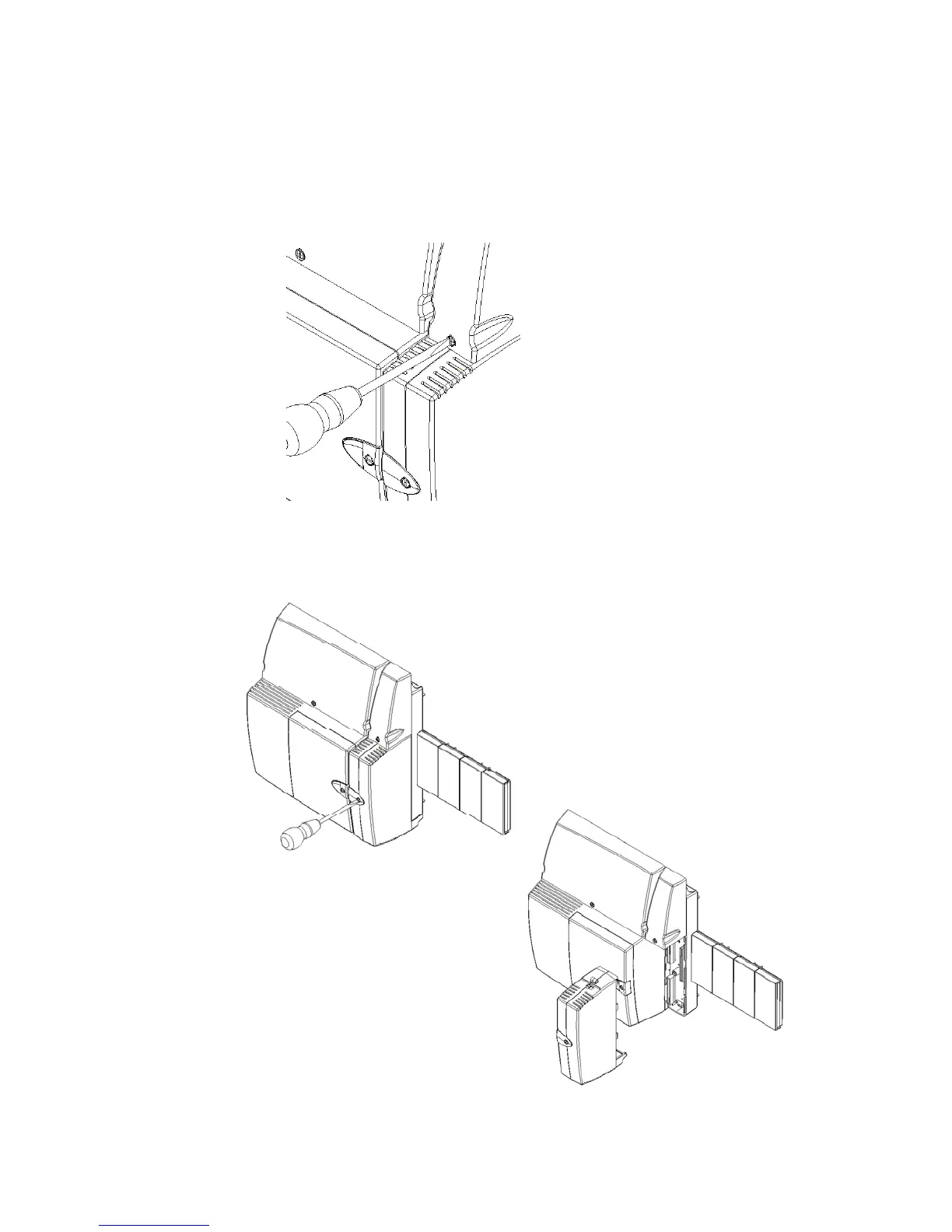

Removing the 008 module from the backplane
1. Unlock the upper locking screw by turning the locking screw, with a suitable screwdriver, ¼ turn
counterclockwise.
2. Lift the cover.
3. Unlock the Extension module locking screw by turning the locking screw, with a suitable screwdriver,
¼ turn counterclockwise.
4. Gently pull the lower half of the module off.
Installing the 008 module onto the backplane
1. Lift the MDF cover.
2. Align the connectors of the module and the MDF.
