Inter-Tel ECX 2000 - Wall-Mounting an ECX 1000 or ECX 2000 Telephone

EncoreCX
Installation and Maintenance Manual
37

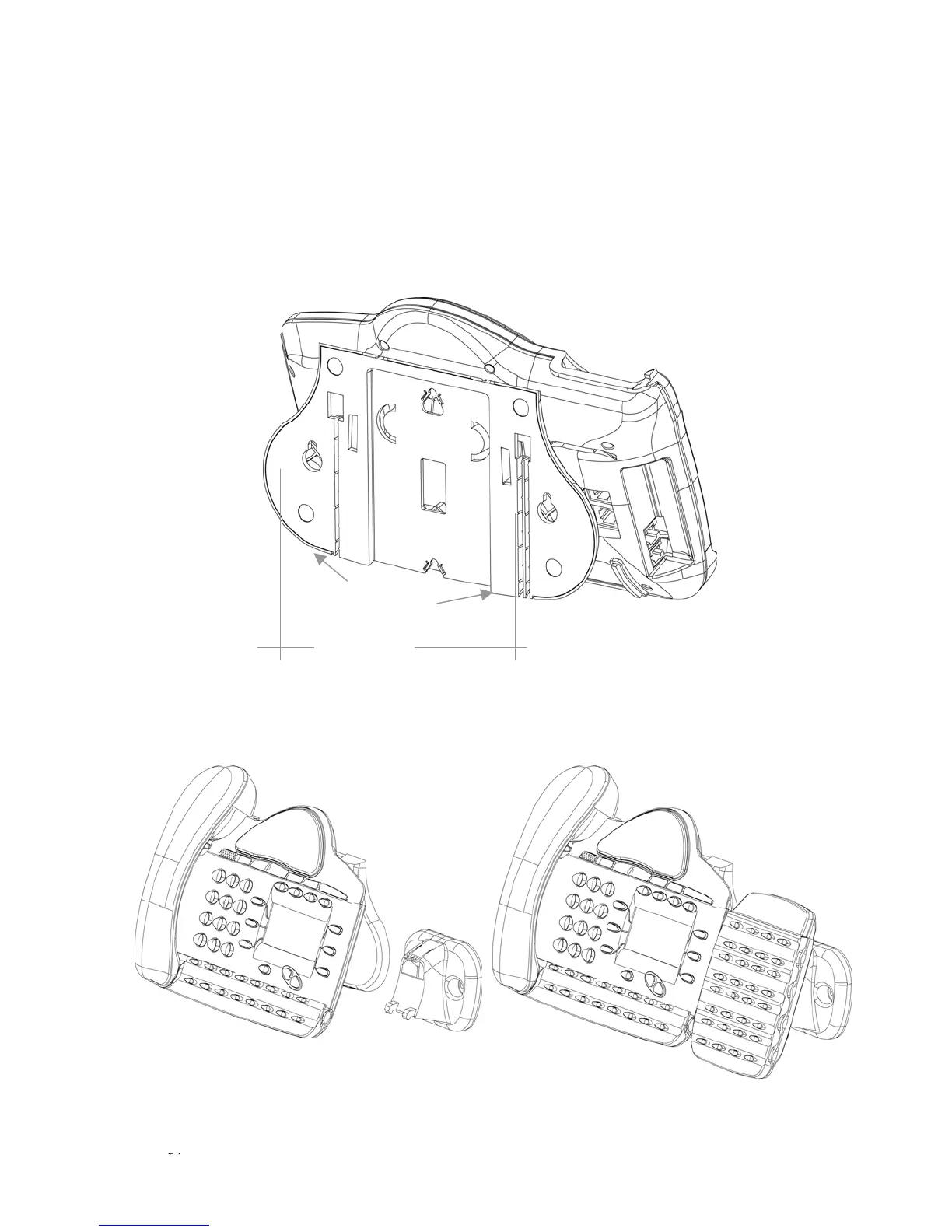

Wall-mounting an ECX 1000 or ECX 2000 telephone
The phone pedestal is inverted on the base to wall mount the phone.
Locate, drill and plug the two screw locations as shown below. The holes should be deep enough to accept
a one-inch screw. Insert the two screws leaving sufficient space to clip the base over them. Locate the
phone and base over the screws.
6 inches
Line cord rails
ECX 2000 and DSS in
Wall-Mount position
Digital telephone
set in Wall-Mount
position
