Internet Router Module connections
The Internet Router module has four RJ45 connectors providing four 10/100 Base T Extension for an
Internal LAN and a connection for the DSL modem via a 10 Base-T WAN RJ45 connector.
See page 54 for basic Internet Router module programming.

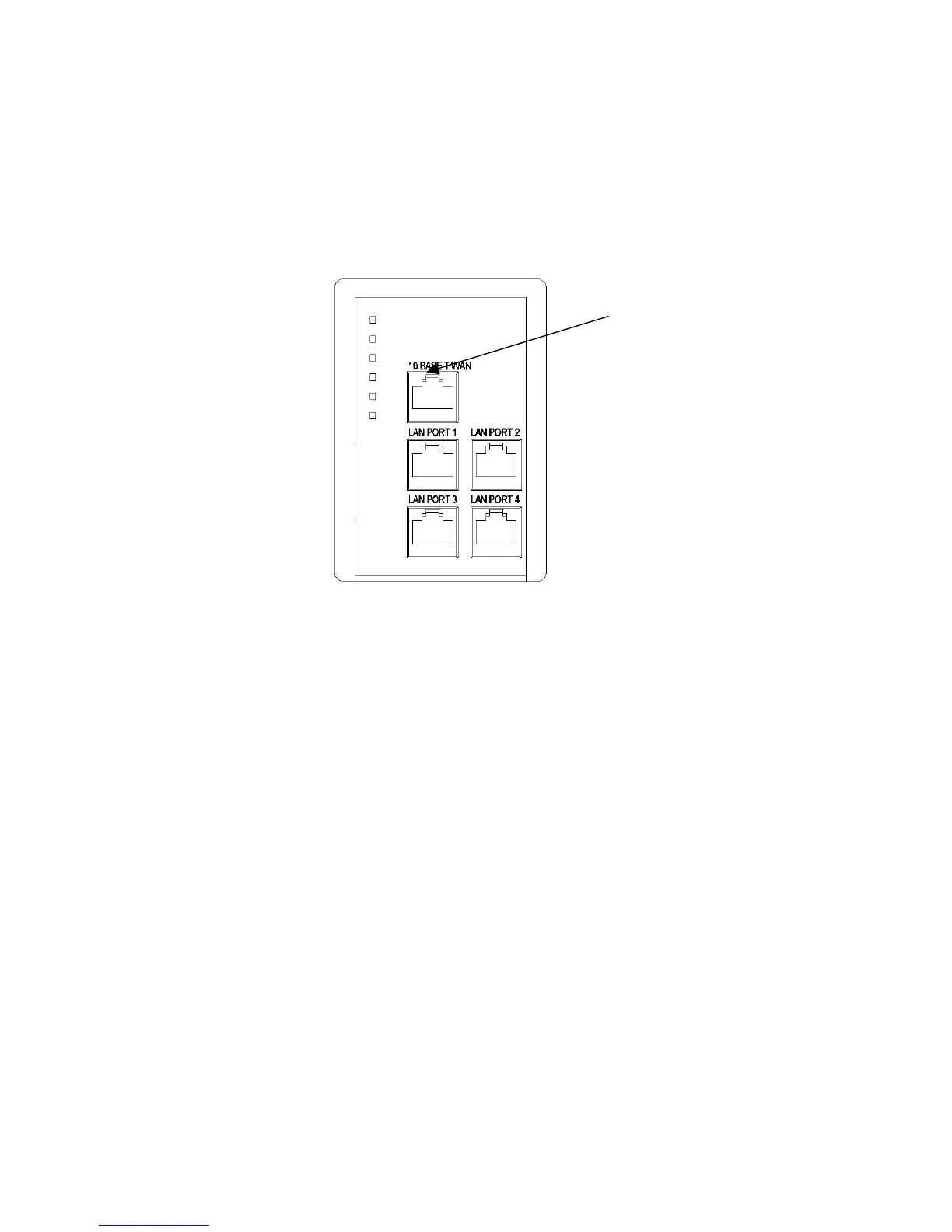

DSL/Cable Modem
Connection
