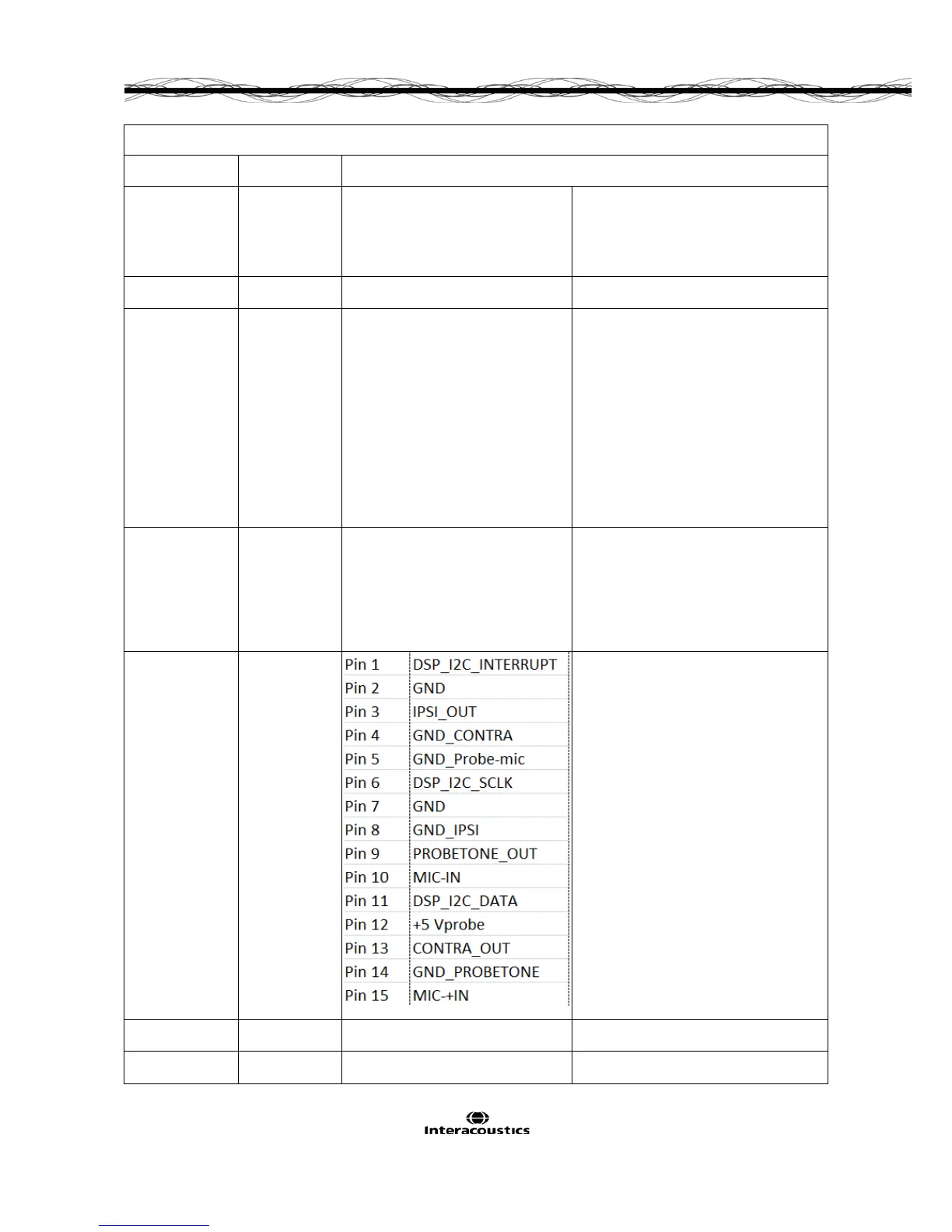

AT235 Instructions for Use - EN Page 49
Specification of input/output connections
Inputs
Connector type
Electrical properties
Patient response
Jack6.3mm
Handheld switch:
Pin 1: GND
Pin 2: Signal
3V through 10K is forced to ground
when activated
Outputs:
Phones, Left
Phones, Right
Jack, 6.3mm
Jack 6.3mm
Voltage:
Min. load impedance:
Pin 1: CH1 GND
Pin 2: CH1 OUT
Pin 1: CH1 GND
Pin 2: CH1 OUT
Up to 3V rms. by 10 ohm load
8 Pin 2:
Up to 3V rms. by 10 ohm load
8 Pin 2:
Phones,
Contralateral
Jack 6.3mm
Voltage:
Min. load impedance:
Pin 1: CH1 GND
Pin 2: CH1 OUT
Up to 3V rms. by 10 ohm load
8
Probe system
15-pin D-sub
high density
with air
connection
Data I/O:
USB
USB type”B”
USB port for communication
