32
► Intergas twin-pipe horizontal wall terminal (item no 09027).
To be extended, in the case of a balcony terminal, with one
or two standard pipes (Ø80 mm).
Allowable pipeline length
Air supply and flue system including the length of the twin-pipe
wall terminal.
Boiler Length
Intergas Xtreme 24 100 m
Intergas Xtreme 30 850 m
Intergas Xtreme 36 80 m
min. 90
Ø80 Ø80
120
110
240
50
125
50
120
125
Assembly of twin-pipe wall terminal
► Create two openings of Ø90 mm at the location of the
terminal.
► Shorten the twin-pipe wall terminal to the correct length.
► Slide the supply and exhaust pipe in the openings.
► Close the openings with the wall covers.
► Install the outlet grilles on the supply and exhaust pipe.
► Attach these to the pipes.
► Assemble the twin-pipe wall terminal, taking into account
the air supply duct goes to the exterior at an angle and the
flue goes to the boiler at an angle.
COMMENT
► Pipes for the connection of the air supply
duct and the flue between the boiler and
the combi-pipe wall terminal must have a
diameter of Ø80 mm.
► When using a wall terminal, the boiler
must be equipped with a flue gas non-
return valve (item no 090417).
► The individual flue pipe (Ø80) must be
constructed of stainless steel or plastic
PP T120.

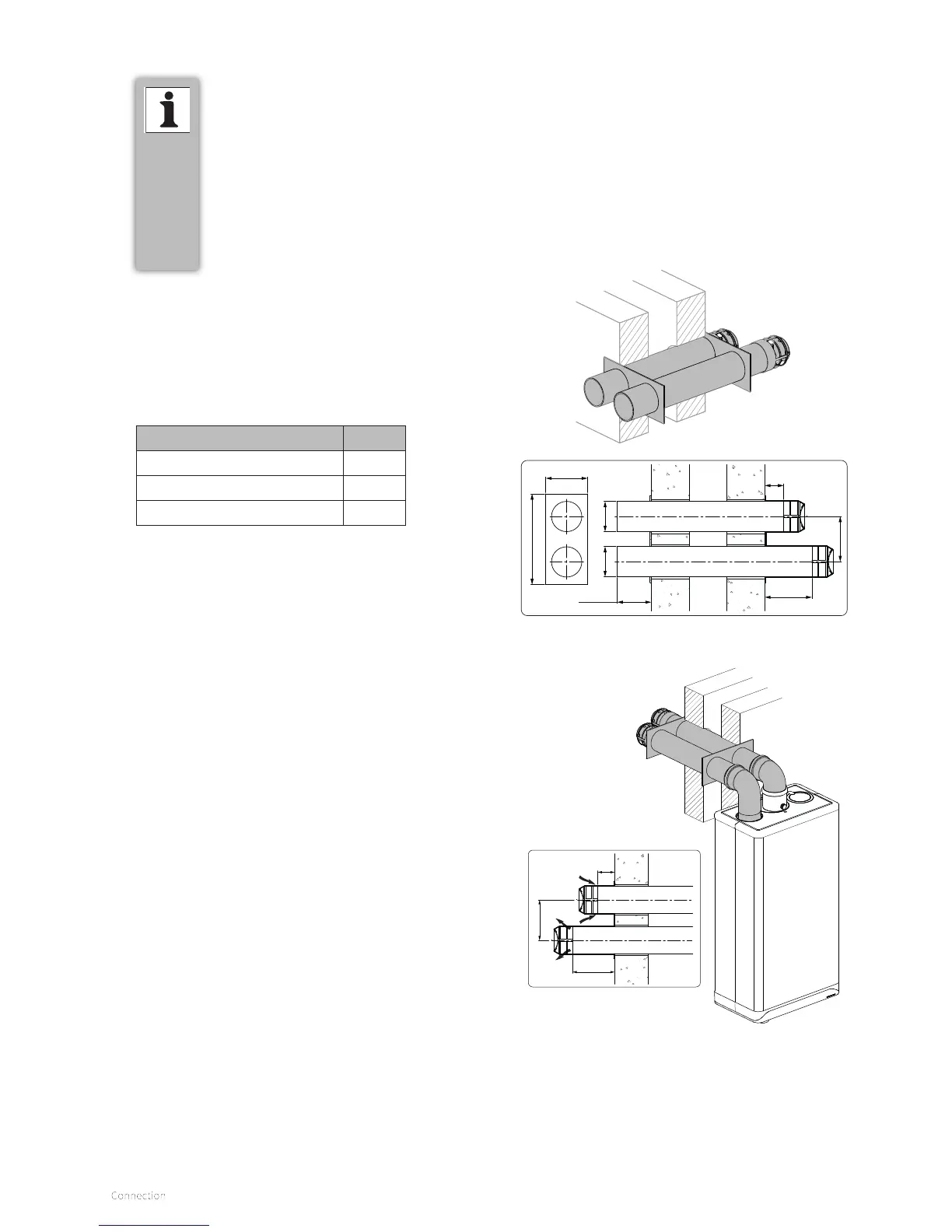

6.8.1 Wall terminal with twin-pipe horizontal terminal C13
