34 Installation Guide
Camera description

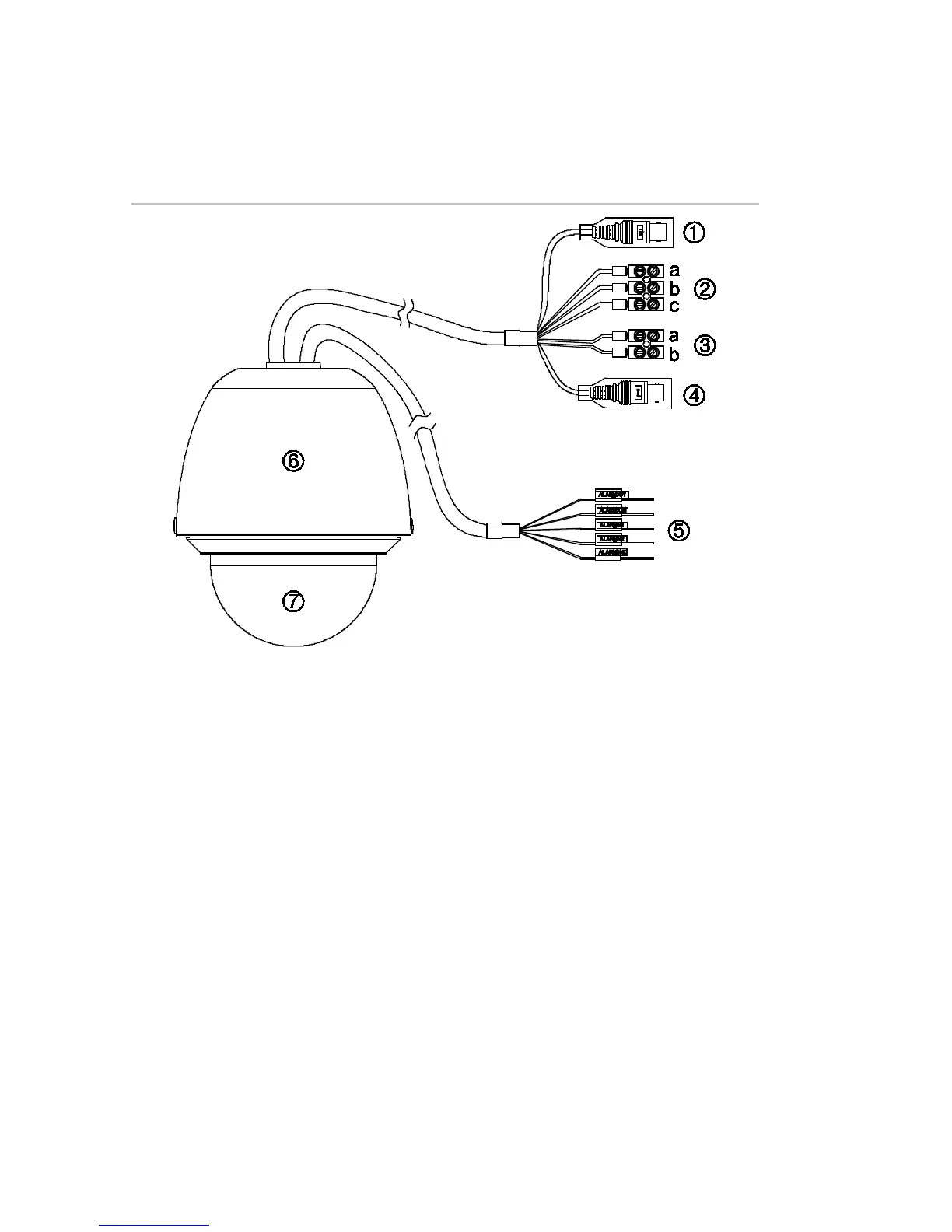

Figure 6: Outdoor HD-TVI PTZ dome
1. HD-TVI output (White)
2. Power supply
a. Black 24 VAC
b. Yellow/Green GND
c. Red 24 VAC
3. RS-485 port
a. Orange RS-485+
b. Yellow RS-485-
4. 960H analog output
(Black)
5. 2 Alarm inputs
(YELLOW/BLUE-
ALARM_IN1,
YELLOW/ORANGE-
ALARM_IN2)/ 1 Alarm
output (WHITE/RED-
ALARM_OUT1)
6. Housing
7. Bubble
