16 Installation Guide
IR pendant/wall mount HD-TVI PTZ dome
Use the two DIP switches SW1 and SW2 to set the PTZ dome
address, baud rate, protocol, etc. Value ON =1 and OFF =0.
The switch label is on the back of the SWITCH cover, as
shown below.
Each number of the switch represents a DIP value, ranging
from 1 to 8 from the lowest to highest.

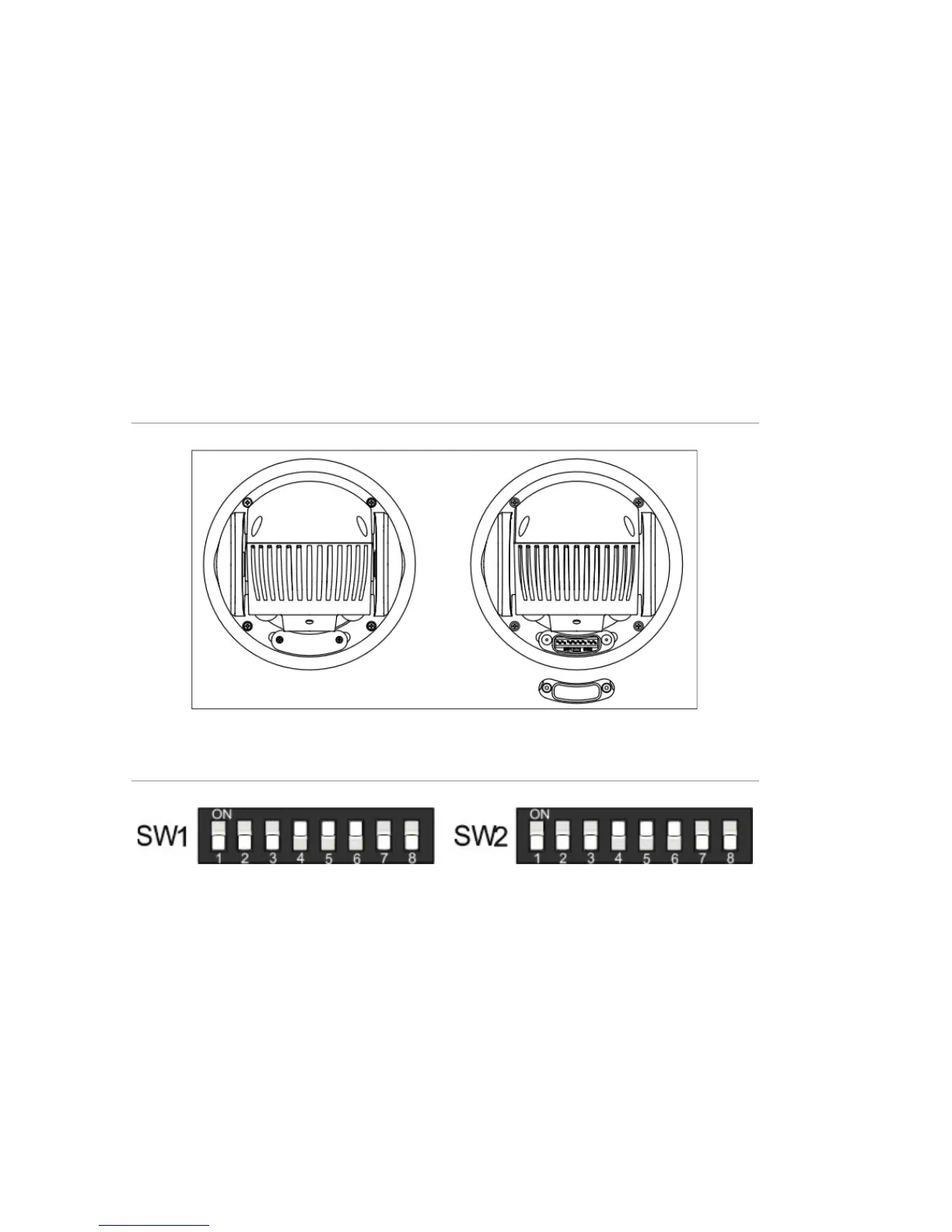

Figure 4: Label of DIP switch for pendant/wall mount HD-
TVI IR PTZ dome
Figure 5: Enlarged view of the DIP switches
Note: The default dome address is 0. The default baud rate is
2400. The default value of the 120Ω terminator is OFF.
