40 Installation Guide
To mount the pendant/wall IR HD-TVI PTZ dome:
1. Set the address and baud rate for the dome shown on
the page 17.

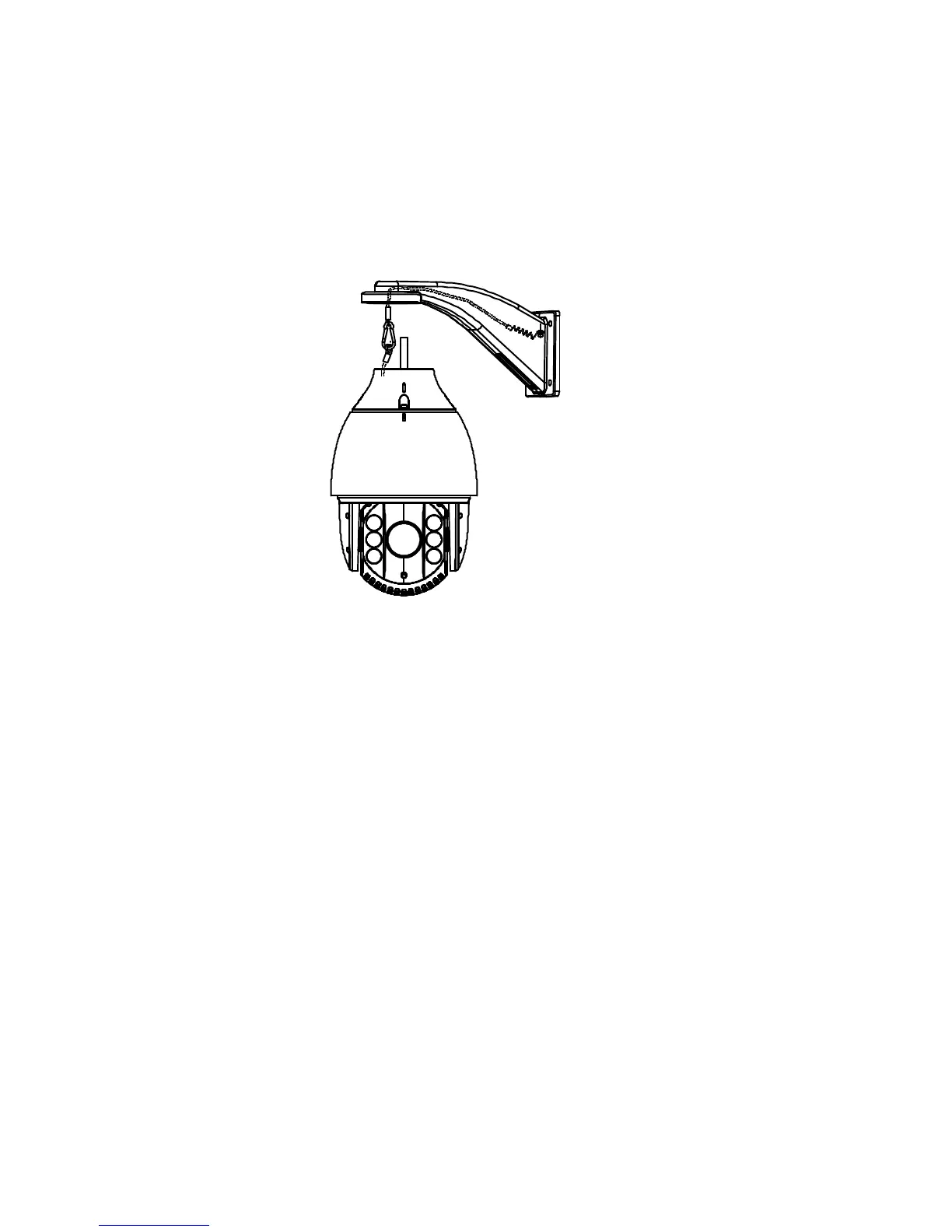

2. Hang the safety cable to the HD-TVI PTZ dome and then
hook the dome to the bracket, as shown below.
3. Route the cables of the PTZ dome through the bracket.
4. Connect the corresponding video/power/RS-485 cables.
5. Install the PTZ dome to the bracket, and secure the PTZ
dome using the screws enclosed with the bracket.
