34 xGen Installation & Programming Guide
If it does not:
1. Check cable connection.
2. Check router settings.
Connect to xGen via 3G modem
An optional 3G modem provides a back-up reporting path to the central
monitoring station over the 3G network if the Ethernet connection is not working.
The 3G modem can also be set for primary reporting in case there is no
LAN/internet connection available.
The 3G modem is pre-configured and does not require any programming. Once
plugged onto the xGen panel, the unit will automatically register itself on the
mobile network. If not, please refer the manual that comes with the cellular radio
for instructions on how to install it.

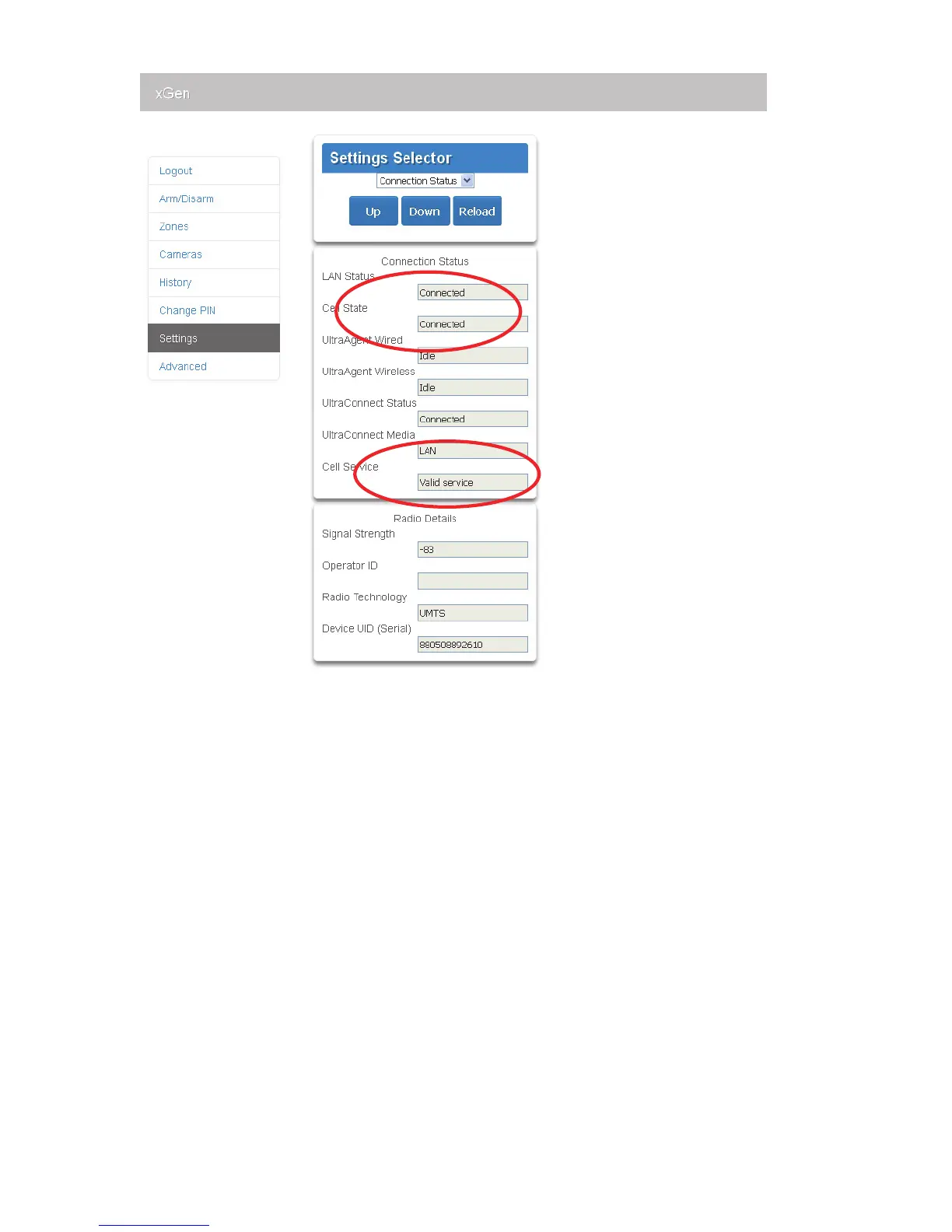

Check 3G connection to UltraConnect
1. Login to the xGen Web Server as shown above
2. Click Settings
3. Select Connection Status in the drop down menu
