xGen Installation & Programming Guide 93

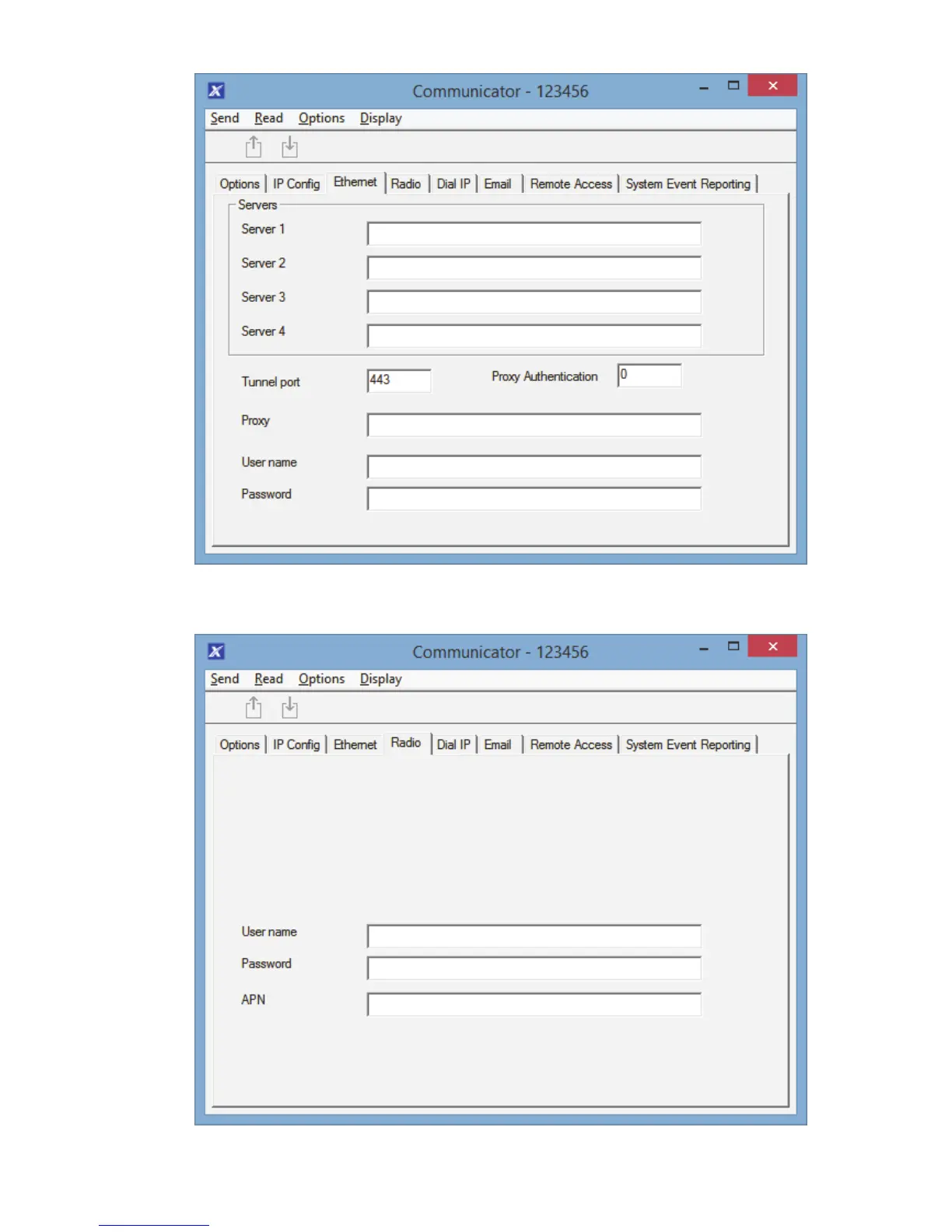

7. Click Radio and enter settings if required, this will depend on the SIM card

and operator you are using.
