Intermec EasyCoder F4 – Installation & Operation Ed. 3102
Appendix 2 Media Specifi cations
Media, cont.

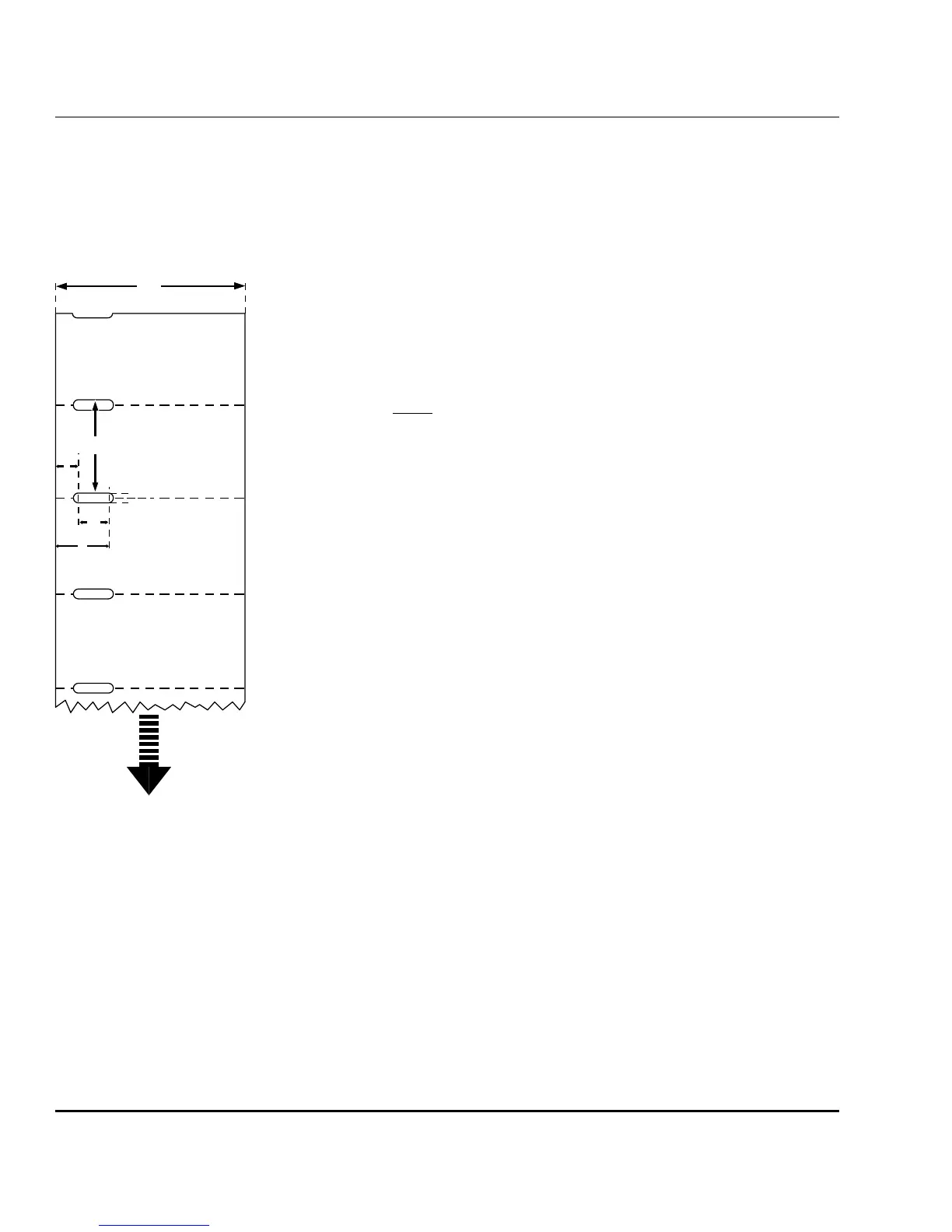

Tickets with Gap
⇐ a ⇒ Media Width:
Maximum: 114.3 mm (4.50 inches)
Minimum (standard): 25.0 mm (1.00 inches)
Minimum (narrow Quick-Load): 40.0 mm (1.57 inches)
Minimum (wide Quick-Load): 80.0 mm (3.15 inches)
⇐ b ⇒ Copy Length:
Min. length between slots: 8.0 mm (0.32 inches)
Max. length between slots: depends on DRAM size
Under ideal circumstances, a minimum ticket length of 4 mm
(0.16 inches) could be used. It requires the sum of the copy length
(b) and the detection slit height (e) to be larger than 7 mm (0.28
inches), that batch printing is used, and that no pull back of
the media is performed. Intermec does not guarantee that such
short tickets will work, but it is up to the user to test this in his
unique application.
⇐ c ⇒ LSS Detection Position:
Five fi xed positions (distance from inner edge of the media):
3 mm (0.118 inches)
8 mm (0.315 inches)
12 mm (0.472 inches)
16 mm (0.639 inches)
20 mm (0.787 inches)
⇐ d ⇒ Detection Slit Length:
The length of the detection slit (excluding corner radii) must be
minimum 2.5 mm (0.10 inches) on either side of the LSS detection
position (e).
⇐ e ⇒ Detection Slit Height:
Maximum: 21.3 mm (0.83 inches)
Recommended: 1.6 mm (0.06 inches)
Minimum: 1.2 mm (0.05 inches)
Media Type Setup:
• Ticket (w gaps)
Do not allow any perforation to break the edge of the media as this
may cause the media to split and jam the printer.
a
TICKETS & TAGS
e
FEED
DIRECTION
b
f
d
c
To Next Page
