Intermec EasyCoder F2 – Installation & Operation Ed. 2 19
Chapter 3 Installation
Media
Compartment
The media compartment is either covered by a long side door that
completely encloses the print mechanism and media compartment,
or a short side door that only covers the print mechanism and gives
easy access to the paper supply (see chapter 9 “Options”). Being
held by a magnetic lock, the door can be opened 180° so as to
provide full access to the media compartment in connection with
paper load and cleaning.
The paper supply can be from a hanger, or from an external supply
behind the printer. There is also an optional rotating paper supply
spool, see chapter 9 “Options”.
2
1
4
3
bw
fw

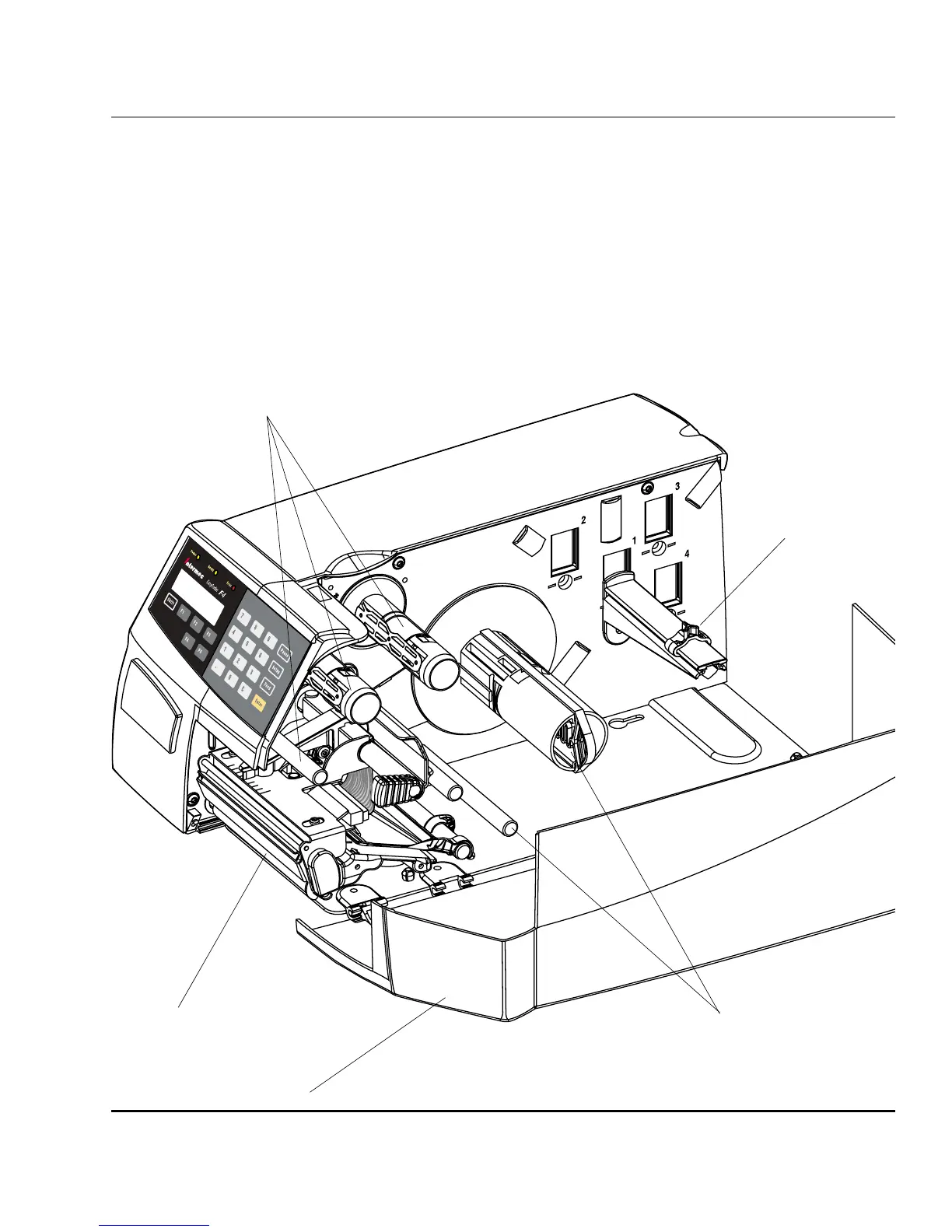

Paper Hanger
Long Side Door
Print Mechanism
Optional rewind unit
with guide shaft
