Intermec EasyCoder F4 – Installation & Operation Ed. 3 103
Appendix 2 Media Specifi cations
Media, cont.
Tickets with Black Mark
⇐ a ⇒ Media Width:
Maximum: 114.3 mm (4.50 inches)
Minimum (standard): 25.0 mm (1.00 inches)
Minimum (narrow Quick-Load): 40.0 mm (1.57 inches)
Minimum (wide Quick-Load): 80.0 mm (3.15 inches)
⇐ b ⇒ Copy Length:
Maximum: depends on DRAM size
Minimum: 20.0 mm (0.8 inches)
⇐ c ⇒ LSS Detection Position:
Five fi xed positions (distance from inner edge of the media):
3 mm (0.118 inches)
8 mm (0.315 inches)
12 mm (0.472 inches)
16 mm (0.639 inches)
20 mm (0.787 inches)
⇐ d ⇒ Black Mark Width:
The detectable width of the black mark should be at least 5.0 mm
(0.2 inches) on either side of the LSS detection point.
⇐ e ⇒ Black Mark Length:
Maximum: 21.3 mm (0.83 inches)
Common: 12.5 mm (0.5 inches)
Minimum: 5.0 mm (0.2 inches)
⇐ f ⇒ Black Mark Y-Position:
It is recommended that you place the black mark as close to the
front edge of the ticket as possible and use a negative Stop Adjust
value to control the media feed, so the tickets can be properly
torn or cut off.
Media Type Setup:
• Ticket (w mark)
Important! Preprint that may interfere with the detection of the
black mark should be avoided on the back of the media. However,
the LBLCOND statement allows the sensor to be temporarily
disabled during a specifi ed amount of media feed in order to avoid
unintentional detection, see Intermec Fingerprint manuals. The
black mark should be non-refl ective carbon black on a whitish
background. Do not allow any perforations to break the edge of the
media as this may cause the media to split and jam the printer.

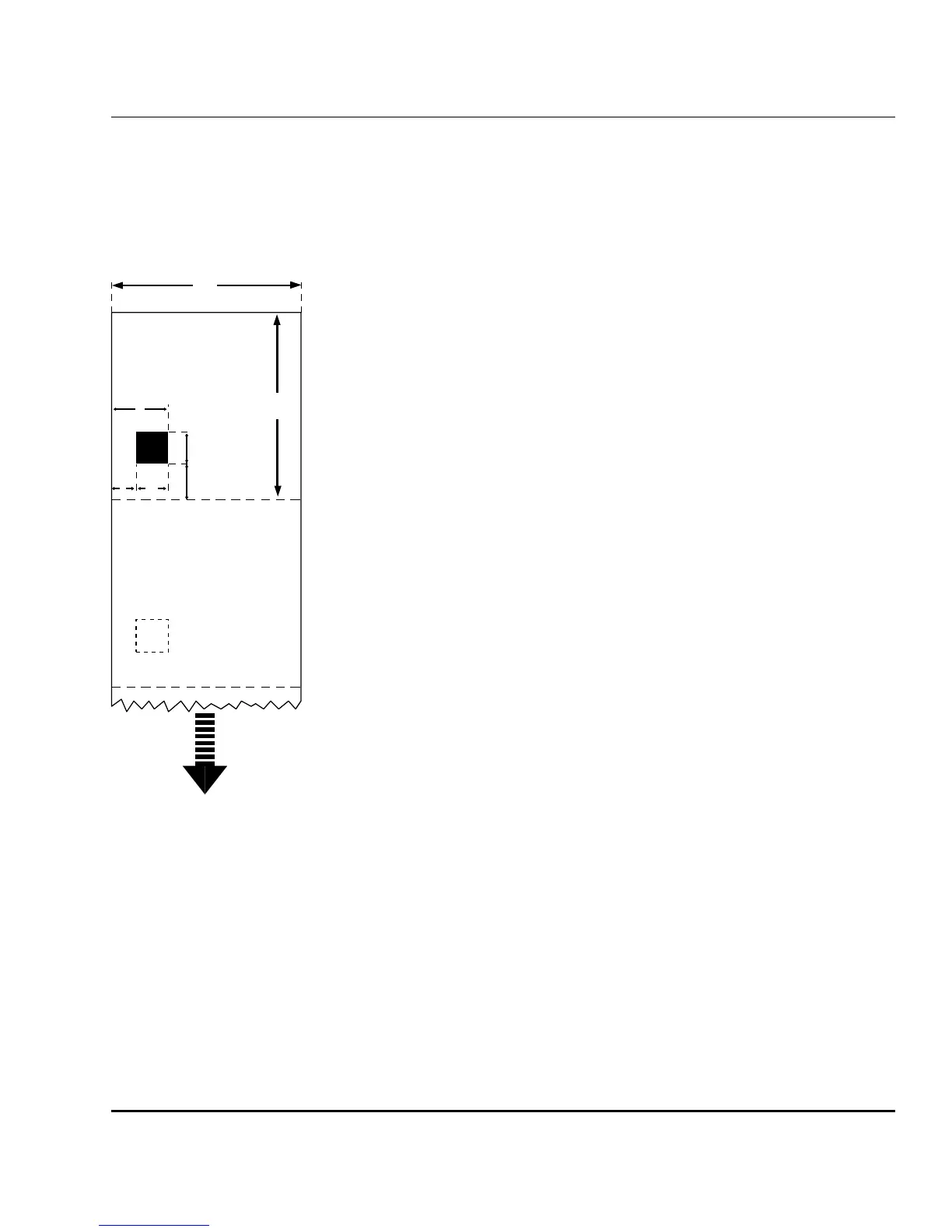

a
