Intermec EasyCoder F2 – Installation & Operation Ed. 230
Chapter 5 Paper Load
Tear-Off, cont'd.
Remove any empty paper core from the paper
supply hanger.
Hook a new roll of direct thermal paper on the
paper supply hanger and adjust the guide so
the paper roll comes in fl ush with the wall.
2
1
4
3
2
1
4
3
43
65

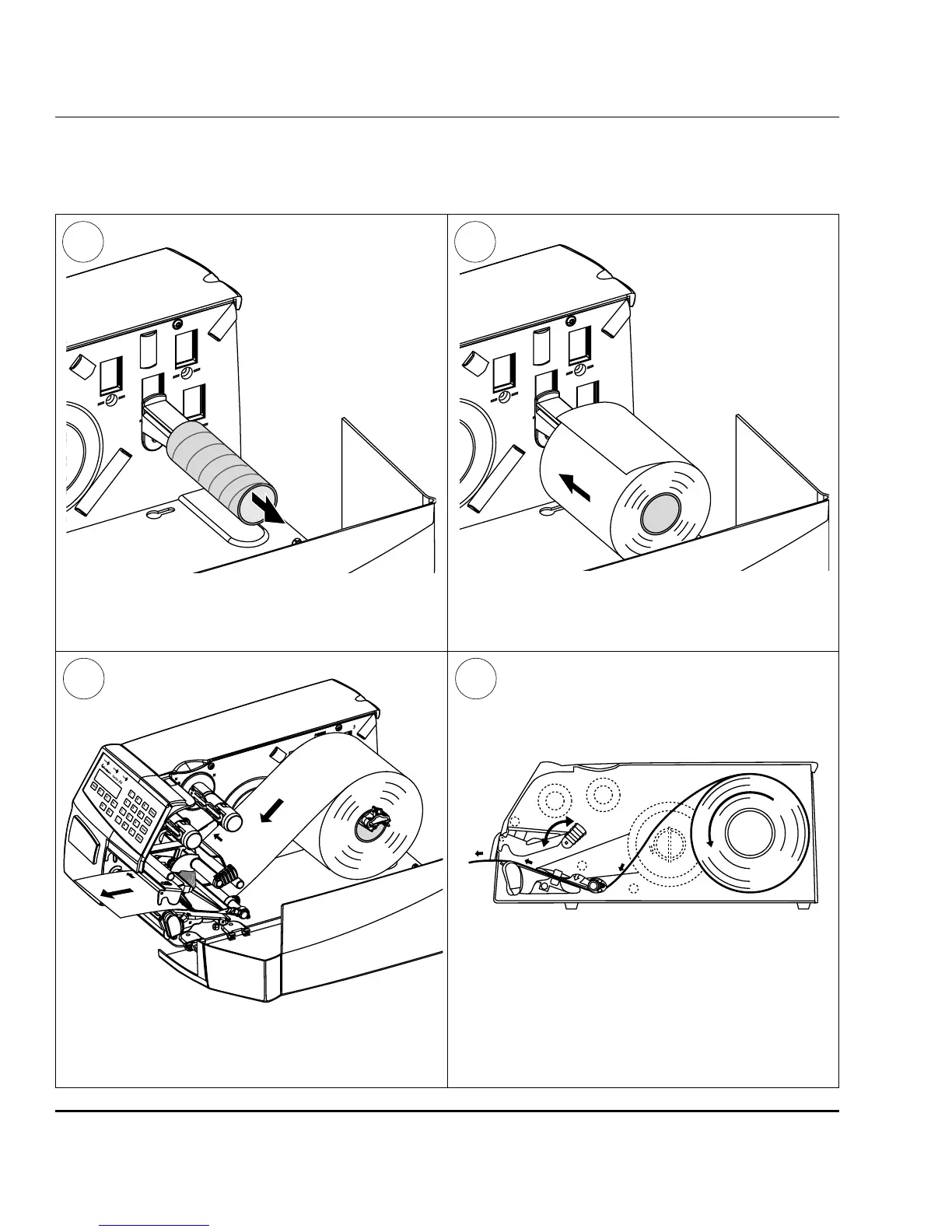

Thread the paper through the print mechanism
and push it inwards as far as it will go. This diagram shows the path of the paper web.
