Length, cont.
• The length setup also decides the amount of media feed when
using “fi x length strip”.
• The length setup creates an emergency stop, which works when
the printer is set up for “Label (w gaps)”, “Ticket (w mark)”, or
“Ticket (w gaps)”. If the label stop sensor (LSS) has not detected
a gap or mark within 150% of the set length, the media feed is
automatically stopped to avoid feeding out a whole roll of media
because of an LSS malfunction.
By setting up the X-start, the Width, and the Length, you will
create a print window inside which the printing can be performed.
Any object or field extending outside the print window in any
direction will either be clipped or cause an error condition (Error
1003 “Field out of label”), see Intermec Fingerprint v7.31 (or
later), Reference Manual.
Setup Parameters, cont.
Media, cont.

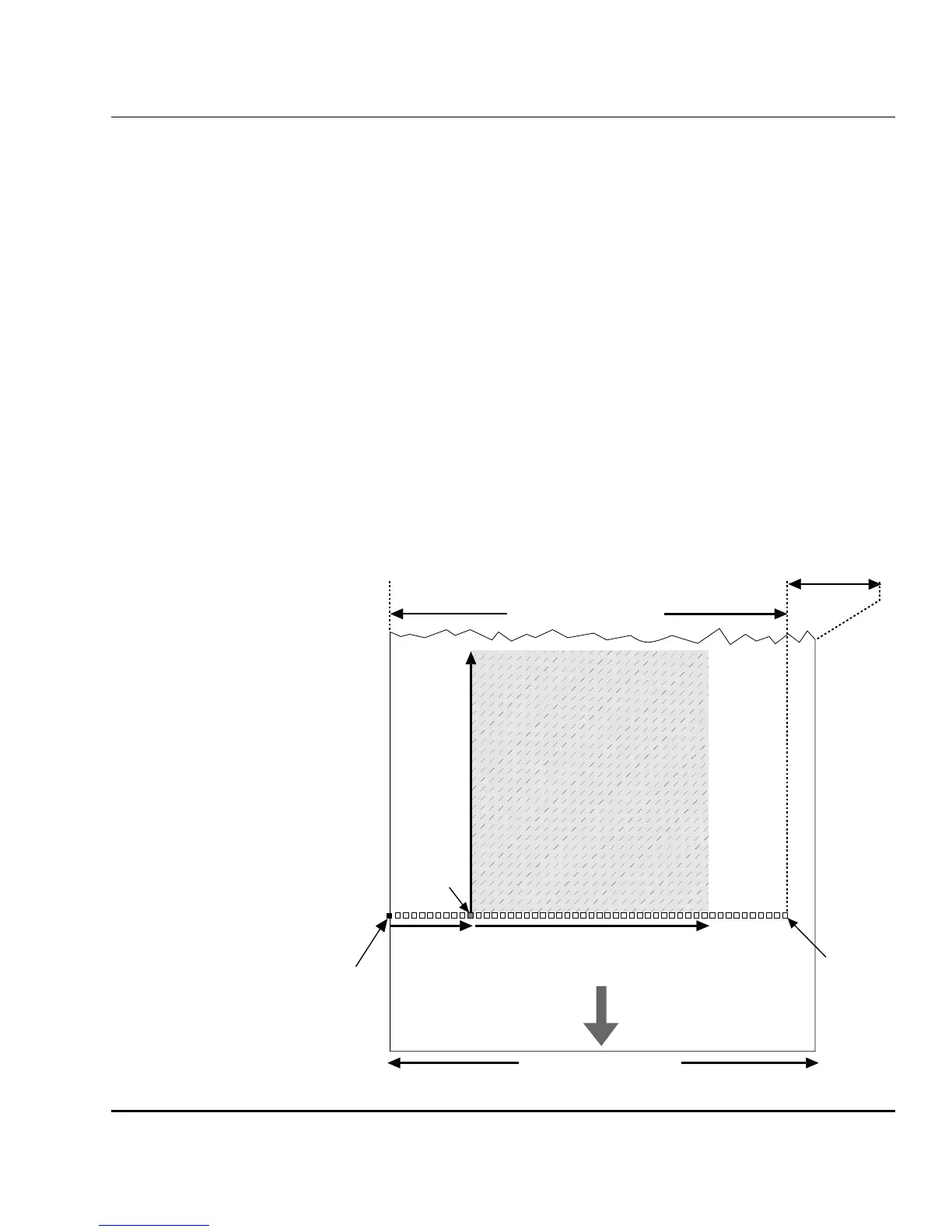

PAPER FEED
DIRECTION
Dot #0
Dot-line
on printhead
X-start Width (1–832)
Origin
Length
Dot #831
10.3 mm (0.41")
PRINT
WINDOW
PRINT
WINDOW
max. 104.0 mm (4.095")
25 – 114.3 mm (1 – 4.5")
