2 Intermec EasyLAN Interface Kit Installation Instructions
Chapter 1 — Physical Installation
• Switch off the printer and disconnect the power cord.
• Disconnect all communication cables.
• Remove the front/left-hand cover as follows.
The electronic compartment contains wires and compo-
nents with dangerous voltage (up to 380V). Make sure that
the printer is switched off and the power cord is discon-
nected before the left-hand cover is removed.

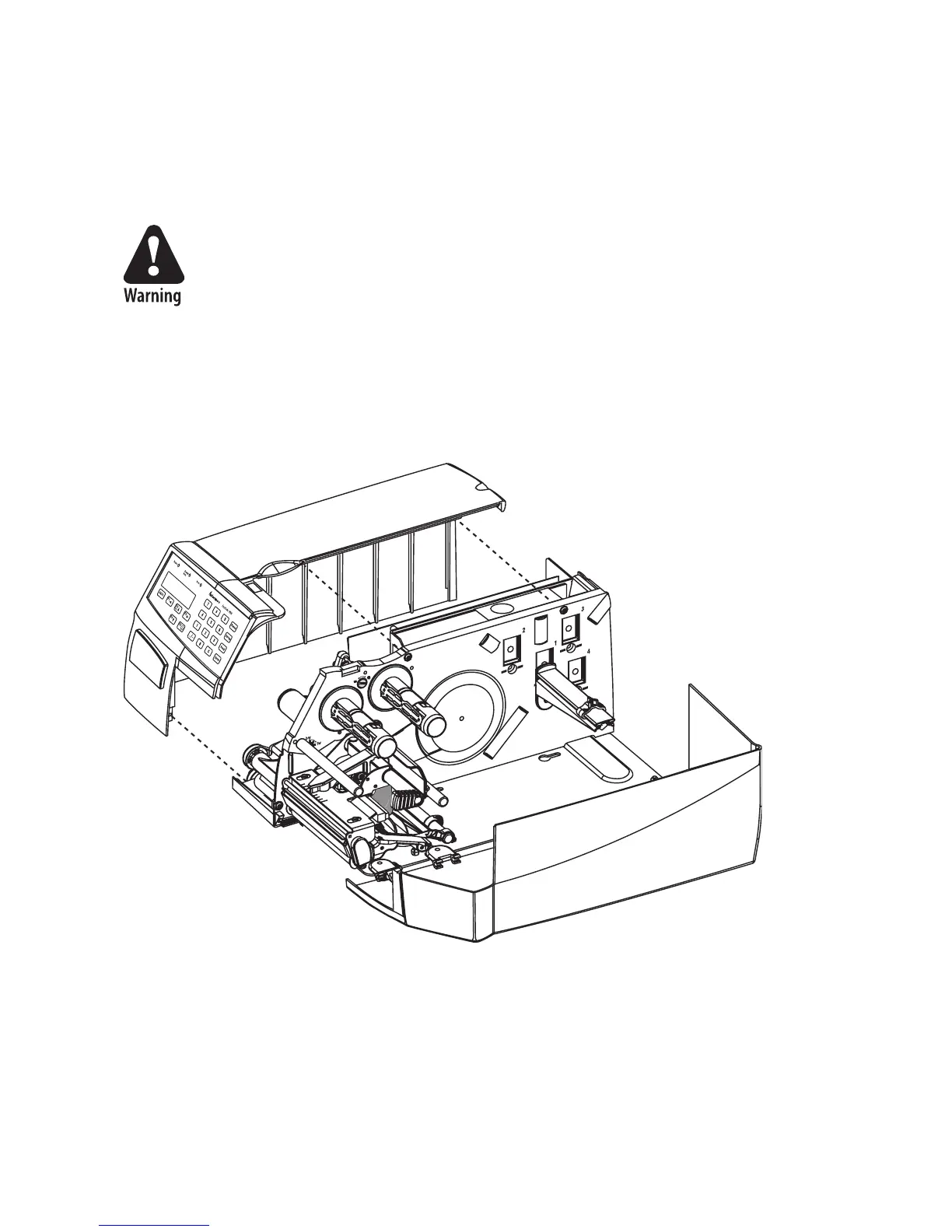

EasyCoder PF2/4i printers
• Open the right-hand door.
• Using a #T20 Torx screwdriver, remove the three screws and lift the
cover up so it disengages the bottom plate.
• Swing out the rear part of the cover so you can disconnect the console
cable from the CPU board.
• Put the cover aside on a soft cloth or similar to avoid scratches.
