Intermec EasyCoder PF4i Installation Instructions

14 EasyLAN Wireless Interface Kit Installation Instructions
Chapter 2 — Physical Installation
Step-by-Step Instructions
• Switch off the printer and disconnect the power cord.
• Disconnect all communication cables.
• Remove the cover over the electronics compartment as follows.
 e electronic compartment contains wires and compo-
nents with dangerous voltage (up to 380V). Make sure that
the printer is switched off and the power cord is discon-
nected before the left-hand cover is removed.

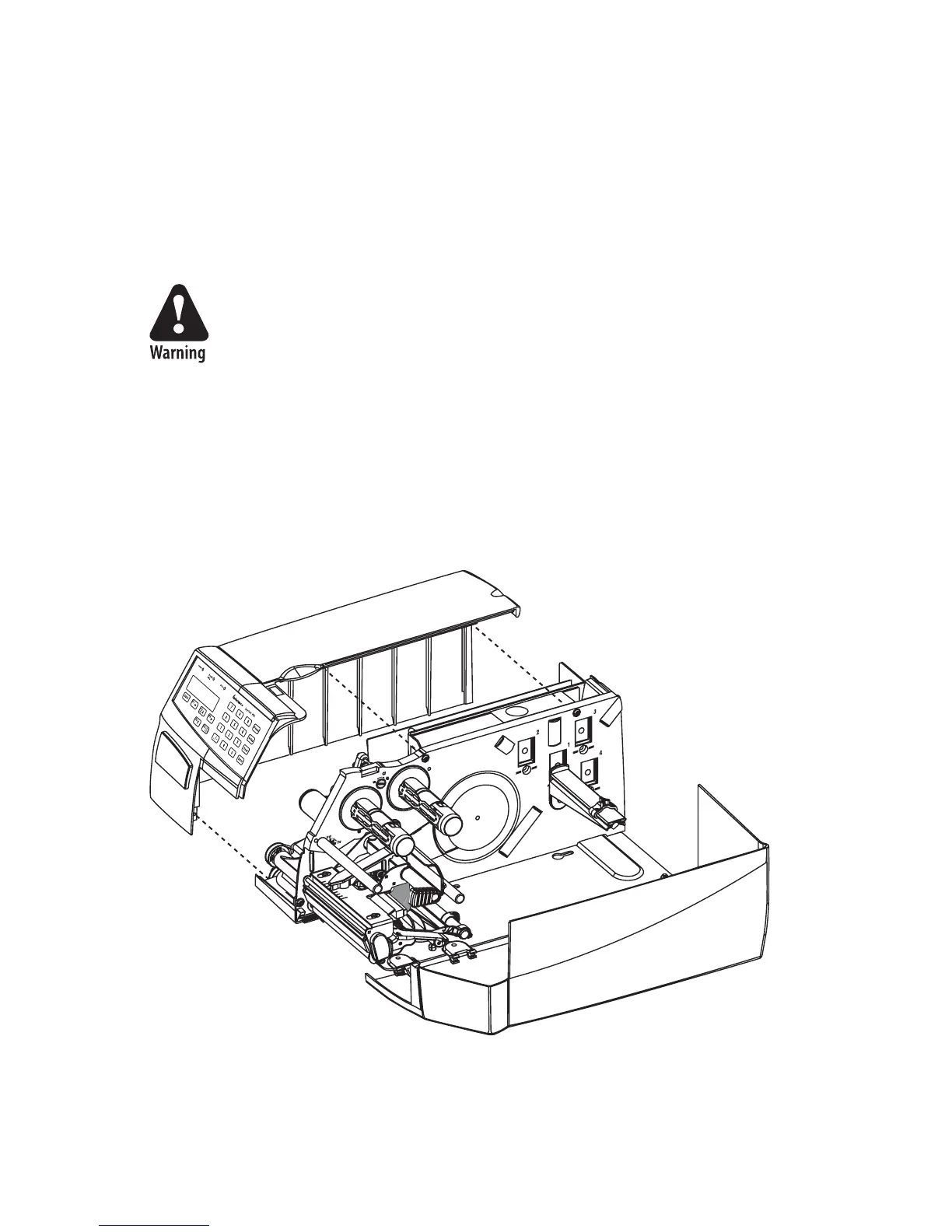

EasyCoder PF2/4i Printers
• Open the right-hand door.
• Using a #T20 Torx screwdriver, remove the three screws and lift the
cover up so it disengages the bottom plate.
• Swing out the rear part of the cover so you can disconnect the console
cable from the CPU board.

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
