The FT Series Floor Standing, Heating Only Boiler
Page 47

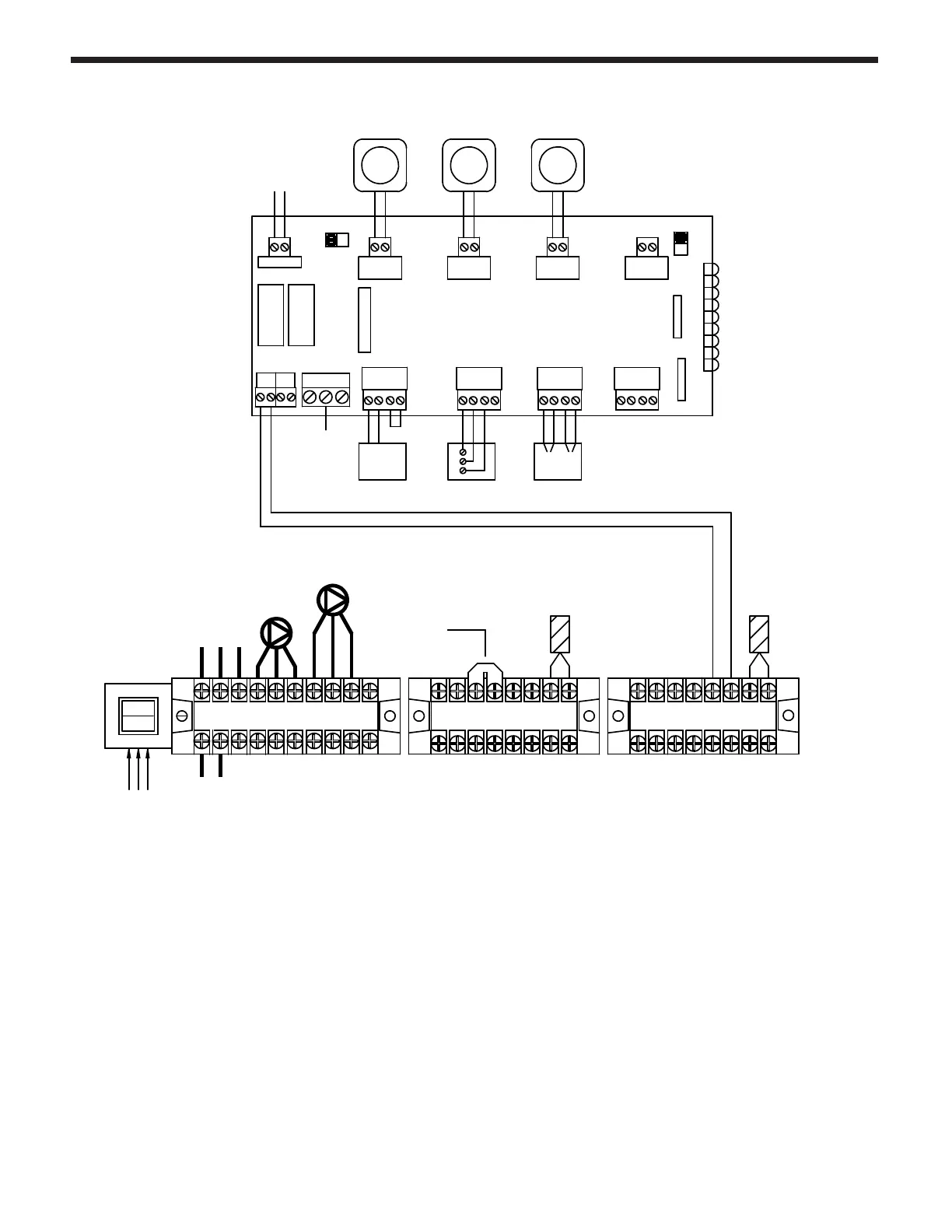

Wiring with zone valves and indirect DHW tank pump
1. Taco ZVC 404 used for illustrative purposes; other, similar zone valve control panels can be used. The control panel
does not require Hot Water Priority and it should be switched o󰀨 on the ZVC 404 because it is provided by the FTHF
boiler control.
2. Connect the end switch of the zone valve panel back to the T/T terminals on the FTHF boiler.
3. Connect the system pump for the zone valves to the System Pump terminals.
4. Connect the DHW pump for the Indirect Tank to the DHW Pump terminals.
5. Connect the outdoor sensor (OS) to the OS terminals for outdoor reset operation.
6. Do NOT bring 24 V back to the T/T terminals. Only a dry contact switch is permitted.
7. The tank aquastat or DHW sensor connects back to the DHW sensor terminals. Use parameter 39 in Section 5.7
to dene aquastat or DHW sensor setting to the boiler.
