9.2 Final Check Lists
Final check: Installation Conditions.
• Is the Boiler placed level on a oor with su󰀩cient
strength?
• Is there a oor drain near the Boiler?
• Are there any combustible materials near the Boiler
and vent pipe?
• Is the air supply su󰀩cient for proper operation of
the Boiler?
• Are the proper service clearances maintained?
• Is the distance between the Boiler and point of vent
termination minimized?
• Is the proper distance from windows, doors, and
other intake vents maintained?
Final check: Gas pipe installation
• Is the gas supply line equipped with a manual shut
o󰀨 valve near the boiler?
• Is the gas supply line a minimum of 3/4˝ inner
diameter?
• Is the gas supply line length and diameter adequate
to deliver the required BTU’s?
• Has the gas supply line pressure been measured?
• Does the supply gas type match the type indicated
on the boiler rating plate?
Final check: Air/Vent pipe installation
• Has the Boiler been vented with 3˝ or 2” PVC,
CPVC, Polypropylene (PP), Stainless Steel or PP
Flex Gas Vent (S636 PVC, CPVC) for Category IV
appliances in accordance with this manual and/or
your local code?
• Is the vent termination at least 12˝ above the
exterior grade?
• Is the total vent length within the maximum vent
length restriction?
• Have you checked the air/vent piping for leaks?
• Have you properly supported the vent termination?
• Are all vent runs properly supported?
• Is the vent sloped upward toward the vent
termination at a rate of 1/4˝ per foot (2% grade)?
Final check: Condensate drain installation
• Have you installed a condensate drain line from the
Boiler to a oor drain or under sink discharge point?
Final check: Setting the DIP switches
• Are all DIP switches correctly set on the main board?
• Have you lled the condensate trap with water or
vegetable oil to avoid drying out the trap?
• When required, have you installed a neutralizer
and condensate pump (in or near the boiler) and
plugged the condensate pump into an electrical
outlet?
Final check : Connecting the power supply
• Please check that the power is 120V AC.
• Have you checked the polarity of the electrical
connection?
Final check : Pressure relief valve
• Have you properly installed an approved pressure
relief valve on the boiler?
Final check : Burner ames
• The burner ame must be checked periodically for a
constant proper blue color.
• If the ame does not appear normal, the burner may
need to be cleaned.
• If the burner needs to be cleaned, it must be
performed by a qualied service technician.

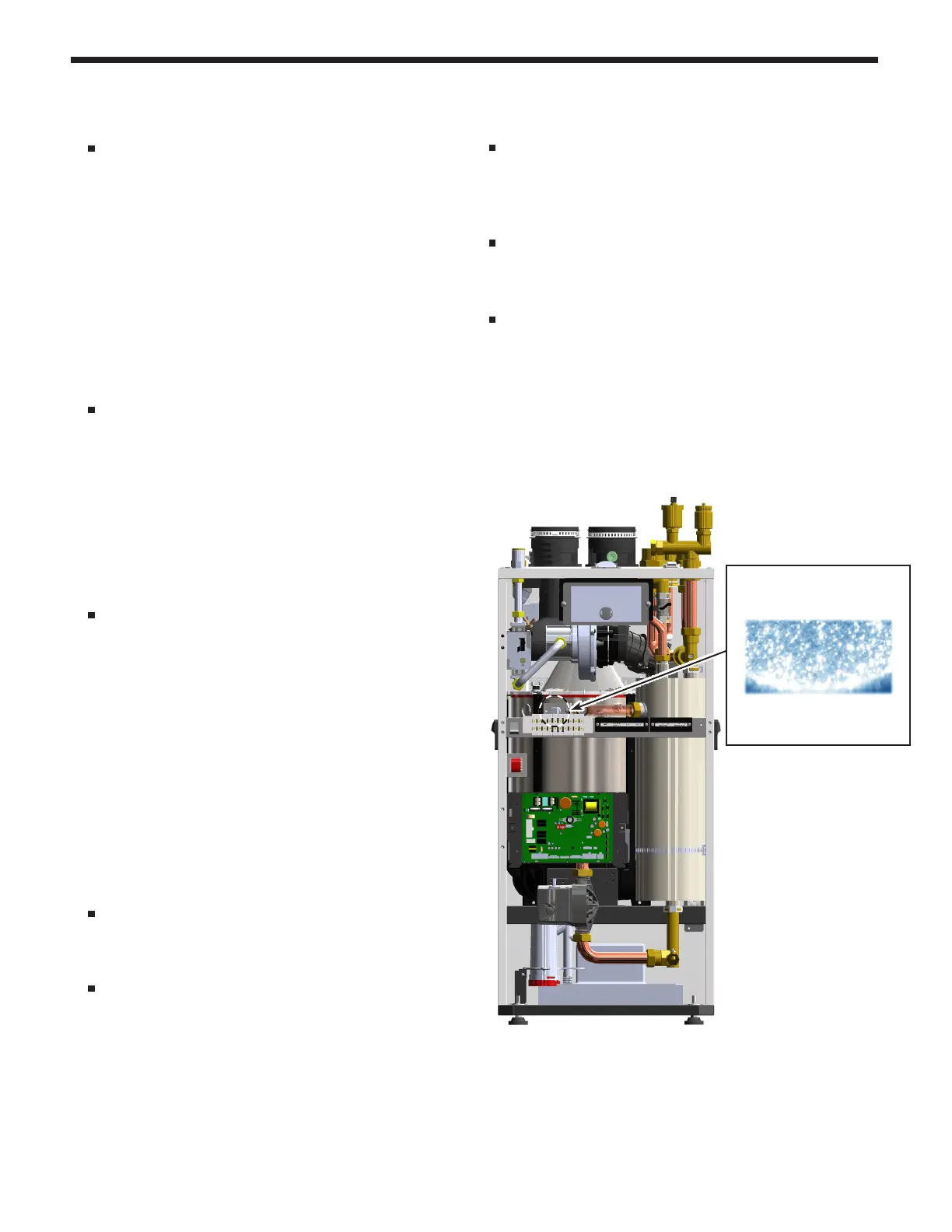

Sight Glass
Blue ame
