The FT Series Floor Standing, Heating Only Boiler
Page 7
# Name of Component
1 Pressure Relief Valve
2 Air Vent (air eliminator)
3 Boiler Return Connection
4 Boiler Supply Connection
5 Vent Pipe Collar
6 Boiler Pressure Gauge
7 Air Intake Collar
8 Gas Inlet Adapter
9 Air/ Gas Venturi
10 Gas Valve
11 BLDC Fan (Blower)
12 Low Water Cut O
13
Burner High Limit Switch
14 Flame Detecting Sensor
15 Manual Power Switch (ON / OFF)
16 Heat Exchanger
17 Main PCB
18 Boiler Pump
19 Blocked Condensate Switch
20 Condensate Trap
21
Condensate neutralizer and Drain pump
(optional equipment)
22
Drain Valve
23 Low Loss Header
24 Terminal Block
25 Overheat Temperature Sensor
26 Sight Glass
27
Igniter
28 Exhaust Pipe
29 Control Panel and Display
30 Air Pressure Sensor

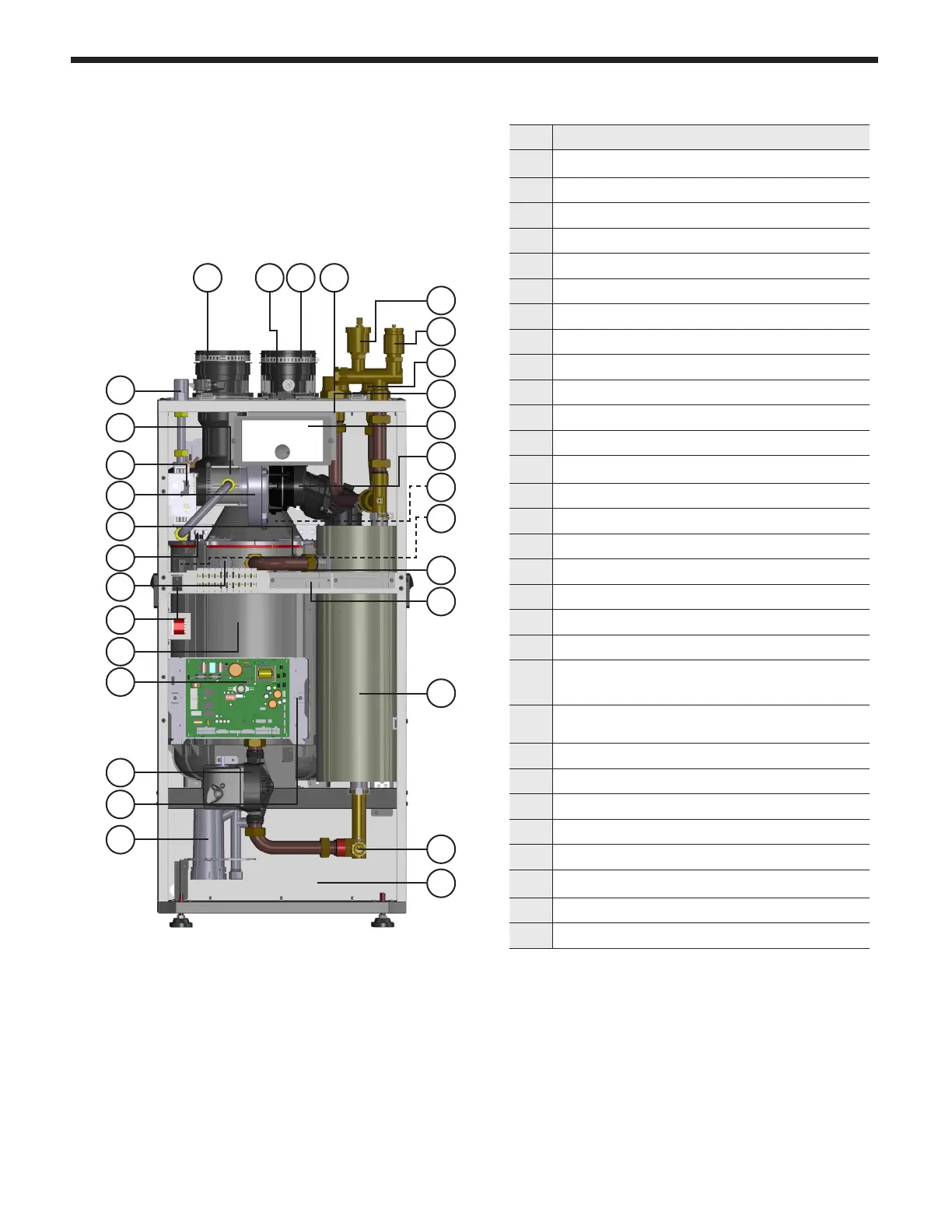

2.4 Names of Components
1
2
3
5 467
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
28
27
29
30
