Intertek FT Series - Dimensions

Page 6
Description Diameter
A Air Intake Collar 3”
B Vent Pipe Collar 3”
C Boiler Supply 1-1/2” NPT
D Boiler Return 1-1/2” NPT
E Gas Inlet 3/4” NPT
F Condensate Line 1/2” (no NPT)
G Pressure Relief Valve & Air Vent 1” NPT

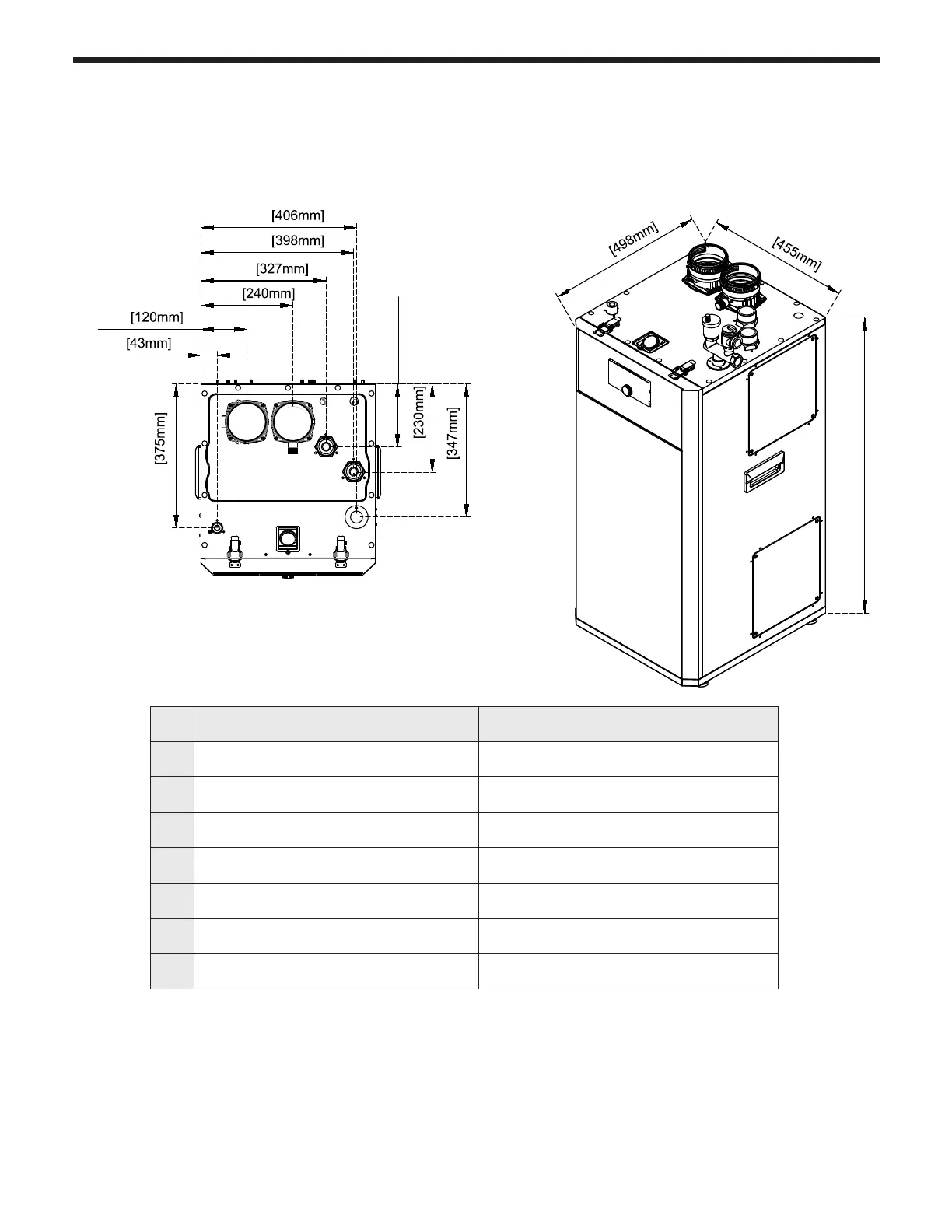

2.3 Dimensions
C
I
D
E
B
A
15-5/8˝
12-7/8˝
9-1/2˝
4-3/4˝
1-3/4˝
14-3/4˝
6-1/2˝
[164mm]
9˝
13-5/8˝
19-5/8˝
17-7/8˝
38-1/4˝
[972 mm]
F
G
16˝
