Connecting the system to other types of pump (with different type of thread or no
thread):
The Saltwater System can also be adapted to other filter pumps with different thread or those
without a thread on the connection.
Connection to 1-1/4” (32mm) hose:
1
. Connect one end of adaptor B
(8)
to the connector hose
(7)
. Tighten securely.
2
. Now, connect the other end of adaptor B
(8)
to the filter pump outlet. Tighten securely.
Connection to 1-1/2” (38mm) hose with clamp:
1
. Connect the connector hose
(7)
to the filter pump outlet connection with a large hose clamp.
Tighten securely.
SETUP INSTRUCTIONS (continued)

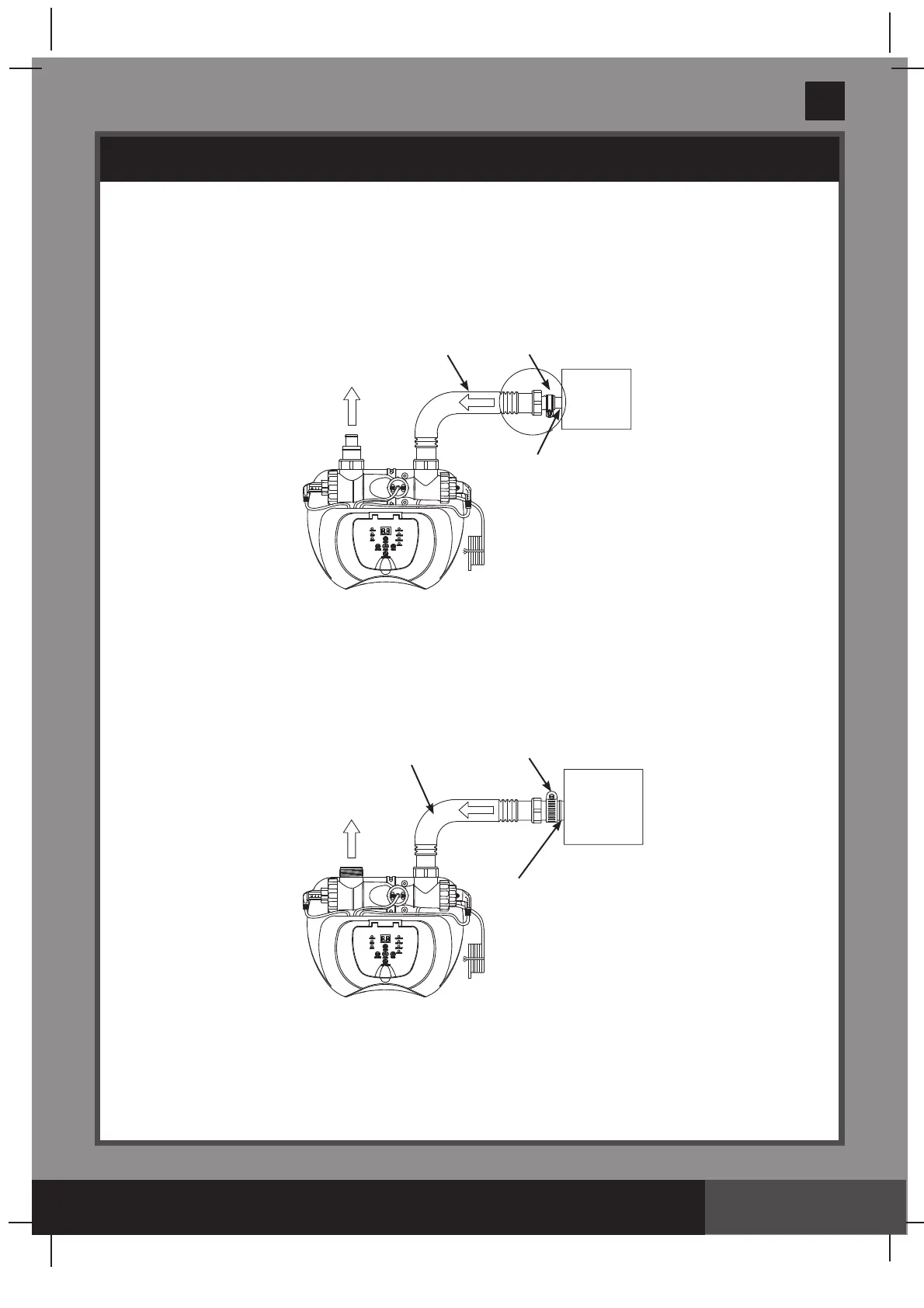

ID 1-1/4” (32mm)
CONNECTION
SALTWATER SYSTEM WITH E.C.O.
(ELECTROCATALYTIC OXIDATION)
FILTER
PUMP
7
8
LARGE HOSE CLAMP
7
FILTER
PUMP
ID 1-1/2” (38mm)
CONNECTION
SALTWATER SYSTEM WITH E.C.O.
(ELECTROCATALYTIC OXIDATION)
