Invacare Action3 Junior - Adjusting Calfpad Height; Adjusting the Hanger Abduction Angle

SECTION 2—FRONT HANGERS
10
Adjusting the Footplate Angle
1. Using the mounting screw (M6), adjust to the desired angle (Tooth Plates) by rotating
the footplate.
2. Securely tighten mounting screw (M6).
3. If necessary, repeat STEPS 1-2 to adjust remaining footplate angle.
Adjusting Calf pad Height
4. Loosen the fixing screw that secure the calf pad bracket to the elevating legrest
assembly.
5. Slide the calf pad bracket up or down until the desired calf pad height is obtained.
6. Firmly tighten the fixing screw securing the calf pad bracket to the elevating legrest
assembly.
7. If necessary, repeat STEPS 1 - 3 to adjust remaining calf pad bracket.
Adjusting the Hanger Abduction Angle (2 positions 0°or 30°)
1. Loosen fixing screw (M5) securing the locking mechanism of the hanger on the
vertical tube of the frame.
2. Adjust to desired angle (0° or 30°), firmly tighten fixing screw (M5).
3. If necessary, repeat STEPS 1-2 to adjust remaining hanger angle.
Calf pad
Knob
Fixing Screw
Mounting
Screw (M6)
Locking Knob

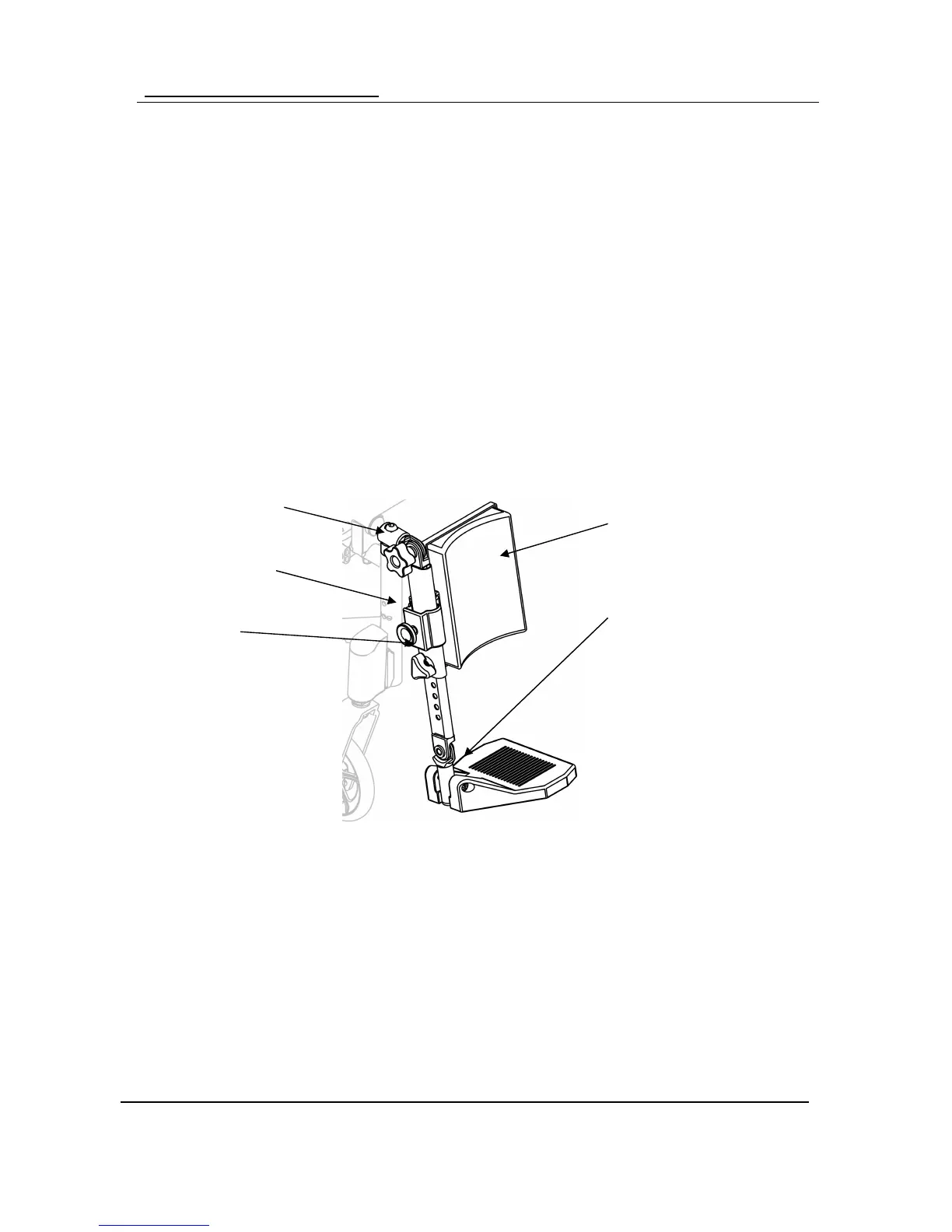

FIGURE 2.5 Adjusting Elevating Legrest Height and Calf pad Height
