SECTION 5—REAR WHEELS/FRONT CASTERS
Adjusting Caster Assembly Position
NOTE: For this procedure, refer to FIGURE 5.11.
1. Remove the two mounting bolts that secure the caster assembly to wheelchair frame.
NOTE: To adjust the castor position on both sides, use 4 new mounting pre-glued bolts
(M6).
2. Move the caster assembly to one of two positions. Refer to Detail “A” of FIGURE 5.11.
NOTE: Both caster assemblies should be set at the same angle.
3. Tighten the new mounting pre-glued bolts (8/9 Nm) that secure the caster assembly to
the wheelchair frame.
4. Repeat STEPS 1 to 3 for the other caster assembly.

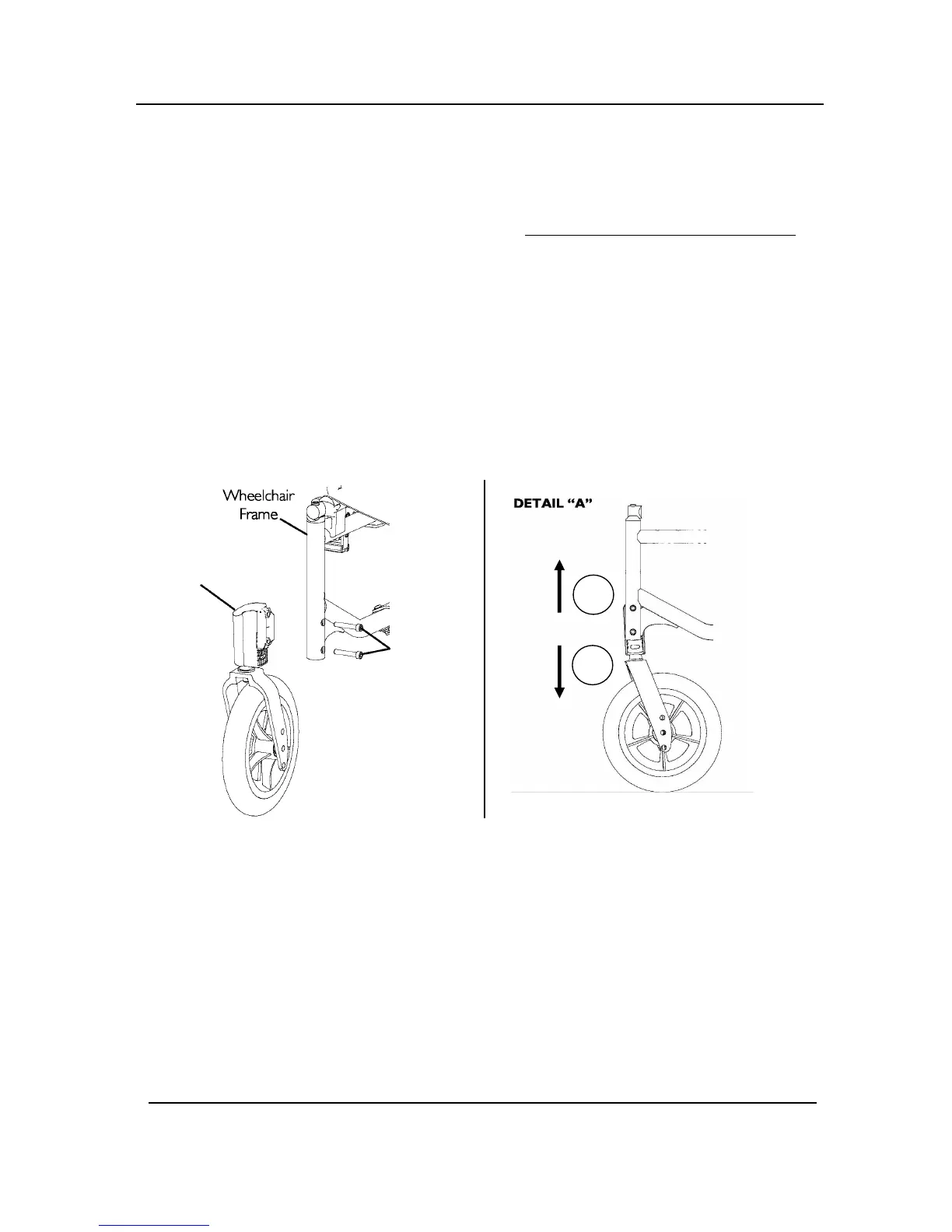

FIGURE 5.11
Adjusting Caster Assembly Position
Mounting
pre-glued
Bolts
Caster
Assembly
To Next Page
