SECTION 4—SEAT/BACK
19
Adjusting the Height Adjustable Back
NOTE: For this procedure, refer to FIGURE 4.6.
1. Loosen, but DO NOT remove, the height adjustment knobs.
2. Reposition the back canes to the desired height.
NOTE: Both back canes should be adjusted to the same height.
NOTE: DO NOT raise push handles to maximum height when tilting the chair.
3. Tighten the height adjustment knobs.
NOTE: To prevent accidental removal of a back cane, the spring button lock will engage
at the full extension of the back cane. To disengage the button, press the button located
below the height adjustment, under the upholstery, on the back cane (Detail “A”).

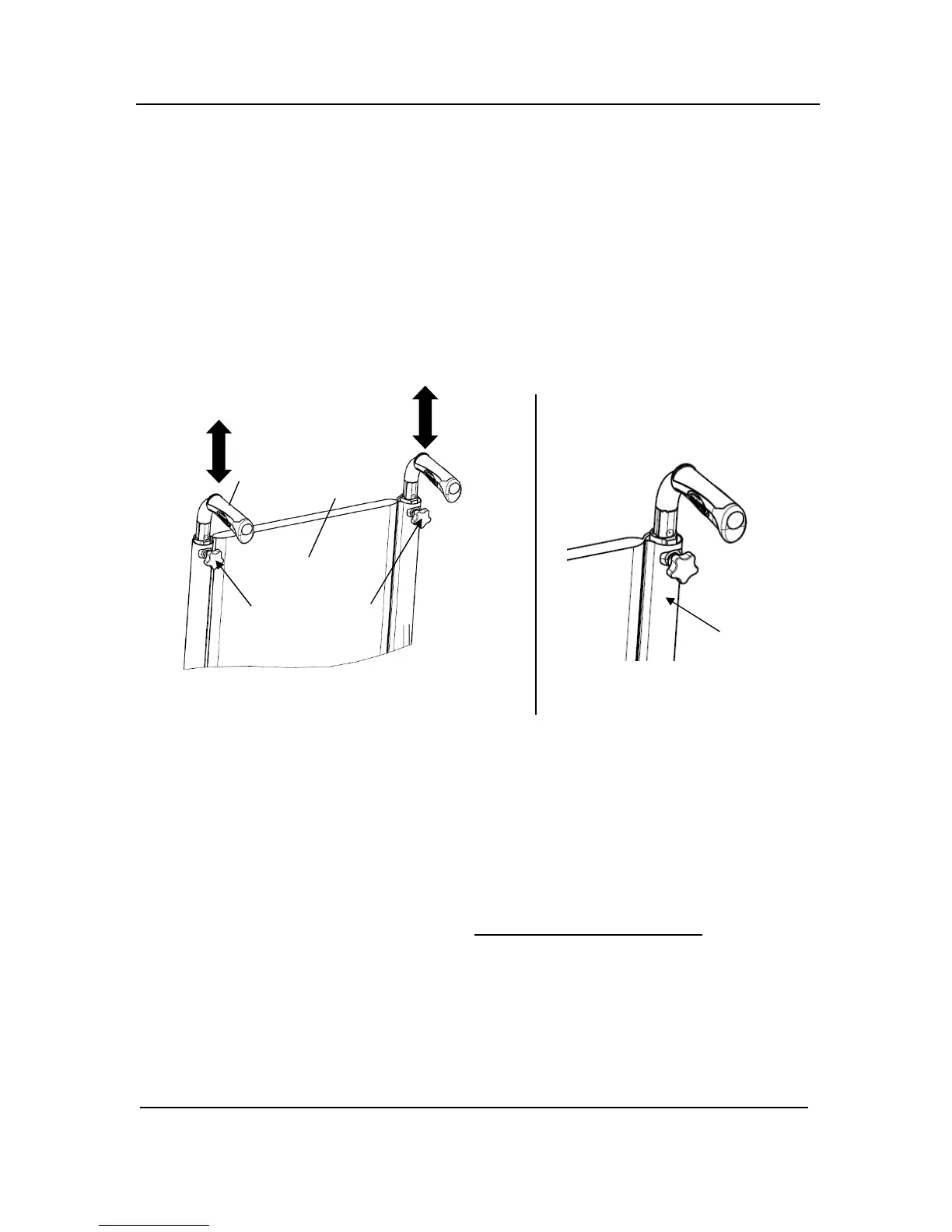

FIGURE 4.6 Adjusting the Height Adjustable Backrest cane
Removing/Installing different type of Backrests
NOTE: For this procedure, refer to FIGURE 4.7, next page.
Folding backrest
NOTE: To Install the Fixed/Folding backrest, reverse this procedure from STEP 3 to 1.
1. Remove the back cane bracket. Refer to Removing Back Cane Bracket paragraph.
2. Pull up on the seat upholstery.
3. Remove the two mounting screws and locknuts (M6) that secure the back cane
bracket to the wheelchair frame.
4. Install the new set including the appropriate backrest upholstery
NOTE: Both back canes should be set to the same adjustment hole.
To Next Page
