SECTION 8—OPTIONS
W A R N I N G
After ANY adjustments, repair or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may occur.
When adjusting the depth of the Swing Away Tray, make sure not to squeeze the
stomach of the user.
Installing/Adjusting Swing Away Tray
Installing Swing Away Tray

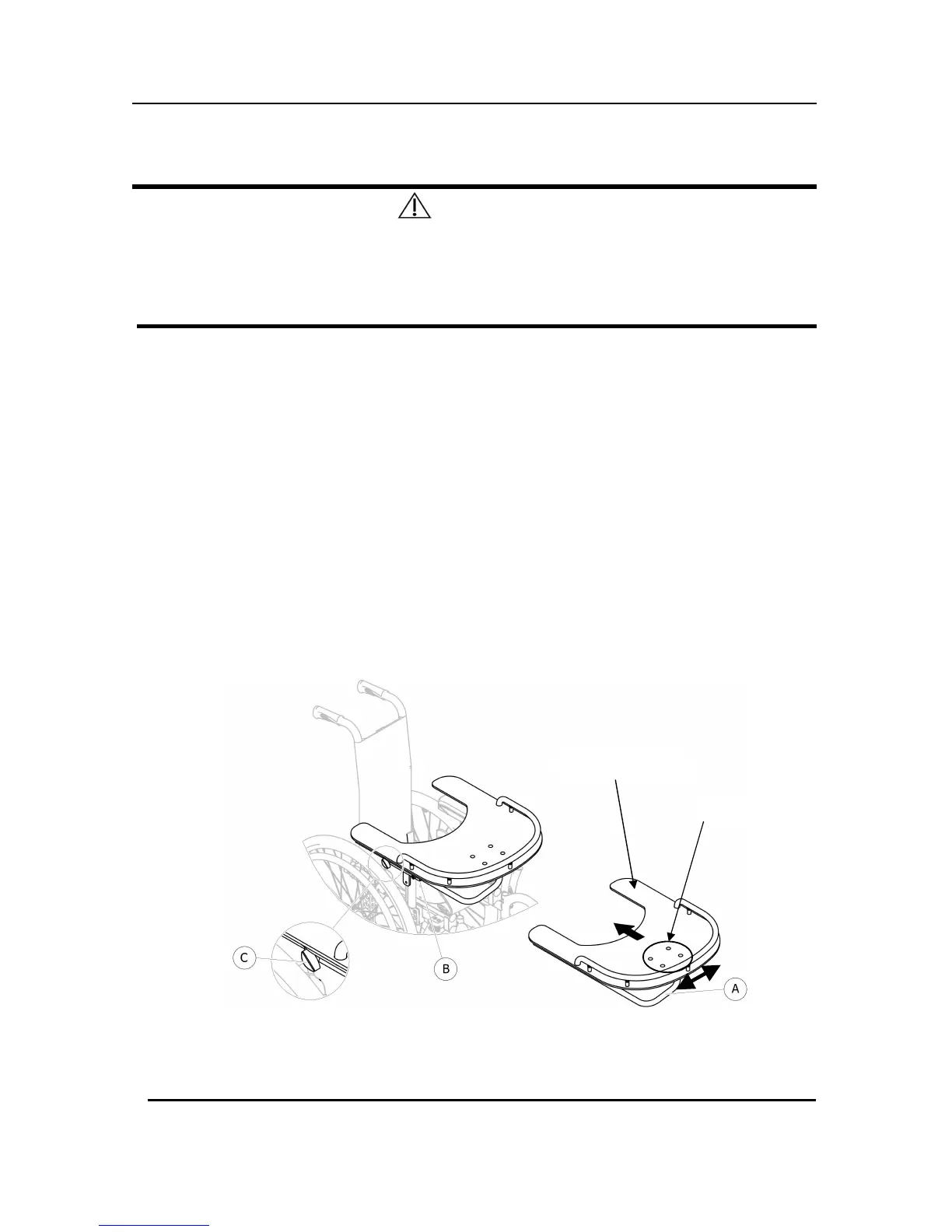

NOTE: For this procedure, refer to FIGURE 8.1.
1. Install the “T” support tray B on the vertical tube of the armrest with the two bolts (M5).
2. Insert the tube A of the Swing Away Tray into its support B below the arm pad.
3. Slide the Swing Away Tray forwards or backwards to adjust to the required depth.
4. Firmly tighten the knob C.
5. .Adjust the Swing Away Tray sideways thanks to the four mounting screws
