Invacare Action3 Junior - Adjusting Rear Wheel Height

29
SECTION 5—REAR WHEELS/FRONT CASTORS
Adjusting Rear Wheel Height
NOTE: For this procedure, refer to FIGURE 5.7, next page.
1. Remove the rear wheel. Refer to Removing/Installing Rear Wheels paragraph.
2. Remove the locknut and washer that secures the axle bracket to the axle plate
3. Align the axle bracket with one of the five adjustment holes on the axle plate.
4. Secure the axle bracket to the axle plate, at the desired height, with the locknut
and washer.
5. Install the rear wheel. Refer to Removing/Installing Rear Wheels paragraph.
6. Repeat STEPS 1 to 5 for the other rear wheel.
NOTE: Both rear wheels should be set at the same position.

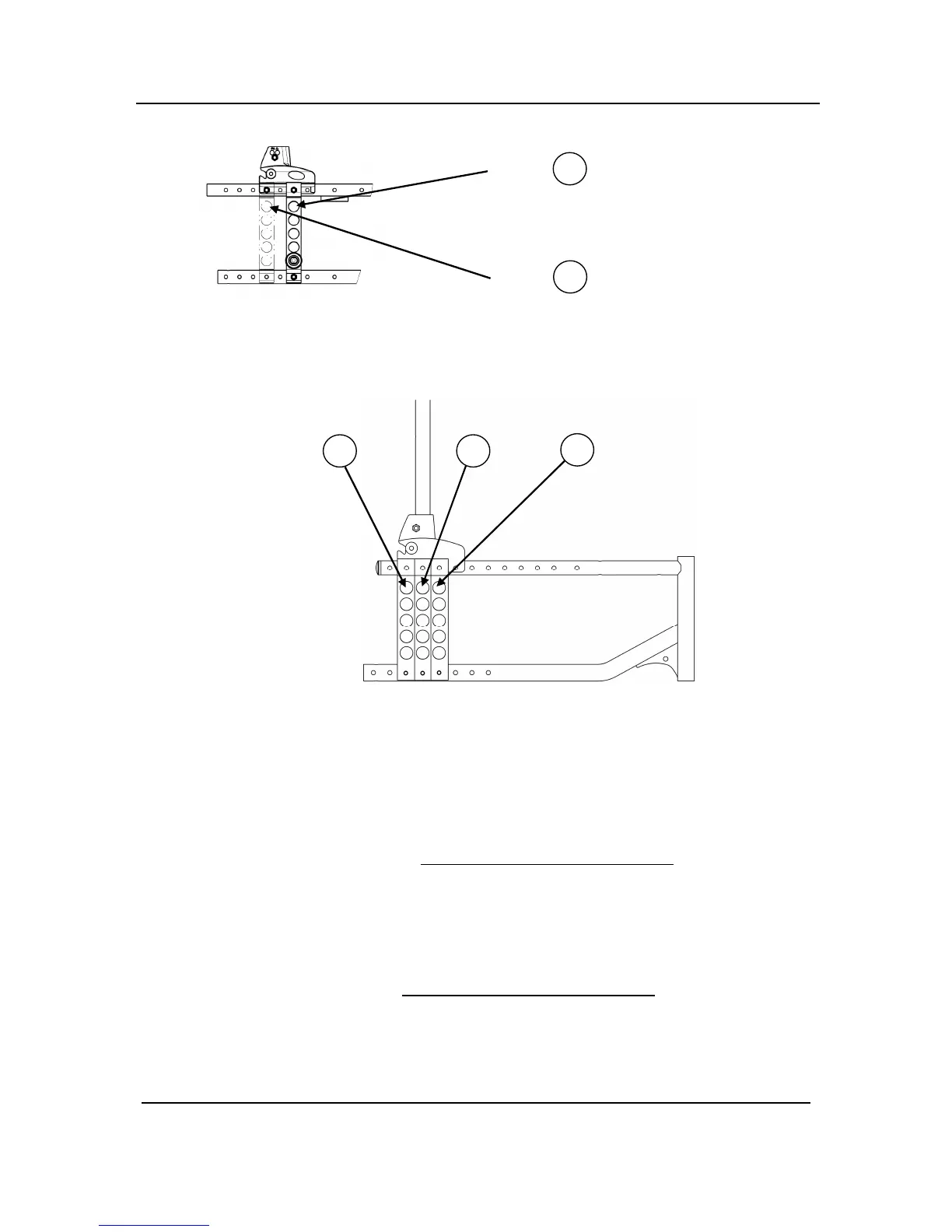

FIGURE 5.6 Possible Positions of Wheel Plate
DETAIL “A” Factory Setting
Position Fixed backrest
A
Position Recliner backrest
B
C
A
B
