SECTION 3—ARMRESTS
12
Removing/Installing and Adjusting Mudguard
NOTE: For this procedure, refer to FIGURE 3.2.
Removing/Installing removable armrest
NOTE: To remove the mudguard, reverse this procedure.
1. Previously press on the locking mechanism A located at the bottom of the mudguard
vertical bracket.
2. Pull /Push the mudguard by the arm cushion out of the holder.
3. To adjust how easy or difficult it is to pull/push the mudguard out of the holder,
change the degree to which the 4 screws D (M6) are tightened.
Adjusting Mudguard Height
NOTE: For this procedure, refer to FIGURE 3.2.
4. Loosen the screw B (M6) in the groove C of
the armrest tube.
5. Move the mudguard upwards or downwards
until you reach the desired height, while
keeping screw B (M6) in place (at the top
edge of the holder).
6. Tighten firmly the screw B (M6).
7. Perform the setting on both sides.
Adjusting Mudguard Depth
8. Previously suppress the expandable rivet
(5 mm).
9. Adjust in the other depth position.
10. Reinstall a new expandable rivet (5mm).
11. Perform the setting on both sides.

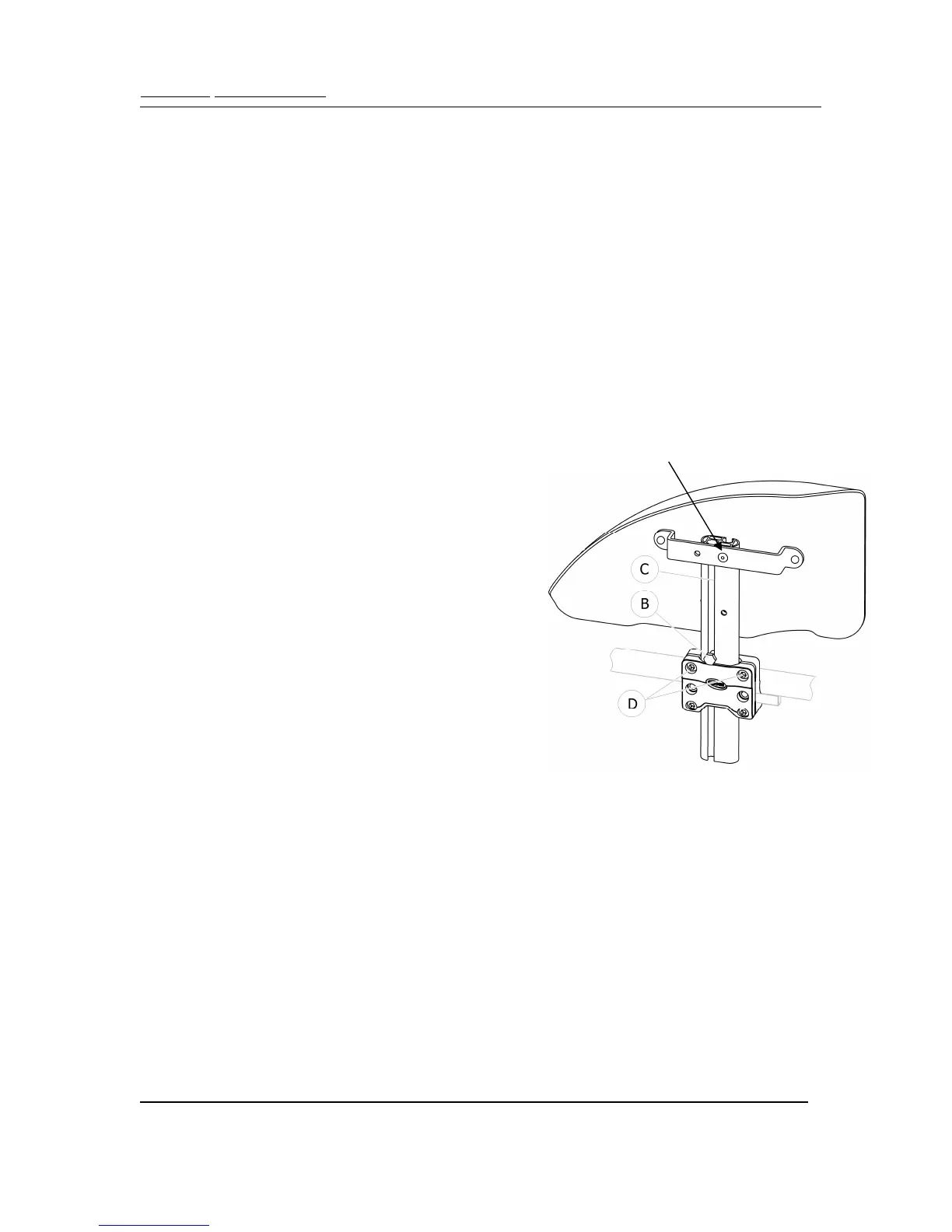

FIGURE 3.2 Removable Mudguard
Rivet (5 mm)
