Removing Back Cane
NOTE: For this procedure, refer to FIGURE 4.1.
1. Remove the mounting screw and locknut (M6) that secures the back cane to the back
cane bracket.
2. Repeat STEP 1 for the other back cane.
3. Remove the back canes out of the back cane brackets.
Removing/Installing Seat Upholstery
NOTE: For this procedure, refer to FIGURE 4.2.
NOTE: To install the seat upholstery, reverse this procedure.
1. Fold the wheelchair.
2. Remove the mounting screw (Torx) that secures the upholstery to the front and back rails.
3. Remove the end caps from the front of the seat rails.
4. Slide the seat upholstery out of the seat rails.

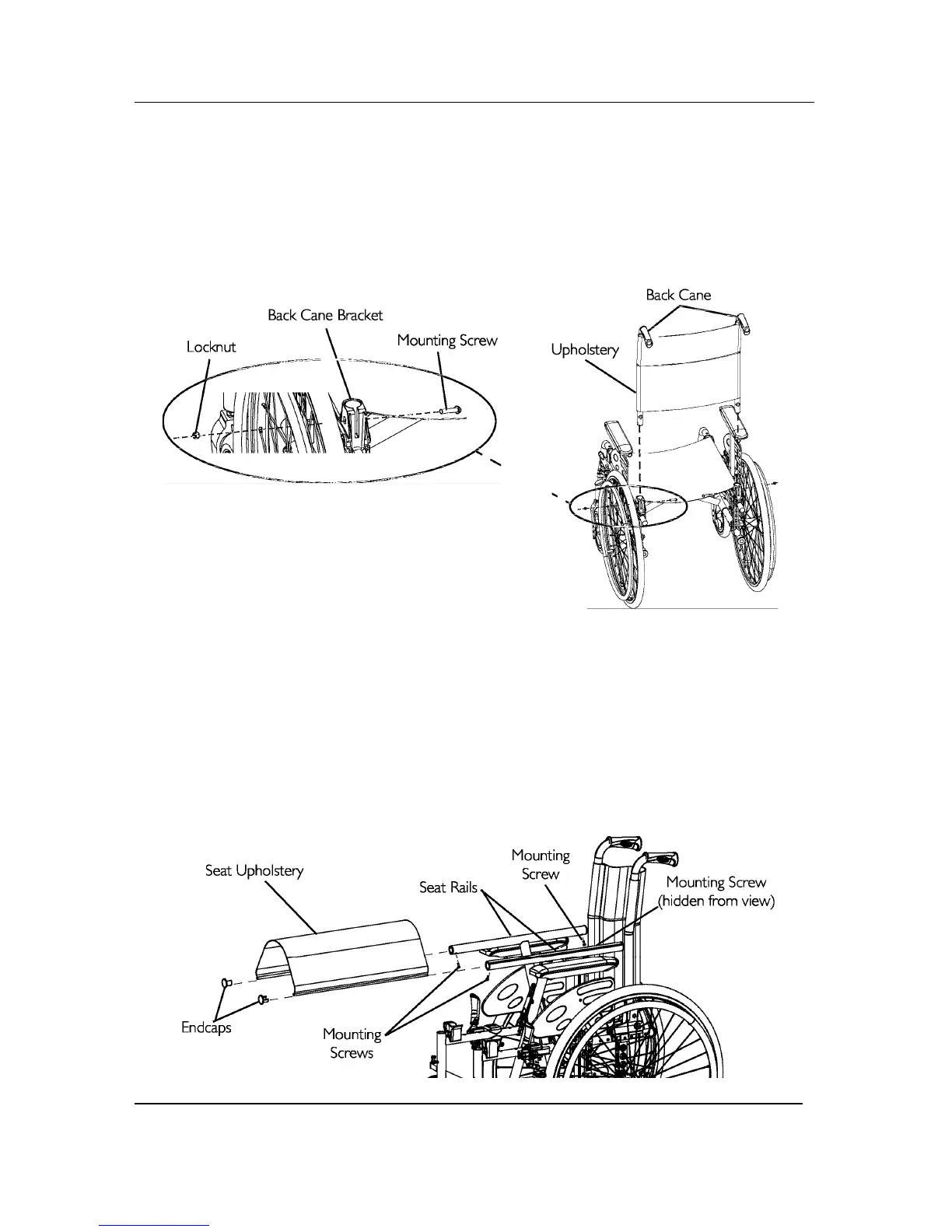

FIGURE 4.2 Removing/Installing Seat Upholstery
