SECTION 6—SEAT-TO-FLOOR HEIGHT
34
SECTION 6—SEAT-TO-FLOOR HEIGHT
W A R N I N G
After ANY adjustments, repair or service and before use, make sure all
attaching hardware is tightened securely - otherwise injury or damage
may occur.
Seat Angle
NOTE: For this procedure, refer to FIGURE 6.1.
NOTE: Refer to Measuring Seat - to - Floor Height paragraph for measuring instructions.
NOTE: Invacare recommends that the rear seat - to - floor height be AT LEAST 25 mm shorter
than the front seat - to - floor height. Otherwise a forward seat angle can occur.
Subtract the rear seat - to - floor height measurement from the front seat - to - floor height
measurement to determine the amount of seat angle as shown in the example in
FIGURE 6.1.
Example:
460 mm Front Seat-to-Floor Height
- 415 mm Minus Rear Seat-to-Floor
Height (5° +/-1° ) Equals Seat Angle

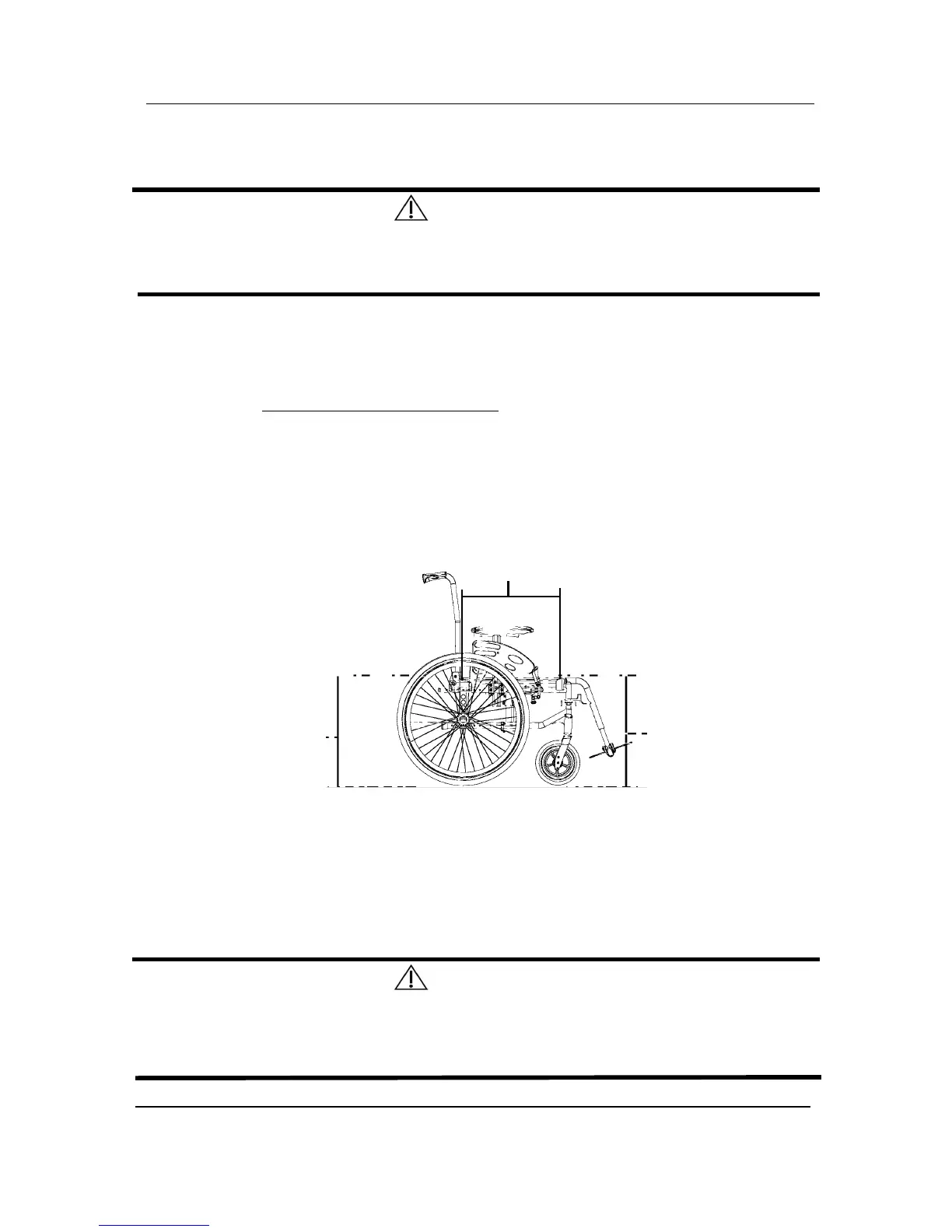

FIGURE 6.1 Seat Angle
W A R N I N G
Because of the parts mechanical tolerances and all adjustments possible
(+/- 1°) the seat angles possible are 1,5° +/-1° or 5° +/-1° or 8,5° +/-1°
depending of the wheelchair assembly. Refer to table “Seat-to-floor
heights” paragraph.
Rear
Seat-to-Floor Height
Front
Seat-to-Floor Height
Seat Depth
=
3
5
0
m
m
