SECTION 4—SEAT/BACK
16
Removing/Installing Standard Back Upholstery
NOTE: For this procedure, refer to FIGURE 4.4.
Removing Back Upholstery
NOTE: To Install the Back Upholstery, reverse this procedure.
1. Remove the back canes. Refer to Removing Back Canes paragraph.
2. Remove the mounting screw that secures the back upholstery to the back canes.
Refer to Detail “A”.
3. Remove the back upholstery from the back canes. Refer to Detail “B”.

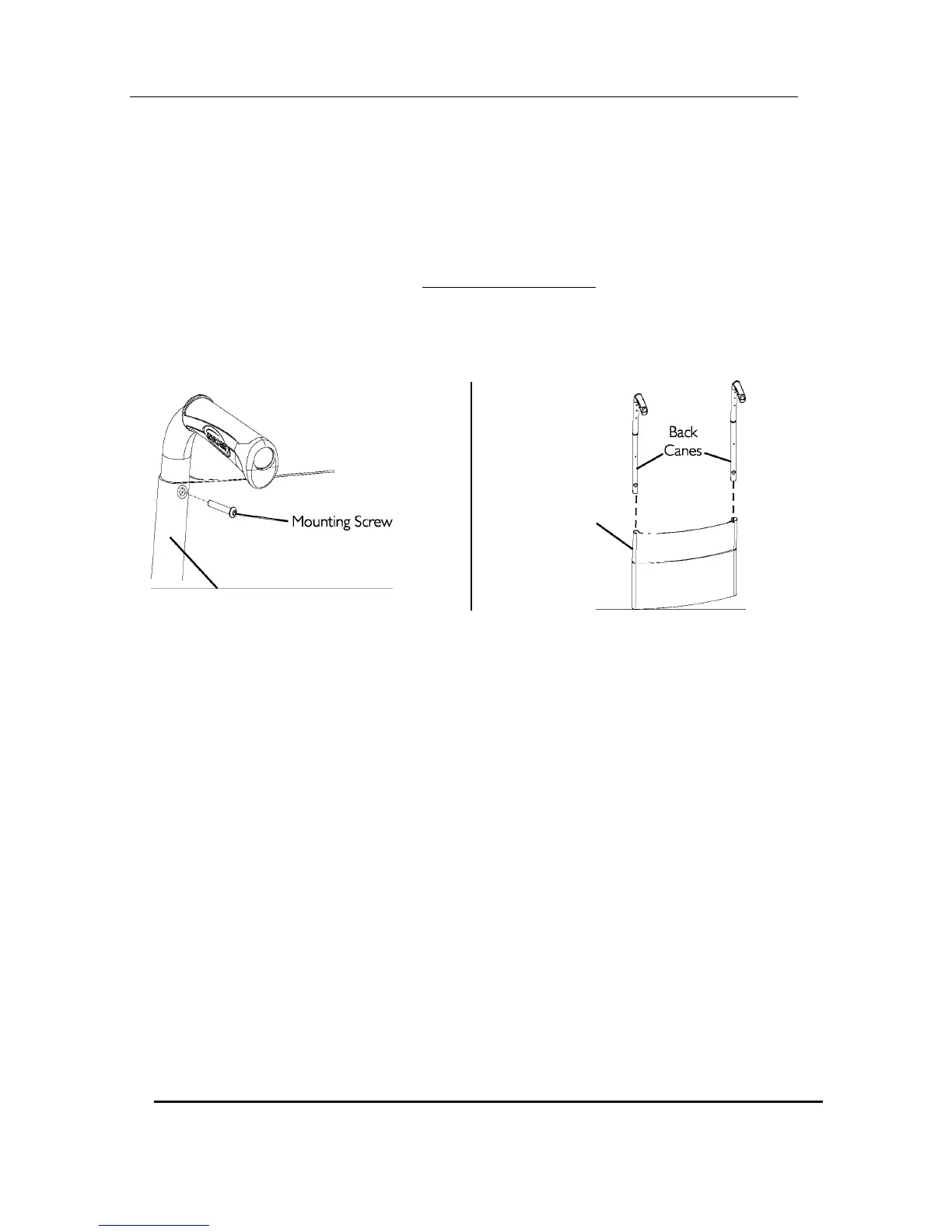

FIGURE 4.4 Removing/Installing Standard Back Upholstery
Back Cane
DETAIL “A”
DETAIL “B”
Upholstery
