SECTION 5—REAR WHEELS/FRONT CASTORS
25
NOTE: In order to obtain the desired front seat to floor height (for details, see Seat-to
Floor Height paragraph), it will be necessary to perform one or both of the following:
• Changing the mounting position on the fork. Refer to
Removing/Installing/Repositioning the Castor Assemblies paragraph.
• Changing the fork size or adding/removing height adjustment spacers. Refer to
Adjusting Forks paragraph.
• Changing the rear height positioning of the rear wheel and the front wheel.
Fixed Axle

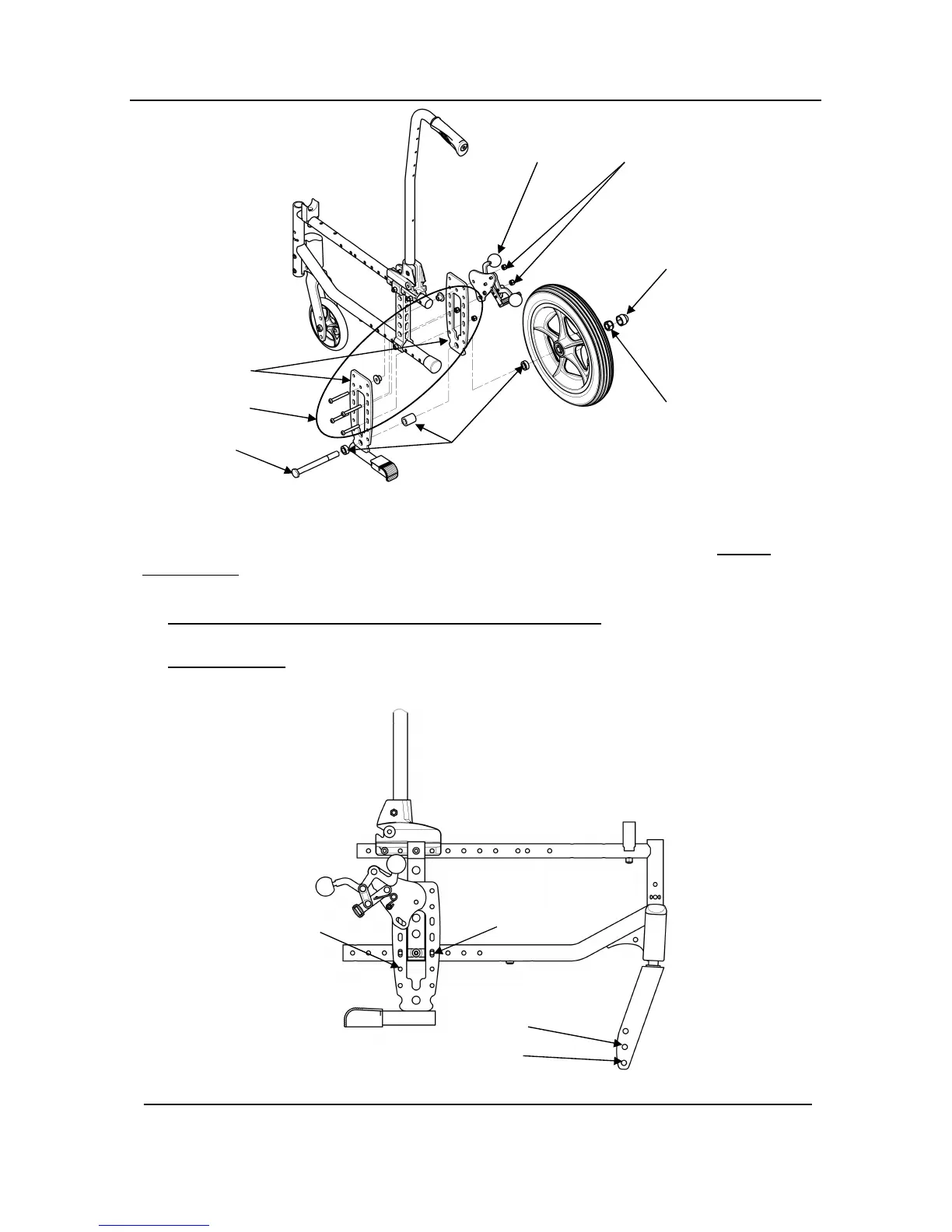

FIGURE 5.1
Removing/Installing Rear Wheels
Axle Brackets
Washers
Locknut
Dust Cap
Transit Brake
Brake Hardware
(including locknuts)
Axle Brackets
Hardware
1
2
1
= 43
5
m
m
2
=
460 mm
