1.7 Hoist system installation

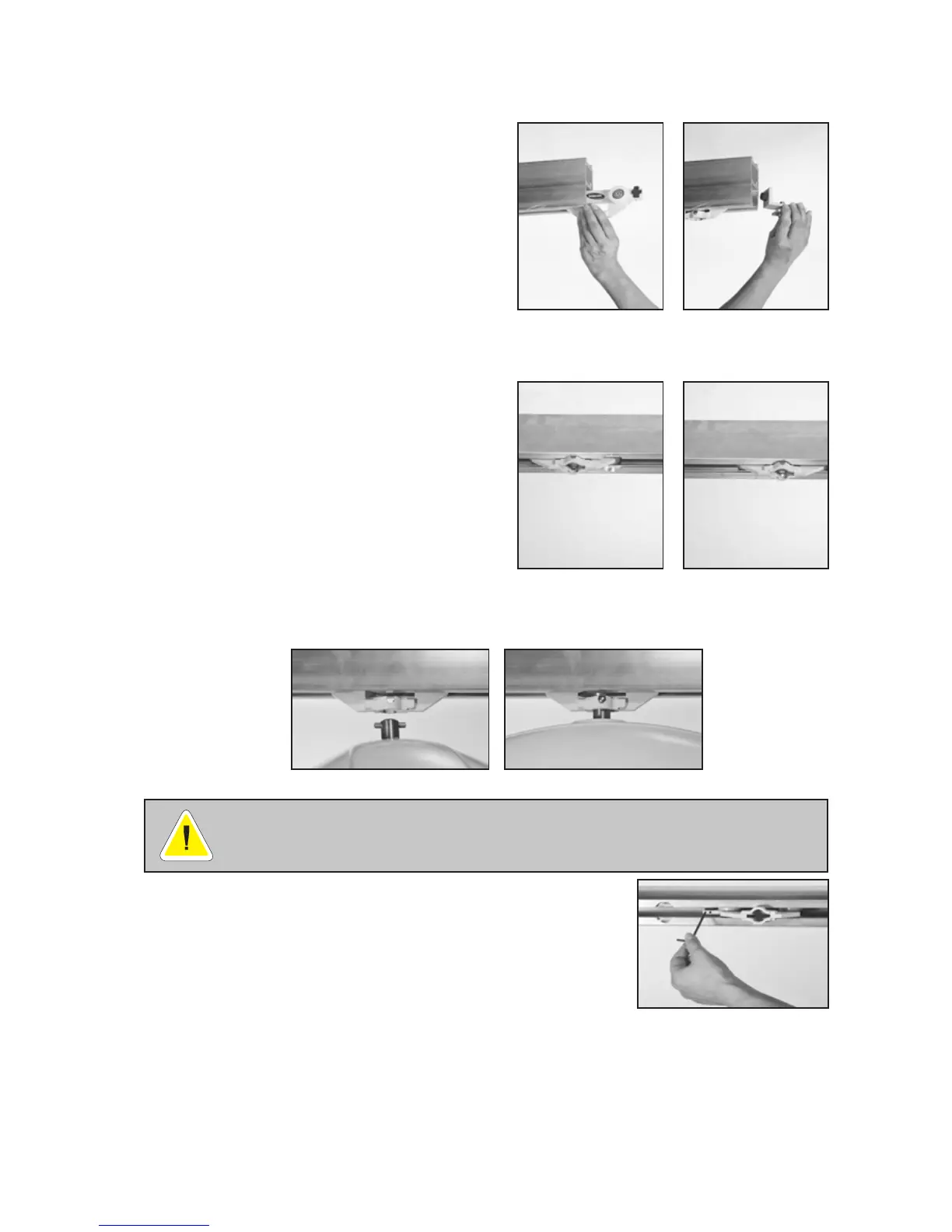

Prior to fitting the hoist, ensure that the hoist trolley is
mounted.
Remove the end stop that is attached to the rail track. The
trolley can then be inserted into the rail. (It is unimportant
which way the trolley is facing). The end stop must then be
reinstalled. See picture.
When mounting Robin
TM
, locate the hoist trolley at the
Ø 32 mm round recess in the rail. See picture.
Lift the hoist and push the suspension pin through the hoist trolley. Turn the hoist 90 degrees to the rail’s
longitudinal direction and place it as shown below. (
Note: Support the hoist while turning). See picture.
If Robin is correctly mounted into the trolley, it is now possible to pull the trolley back and forth
along the rail.
If there is excessive resistance, or if the trolley unintentionally rolls by itself
due to imbalance in the rail suspensions, adjust the friction brake using a 4 mm
Allen key.
See picture.
When the system is installed, the hand control must be connected, and the cord
for the emergency stop/lowering must be adjusted so it is within the user’s reach.
The system must be inspected before use;
see section »Before first time use«.
Robin is now ready to be used in the EC-Track
TM
system.
When using Robin in other rail systems, an alternative trolley must be used.
Contact Invacare® for information regarding approved systems.
