4.4 Flexiscope
Scope
Flexiscope
TM
is used with the Invacare© Robin
TM
ceiling hoist in connection with the transfer or moving of disabled
patients who require extended distance between the slings shoulder straps. Max. load: 200 kg.

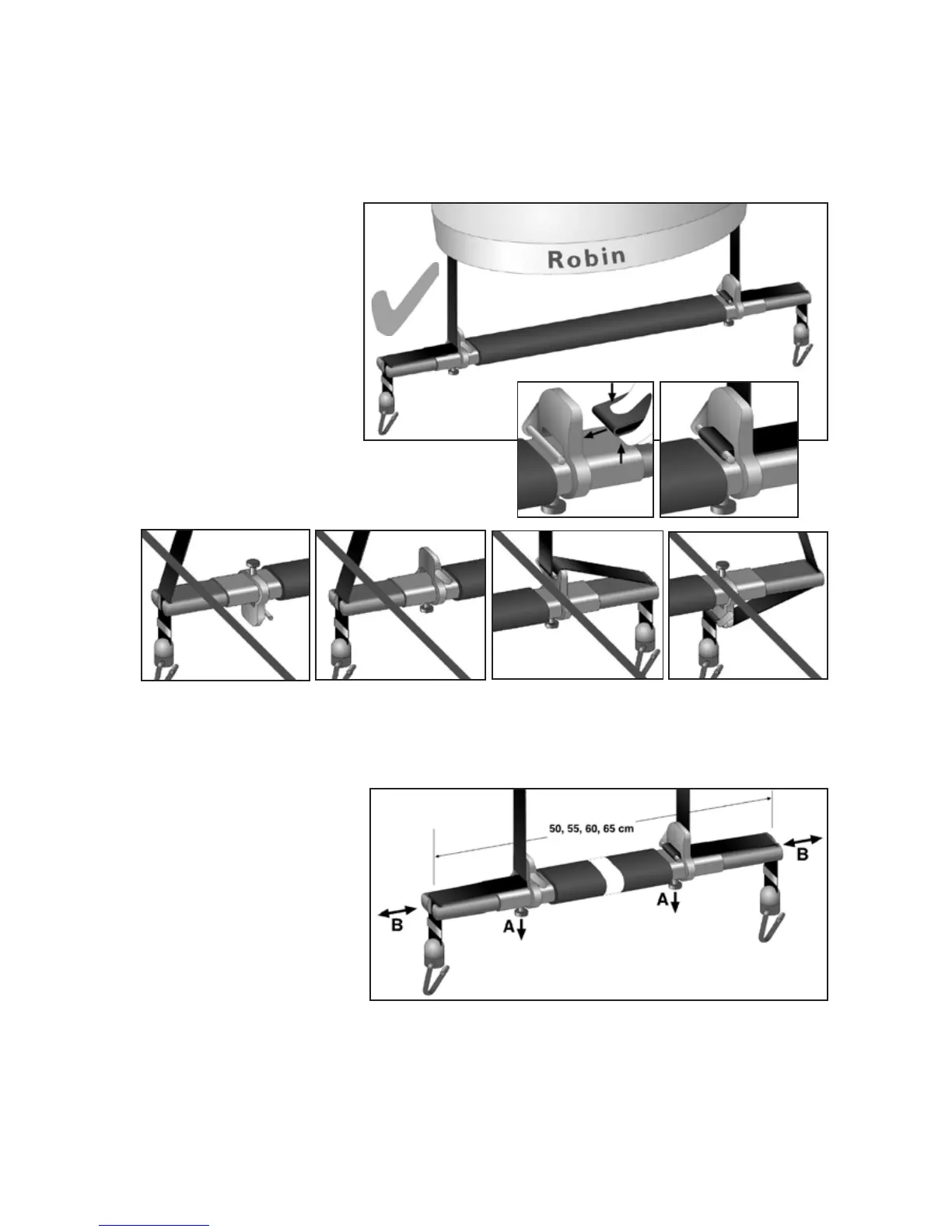

Installation
Installation of Flexiscope
TM
on
the lifting straps is carried out
according to the illustrations.
Adjustment
Alignment of the width is made by pulling the button A while moving the strap bar B to the desired position.
Note! Ensure that the bar is correctly engaged.
Maintenance and cleaning
Cleaning in connection with daily use:
All painted surfaces can be whiped off with a damp cloth. Only household detergents are allowed. Never use
acids, alkalines or solvents such as acetone or cellulose thinner.
Desinfection of Flexiscope
TM
- it must be whiped over with officially approved detergents only.
The black cover is removed from Flexiscope
TM
and can be mashine washed at 70ºC - do not tumbledry, bleach or dry
clean.
•
•
•
19
