10
4. Rails, Brackets & Accessories

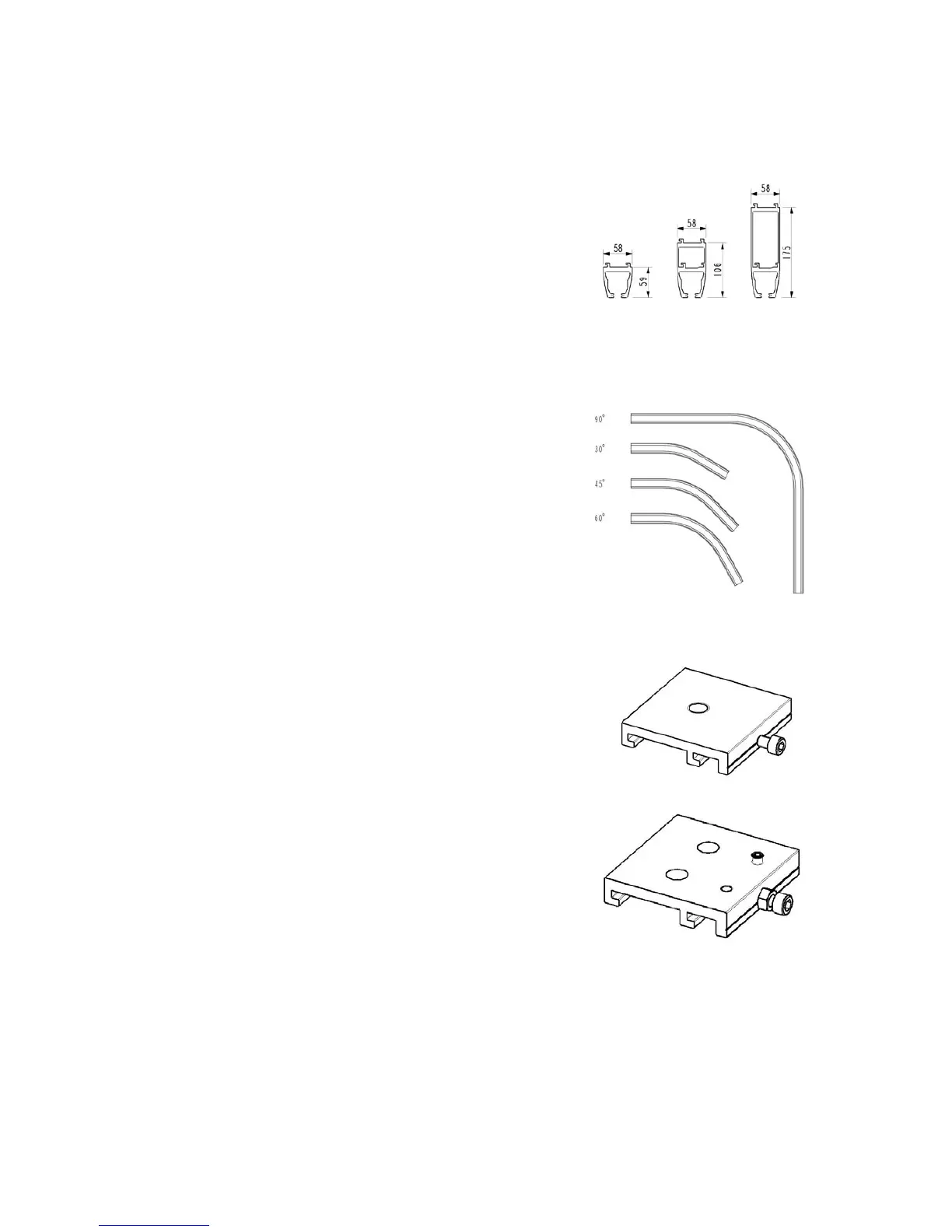

4.1 Rail profiles S, M & L
All rails are available in white or as anodized in natural.
Rail profile S is available in length of max 8 meters (white only 7.8 meters).
Max. width of span is 2 m, without support.
Rail profile M is available in length of max. 8 meters (white only 7.8 meters).
Max. width of span is 4 m, without support.
Rail profile L is available in length of max. 8 meters (white only 7.8 meters).
Max. width of span is 8 m, without support.
4.2 Curves 30°, 45°, 60° & 90°
All curves have a radius of 400 mm.
All curves are supplied as right or left curves, either white or
anodized in natural. Characteristics for right and left, see section 5.4.
Rail profile S with 90° angle. 0.6 m straight rail and 0.6 m of straight rail.
Rail profile S with 60° angle. 0.2 m straight rail and 0.2 m of straight rail.
Rail profile S with 45° angle. 0.2 m straight rail and 0.2 m of straight rail.
Rail profile S with 30° angle. 0.2 m straight rail and 0.2 m of straight rail.
4.3 Ceiling brackets, Quick
Ceiling brackets with hidden fixing parts.
Outer dimensions of bracket (70x68 ), (120x68) and (30x68) x 14 mm.
Used for ceiling installation of single-rail and traverse systems.
(70x68) ordinary ceiling suspension,
(120x68) rail coupling,
(30x68) curves.
To be installed as described in the installation instructions.
4.3.1 Brackets for traverse system and side hung wall brackets
Traverse bracket are used in connection with the assembly of a traverse
system.
The bracket is mounted beneath the traverse trolley, at the underhung
and partly between-hung traverse assembly.
The bracket is also used for side hung installation.
S-profil M-profil L-profil
