If the rails are mounted to a wall, the end stop is to be placed
so far into the rail that the hoist does not hit the wall
(see installation instructions).
In some countries/local areas there is a demand for double
securing of the end stops. Such extra securing can be acheived
by installing one of the following:
• Bufab MRX M5x16mm thread forming screw 10mm from
each end of the rail, 25mm from the rail underside
(the screw can be installed in a pre-drilled hole Ø4,3mm).
or
• Bufab R6B Ø6,3x22mm thread forming screw 10mm from
each end of the rail, 18mm from the rail underside.

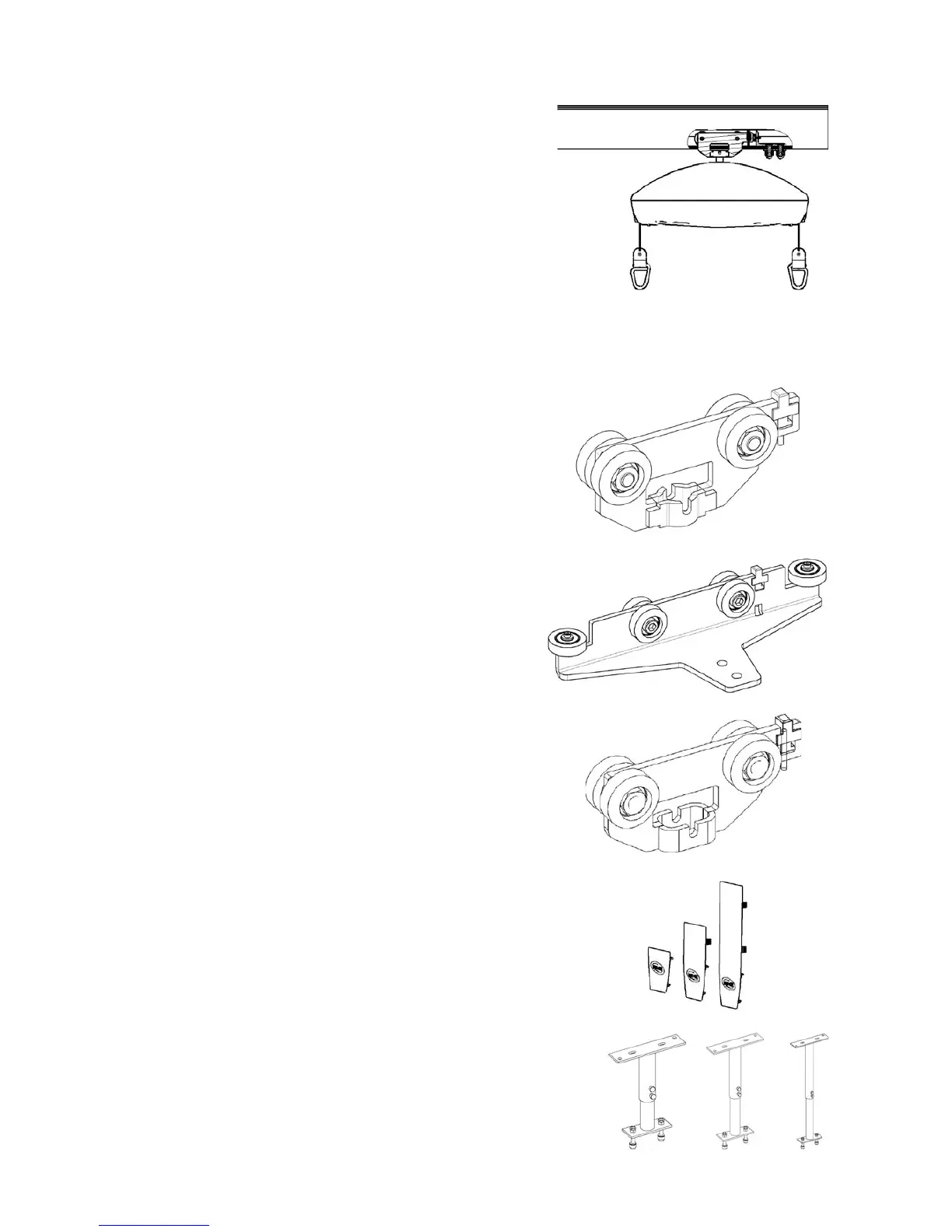

4.10 Trolleys
4.10.1 Hoist trolley
The hoist trolley is used for individual mono rail systems
as well as traverse systems.
The hoist trolley is used when a Robin
TM
ceiling hoist is to
be mounted in a EC-Track system.
Hoist trolleys are supplied in white or grey.
4.10.2 Traverse trolley
The traverse trolley is used when mounting a traverse system.
For a traverse system, 2 traverse trolleys are always used.
Traverse trolleys are supplied in white or grey.
4.10.3 Room-to-room trolley
The room-to-room trolley is used in EC-Track where transfer from
one room to another is required, typically through a doorway.
Room-to -room trolleys are supplied in white or grey.
4.11 Rail end plugs
Rail end plugs are supplied for rail profiles of 3 sizes,
as well as white or grey.
To be used at the closure of both ends of all rails.
Mounting: Press into the rail profile after the rail system
is mounted.
4.12 Pendles, adjustable
The pendles will be delivered with an adjustable interval of 20-30 cm,
28-46 cm, or 44-74 cm. All white coloured only.
Pendles are applied if there is a need for installing a lower rail system
than the original ceiling level. Can be used in hidden installation as well
as visible installations.
Must be installed as described in installation manual.
