25

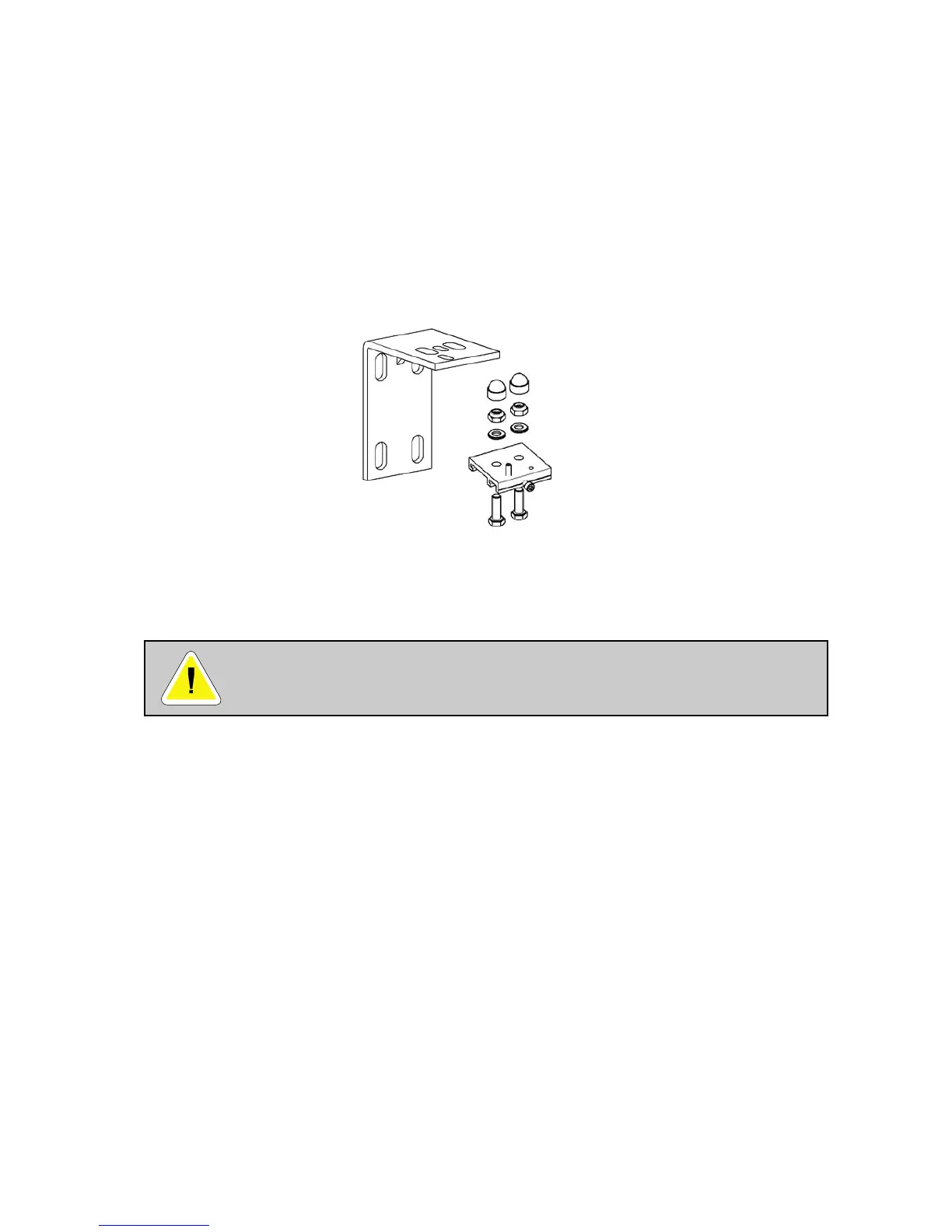

5.3.2 Wall bracket, side hung
When installing a rail system side hung, the parallel rails can be installed close to the wall.
When installing a rail system side hung, the wall must have such strength, that wall support legs are unnecessary.
When installing S profile, 2000 mm is the maximum distance between each fixation point, but at least 3 points are
necessary.
When installing M profile, 4000 mm is the maximum distance between each fixation point, but at least 3 points are
necessary.
Always measure the distance between both walls accurately, in the correct height and location of the system.
The wall bracket can be adjusted +/- 6mm. If more is required, use a plate of 6 mm between bracket and wall.
Note! Final apperance is influenced by the parallelism between wall and rail. Be accurate!
The traverse system measurements here, is the room size measured, deducted 206 mm (if between-hung
installed), and 62 mm (if under-hung installed).
Again, this requires an accurate measurement as well as some considering of the adjustability due to wall
unevenness.
Wall installation is dependent of the structure of the wall. Always follow recommendations in section 5.3.1
After installing the wall brackets and the two parallel rails, follow instructions in section 5.7.
