7

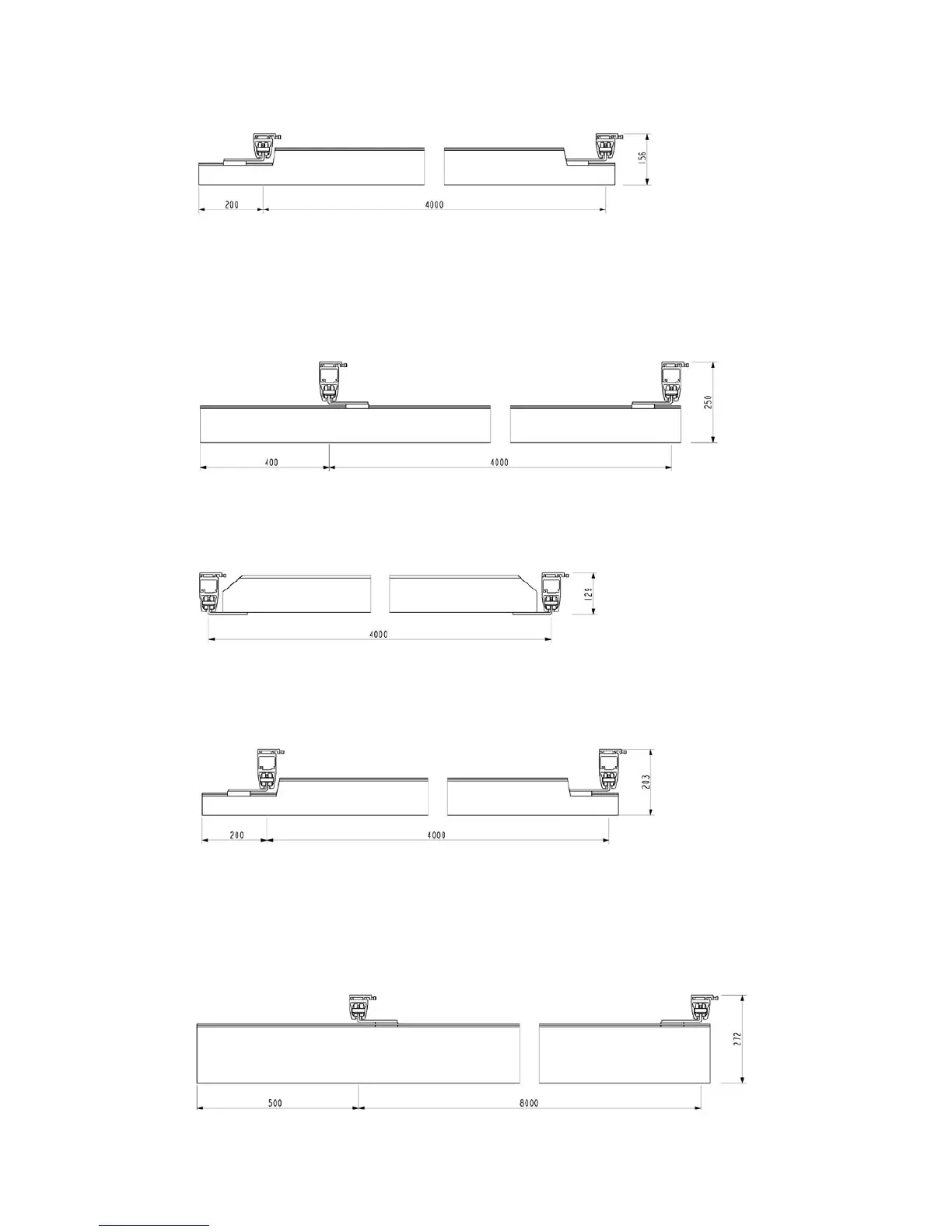

Partly between-hung traverse.
3.
Parallel rails:
M-Profile
Traverse rails:
M-Profile
Under-hung traverse.
Between-hung traverse.
Partly between-hung traverse.
4.
Parallel rails:
S-Profile
Traverse rails:
L-Profile
Under-hung traverse.
PLEASE OBSERVE!
Total length of the L-Profile is max. 8 m.
6
8
Table of Contents
Default Chapter
3
Table of Contents
3
1 Preface
5
2 General
5
Installation
5
Warranty
5
3 The Rail System EC-Track
6
Mono-Rail System, Straight Rails & Curves
6
Traverse System
6
Traverse Systems, Combinations
6
Room Transfer
9
Room Transfer with 2 Hoists
9
Room Transfer with Coupling
9
4 Rails, Brackets & Accessories
10
Rail Profiles S, M & L
10
Curves 30°, 45°, 60° & 90
10
Ceiling Brackets, Quick
10
Brackets for Traverse System and Side Hung Wall Brackets
10
Ceiling Brackets, Standard with or Without Lock
11
Shim's
11
Wall Brackets, End Hung
11
Wall Brackets, Side Hung
11
Insert Tubes
12
Wall Support Leg, Console and Wall Support Foot
12
End Stop
12
Trolleys
13
Hoist Trolley
13
Traverse Trolley
13
Room-To-Room Trolley
13
Rail End Plugs
13
Pendles, Adjustable
13
Track Switch, Manual
14
Transit Coupling
14
5 Installation Instructions
15
General
15
Milling of Keyhole
15
Ceiling Mounting System
16
Concrete Ceiling
16
Concrete Ceiling with Suspended Ceiling
18
Mounting with Pendling Brackets
18
Wooden Ceiling
21
Wall Installation, End Hung Rail
23
Rail Profile M & L
23
Wall Bracket, Side Hung
25
Curves
26
Rail Coupling
27
Rail Coupling for Profile M & L
27
Rail Coupling for Profile S
27
Wall Support Leg
28
Mounting Traverse System
29
Installation of Rail Switches
31
Installation of the Transit Coupling
32
Adjustment of Hole in the Wall/Door Opening
32
Installation of Transit Coupling
33
Installation and Connection of Control Button and Power Supply
34
Installation of Traverse System with Lock Fixture for Transit Coupling
35
Installation of a Mono-Rail Rail for a Coupling System
35
Mounting the Positioning Fixtures on Parallel Rail S-Profile and M/L Profiles
36
Mounting of Gantry with or Without Wheels
37
6 Inspection/Check of the Rail System
39
7 Technical Description of the Rail System EC-Track
39
The Rail System
39
Possible Installations
39
Special Solutions
39
Building Dimensions and Ceiling Height Requirements
40
Building Dimensions for Different Track Installations
40
Mono-Rail
40
Traverse Rail System
41
8 Technical Description of the Ceiling Hoist ROBIN
42
Mechanical Construction
42
Other manuals for Invacare Robin
Service Manual
228 pages
User Manual
32 pages
Manual
2 pages
4
Based on 1 rating
Ask a question
Give review
