INVENTOR Cool 8000btu User Manual

WORKING
PRINCIPLE
Under function of fan motor, indoor airflow changed into cooled air through
evaporator then blew out, while the indoor airflow changed into heated air though
condenser then blew out. There are 2 flues designed on structure of this unit:
heated air is discharged from rear air outlet vent on back air conditioner while
cooled air from front air outlet vent of the unit. After guide louver, gentle and steady
cooled airflow is produced to reach needed cooling effect.

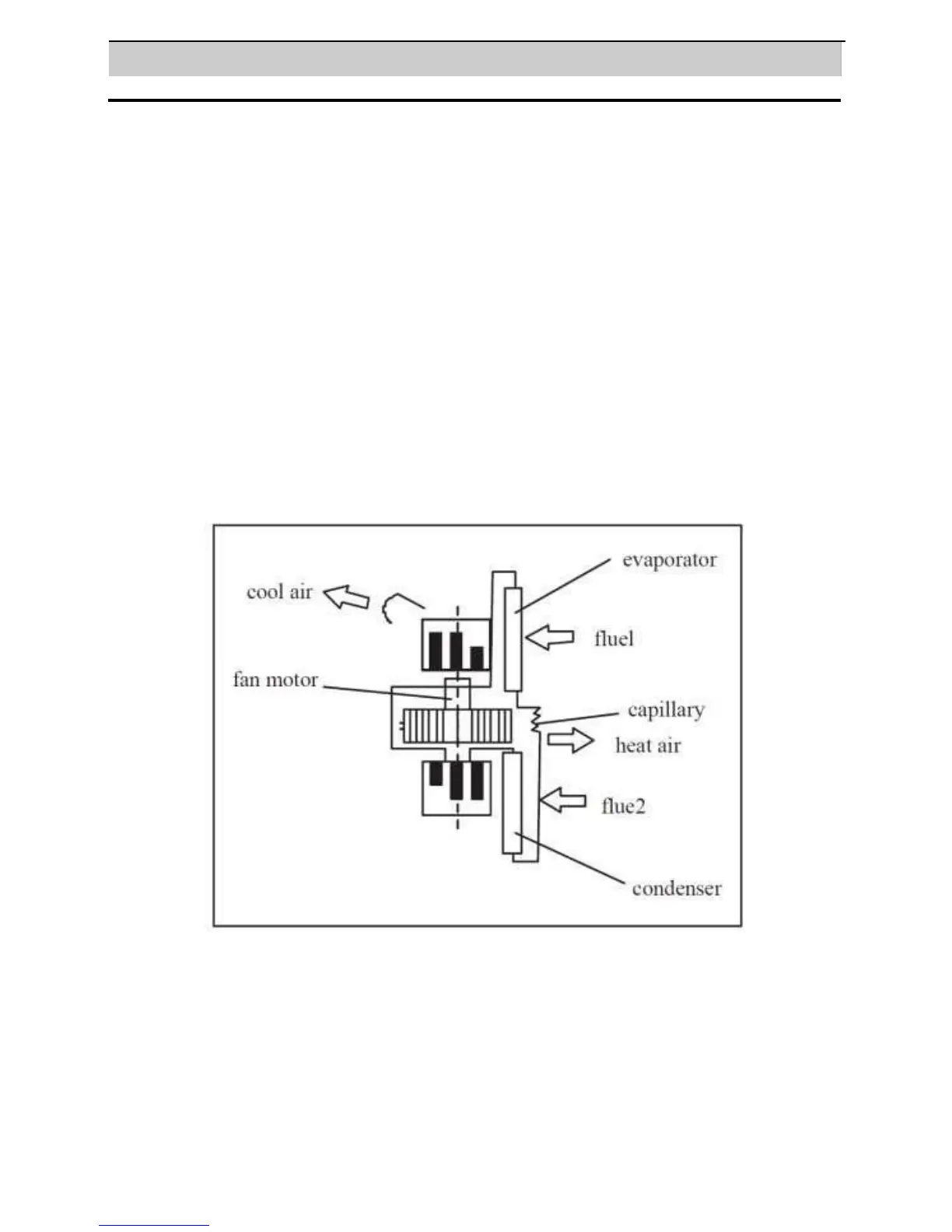

Working principle
3

INVENTOR Cool 8000btu Specifications

General

Model no.	Cool 8000
Refrigerant	R410A (460g)
Timer	1～24 hours
Cooling capacity	8000 BTU/hr 2345watts
Air volume (H/M/L)	3 350X300X250 m /h
Humidity removal capacity	0.75L/hour
Fan speed	3
Power/Ampere consumption for cooling	1130 W/ 4.6A
Power supply	220-240V~. 50Hz
Compressor	rotary
Exhaust pipe	Ø 142x1500mm
Noise Level	56/54/52 dB(A)
Working temperature	o Cooling: 16 ~ 30 C

Weight and Dimensions

Net Weight	24 kgs
Gross Weight	28 kgs
Net Dimension	300x800x355 mm (WxHxD)
Gross Dimension	355x850x565 mm (WxHxD)
