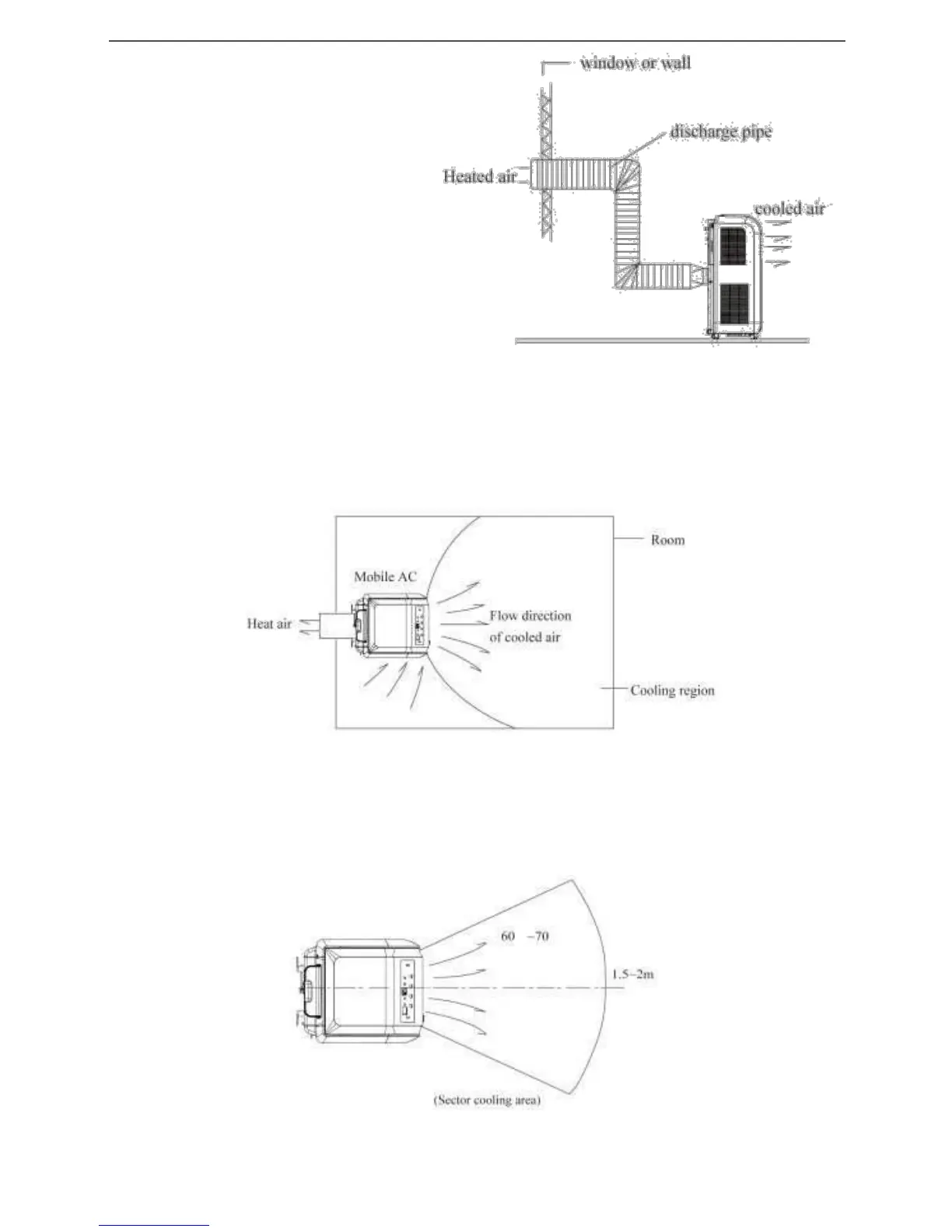

When only used as dehumidifier, remember
to take off heat discharge pipe from unit and
install it onto unit when the unit is used as
air conditioner. Since partial indoor air will
be heated
as heat air and discharged to outside by
discharge pipe after cycling then outdoor air
will enter to maintain balance air pressure,
thus the air conditioner will only lower
temperature of partial regional air of indoor
room instead of turning entire indoor air to a
lower temperature.
Usage Location
1. Where room area is smaller than 15m
2
, and wall (or building) has well heat insulation
effect. As shown in following figure, if unit is in shown location, the cooling effect will be
better.
2. If room area is larger than 20m
2
, for example workshop or factory, the unit can only offer
cooled air to partial area(as shown in following figure),and people in this area can enjoy
better cooling effect.
4

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the INVENTOR Cool 8000btu and is the answer not in the manual?

INVENTOR Cool 8000btu Specifications

General IconGeneral
Model no.Cool 8000
RefrigerantR410A (460g)
Timer1~24 hours
Cooling capacity8000 BTU/hr 2345watts
Air volume (H/M/L)3 350X300X250 m /h
Humidity removal capacity0.75L/hour
Fan speed3
Power/Ampere consumption for cooling1130 W/ 4.6A
Power supply220-240V~. 50Hz
Compressorrotary
Exhaust pipeØ 142x1500mm
Noise Level56/54/52 dB(A)
Working temperatureo Cooling: 16 ~ 30 C
Weight and Dimensions IconWeight and Dimensions
Net Weight24 kgs
Gross Weight28 kgs
Net Dimension300x800x355 mm (WxHxD)
Gross Dimension355x850x565 mm (WxHxD)
