INVT GD350-015G/018P-45-AS

Goodrive350 IP55 High-ingress Protection Series VFD Function parameter list
-226-
Function
code
Name
Description
Default
value
Modify
P25.07
HDI3 terminal
function
0
◎
P25.08
Input terminal
polarity of
expansion card
0x00–0x7F
0x00
○
P25.09
Virtual terminal
setup of
expansion card
0x00–0x7F (0: disable, 1: enable)
BIT0: S5 virtual terminal
BIT1: S6 virtual terminal
BIT2: S7 virtual terminal
BIT3: S8 virtual terminal
BIT4: S9 virtual terminal
BIT5: S10 virtual terminal
BIT6: HDI3 virtual terminal
0x00
◎
P25.10
HDI3 terminal
switch-on delay

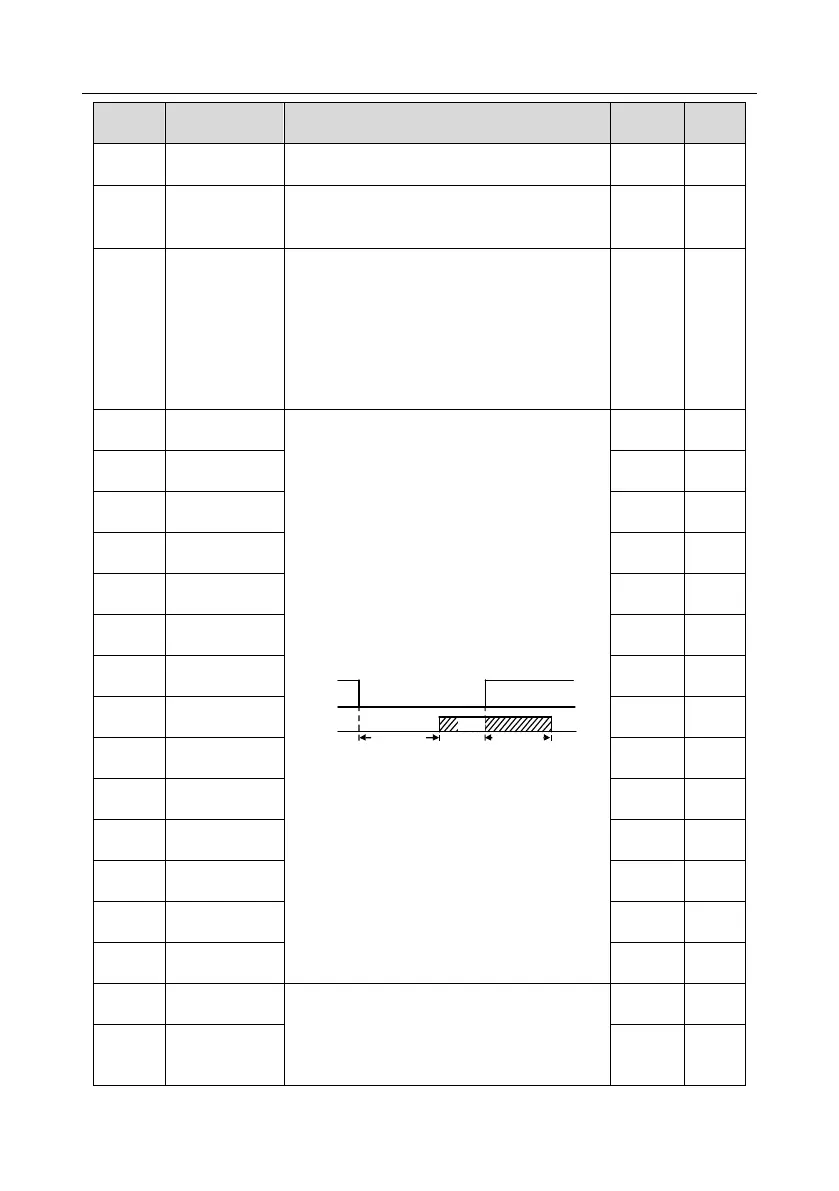

These function codes define corresponding
delay of the programmable input terminals
during level variation from switch-on to
switch-off.
Si electrical level
Si valid
invalid invalid
Switcn-on
delay
Switcn-off
delay
valid
Setting range: 0.000–50.000s
0.000s
○
P25.11
HDI3 terminal
switch-off delay
0.000s
○
P25.12
S5 terminal
switch-on delay
0.000s
○
P25.13
S5 switch-off
delay
0.000s
○
P25.14
S6 terminal
switch-on delay
0.000s
○
P25.15
S6 switch-off
delay
0.000s
○
P25.16
S7 terminal
switch-on delay
0.000s
○
P25.17
S7 switch-off
delay
0.000s
○
P25.18
S8 terminal
switch-on delay
0.000s
○
P25.19
S8 switch-off
delay
0.000s
○
P25.20
S9 terminal
switch-on delay
0.000s
○
P25.21
S9 switch-off
delay
0.000s
○
P25.22
S10 terminal
switch-on delay
0.000s
○
P25.23
S10 switch-off
delay
0.000s
○
P25.24
Lower limit value
of AI3
These function codes define the relation
between analog input voltage and
corresponding set value of analog input. When
the analog input voltage exceeds the range of
max./min. input, the max. input or min. input will
0.00V
○
P25.25
Corresponding
setting of lower
limit of AI3
0.0%
○
