INVT GD350-015G/018P-45-AS

Goodrive350 IP55 High-ingress Protection Series VFD Basic Operation Instructions
-38-

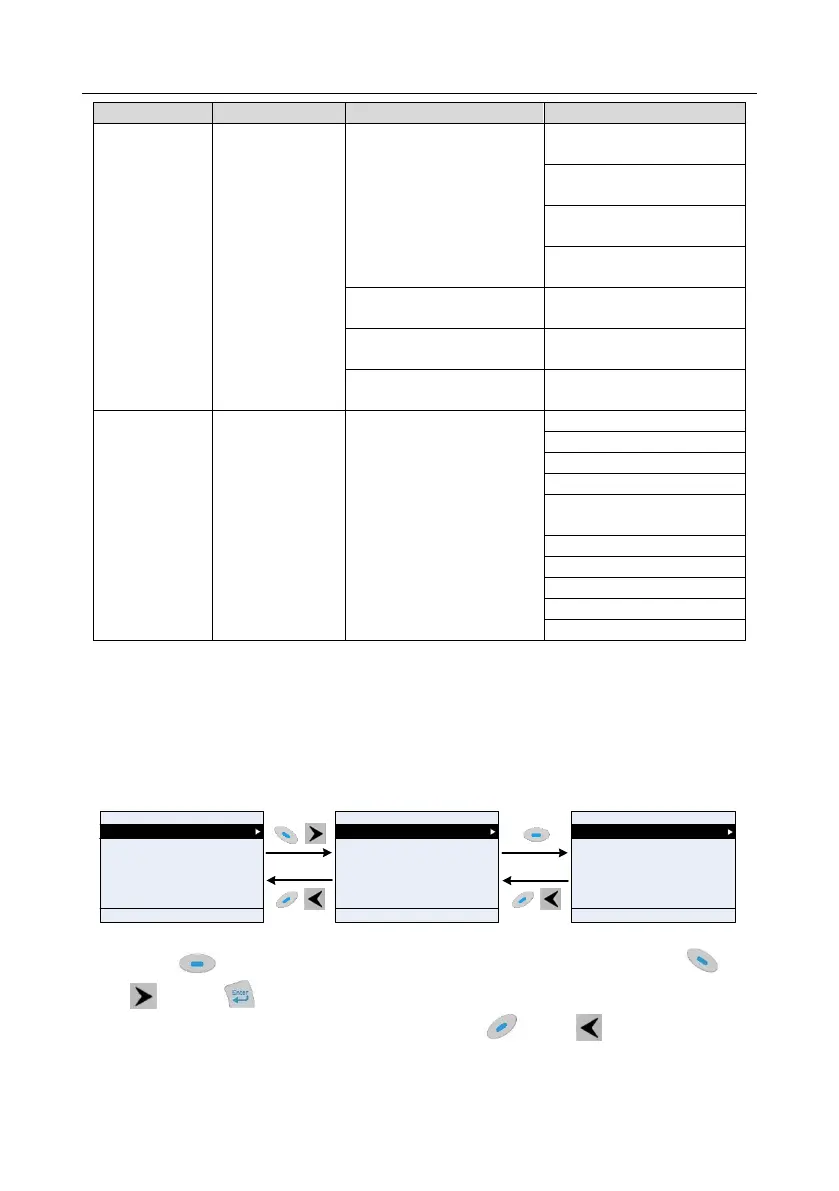

Level 1
Level 2
Level 3
Level 4
MemArea3: BACKUP03
Upload local func para to
keypad
Download all func para from
keypad
Download NonMotor func
para from keypad
Download motor func para
from keypad
Restore default (excl motor
para)
Sure to restore defaults (excl
motor para)?
Restore default (test mode)
Sure to restore default (test
mode)?
Restore default (incl motor
para)
Sure to restore default (incl
motor para)?
System settings
/
/
Language
Time/date
Backlight brightness
Backlight time
Enable power-on setup
wizard
Power-on setup wizard
Keypad programming
Fault time setting
Control board programming
Up/Down key sensitivity
5.4.2 Editing a parameter list
The parameters in the parameter list in stopped state can be added as needed (through the
menu of user defined home parameters), and the list can also be edited such as "Move up",
"Move down", "Delete from the list", and "Restore default". The edit function is shown in the
following.
Figure 5-10 List edit diagram 1
GD350
16:02:35
Place top
Move up
Delete from the list
16:02:35
Fwd
Local Ready
Stopped-state parameters
Running-state parameters
GD350
16:02:35
P17.00：Set Freq
P17.11：DC Bus Volt
P17.12：HDIB/A/S4/3/2/1
P17.13：RO2/RO1/HDO/Y1
P17.26：Current Oper Time
P17.15：Motor Trq Ref
GD350
Fwd
Local Ready
Fwd
Local Ready
Move down
Restore default
Back Edit OKBack Home Sele
Back Home Sele
Press key to enter edit interface, select the operation needed, and press key,
key or key to confirm the edit operation and return to the previous menu
(parameter list), the returned list is the list edited. If key or key is pressed in edit
interface without any selection, it will return to the previous menu (parameter list remain
unchanged).
