INVT GD350-015G/018P-45-AS

Goodrive350 IP55 High-ingress Protection Series VFD Expansion cards
-314-
Indicator
Name
Function
LED5
Running indicator
On: The communication card is running.
Off: A fault occurs. Check whether the reset pin of the
communication card and the power supply are properly
connected.
Blinks: The communication card is in the pre-operation
state.
Blinks once: The communication card is in the stopped
state.
LED6
Error indicator
On: The CAN controller bus is off or a fault occurs on the
VFD.
Off: The communication card is in the working state.
Blinks: The address setting is incorrect.
Blinks once: A received frame is missed or an error occurs
during frame receiving.
For details about the operation, see the Goodrive350 Series VFD Communication Extension
Card Operation Manual.

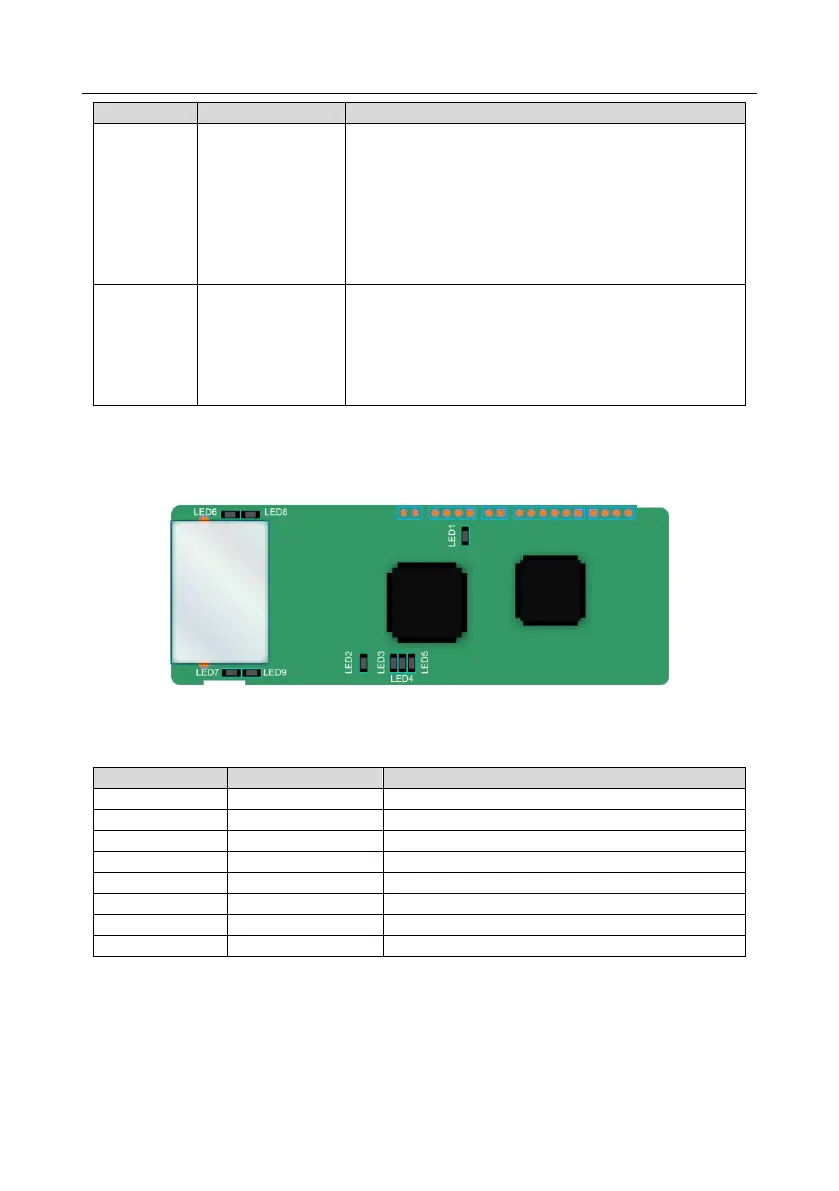

A.6.5 PROFINET communication card (EC- TX509)
The terminal CN2 adopts a standard RJ45 interface, where CN2 is the dual RJ45 interface,
and these two RJ45 interfaces are not distinguished from each other and can be
interchangeably inserted. They are arranged as follows:
Pin
Name
Description
1
n/c
Not connected
2
n/c
Not connected
3
RX-
Receive Data-
4
n/c
Not connected
5
n/c
Not connected
6
RX+
Receive Data+
7
TX-
Transmit Data-
8
TX+
Transmit Data+
Definition of the state indicator
The PROFINET communication card has 9 indicators, of which LED1 is the power indicator,
LED2–5 are the communication state indicator of the communication card, and LED6–9 are
the state indicators of the network port.
