Environment
Condition
 Away from oil mist, corrosive gases and combustible gases;
 Ensure foreign object like metal powder will not fall into the VFD (do not install
the VFD onto combustible object like wood);
 Away from radioactive substance and combustible objects;
 Away from corrosive liquid;
 Low salt content;
 No direct sunlight
Altitude
 Below 1000m;
 When the installation site altitude exceeds 1000m, derate 1% for every
increase of 100m; when the installation site altitude exceeds 3000m, consult
the local INVT dealer or office.
Vibration
Up to 5.8m/s
2
(0.6g)
Installation
direction
Install the VFD vertically to ensure good heat dissipation effect.
Note: VFDs must be installed in ventilated environments free of corrosive gases and
conductive dust.
4.2.2 Installation direction
The VFD can be installed on the wall or in a cabinet.
The VFD must be installed vertically. Check the installation position according to following
requirements. See Appendix C "Dimension drawings" for detailed outline dimensions.

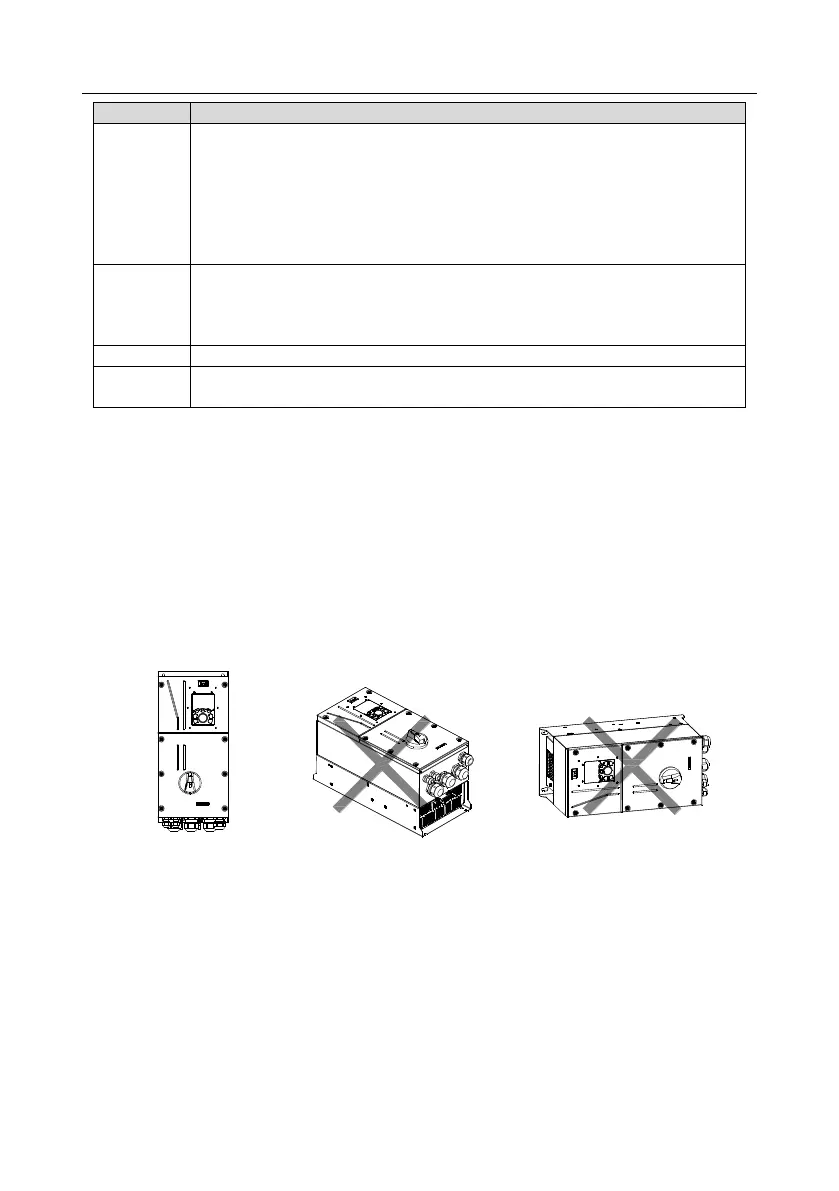

Figure 4-1 Installation direction of the VFD
NG
NG
OK
b.Horizontal installation
a. Vertical installation
c.Transverse installation
