INVT GD350-015G/018P-45-AS

Goodrive350 IP55 High-ingress Protection Series VFD Expansion cards
-317-
LED
Color
State
Description
LED3
Red
On
Failed to set up I/O between the card and PLC.
Blinking (1Hz)
Incorrect PLC configuration.
Blinking (2Hz)
The card failed to send data to the PLC.
Blinking (4Hz)
The connection between the card and PLC timed out.
Off
No fault.
LED4
Red
On
3.3V power indicator.
Net port
indicator
Yellow
On
Link indicator, indicating successful Ethernet
connection.
Off
Link indicator, indicating Ethernet connection not
established.
Net port
indicator
Green
On
ACK indicator, indicating data interchange being
performed.
Off
ACK indicator, indicating data interchange not be
performed.
Electrical wiring
The EtherNet/IP communication card provides standard RJ45 ports and supports the linear,
star, and ring topologies. The following three figures show the electrical wiring diagrams.
Use CAT5, CAT5e, and CAT6 network cables for electrical wiring. When the communication
distance is greater than 50 meters, use high-quality network cables that meet the high-quality
standards.

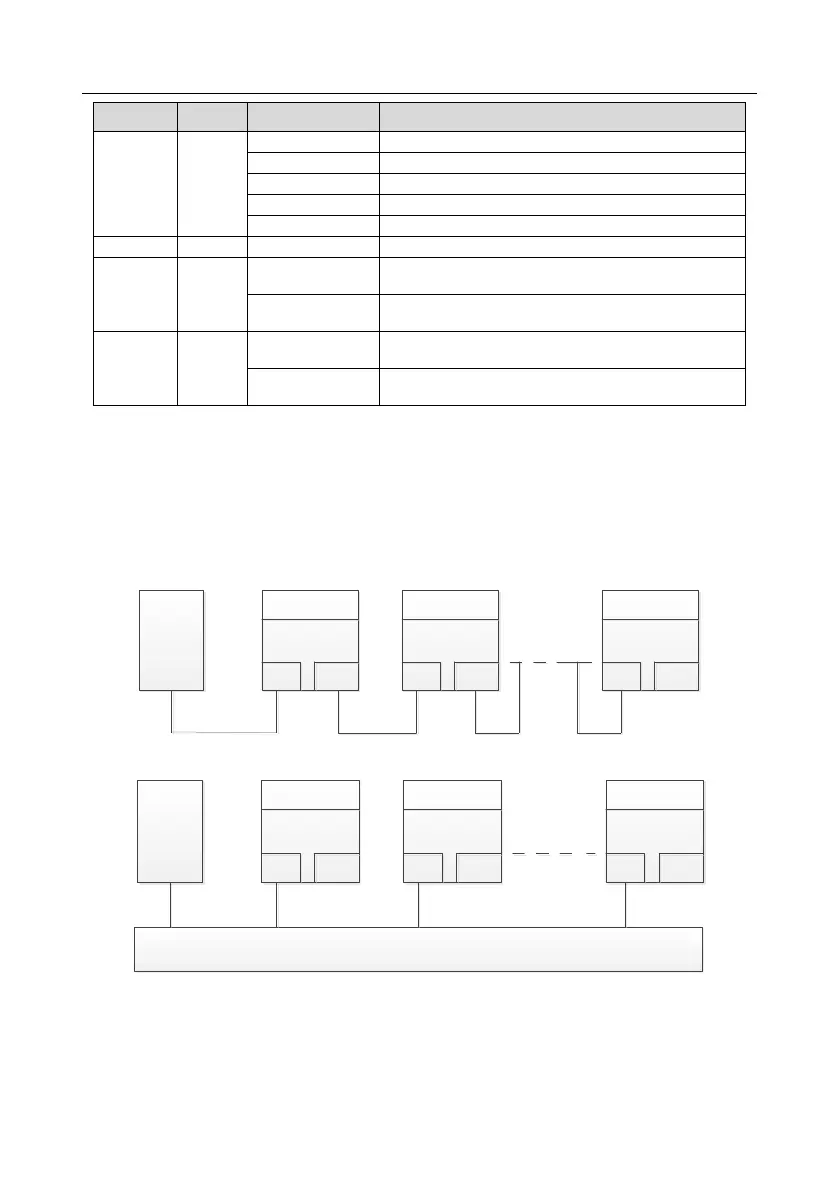

Figure A-7 Electrical wiring diagram for a linear topology
Master
(PLC)
Slave 1
CN2 CN1
Slave 2
CN2 CN1
Slave n
CN2 CN1
Figure A-8 Electrical wiring diagram for a star topology
Master
(PLC)
Slave 1
CN2 CN1
Slave 2
CN2 CN1
Slave n
CN2 CN1
Switch
Note: Ethernet switches must be available when the star topology is used.
